Airborne Zeppelin MK IV 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

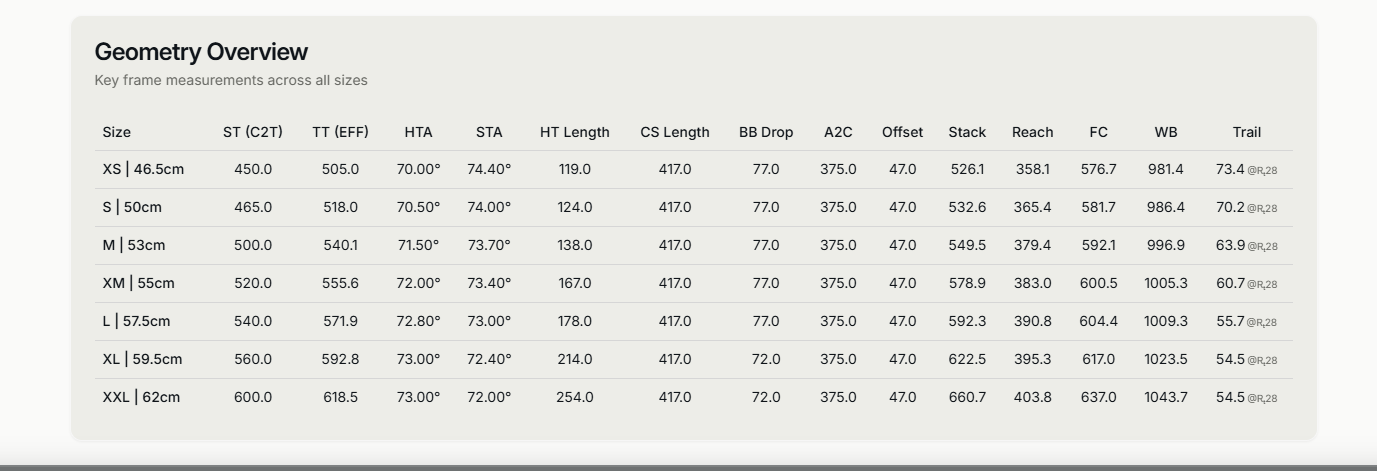

Airborne Zeppelin MK IV 2026 geometry chart

Source: Manufacturer source URL not recorded

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
L 592 mm published391 mm published72.8 ° derived73.0 ° derived572 mm derived417 mm derived1009 mm published604 mm published77 mm derived55.7 mm published47 mm published green
All 5 consistency checks passed
M 550 mm published379 mm published71.5 ° derived73.7 ° derived540 mm derived417 mm derived997 mm published592 mm published77 mm derived63.9 mm published47 mm published green
All 5 consistency checks passed
S 533 mm published365 mm published70.5 ° derived74.0 ° derived518 mm derived417 mm derived986 mm published582 mm published77 mm derived70.2 mm published47 mm published green
All 5 consistency checks passed
XL 623 mm published395 mm published73.0 ° derived72.4 ° derived593 mm derived417 mm derived1024 mm published617 mm published72 mm derived54.5 mm published47 mm published green
All 5 consistency checks passed
XM 579 mm published383 mm published72.0 ° derived73.4 ° derived556 mm derived417 mm derived1005 mm published601 mm published77 mm derived60.7 mm published47 mm published green
All 5 consistency checks passed
XS 526 mm published358 mm published70.0 ° derived74.4 ° derived505 mm derived417 mm derived981 mm published577 mm published77 mm derived73.4 mm published47 mm published green
All 5 consistency checks passed
XXL 661 mm published404 mm published73.0 ° derived72.0 ° derived619 mm derived417 mm derived1044 mm published637 mm published72 mm derived54.5 mm published47 mm published green
All 5 consistency checks passed

Audit context

Overall consistency: green. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Airborne Zeppelin MK IV's published geometry reconciles with the RideDNA engine's forward-model calculations within ±1mm engineering tolerance across all seven sizes. Stack, reach, wheelbase, front center, and trail all show deltas ≤0.1mm, confirming internal consistency among the manufacturer's published values. The RideDNA Geometry Engine reconciliation checks corroborate this result, with all five back-calculation checks passing green across the entire size run.
