Bianchi Infinito 2026

Compare size-specific bike geometry, including reach, stack, angles, wheelbase and the measurements that influence fit and handling.

Bianchi › Infinito › Standard › Infinito

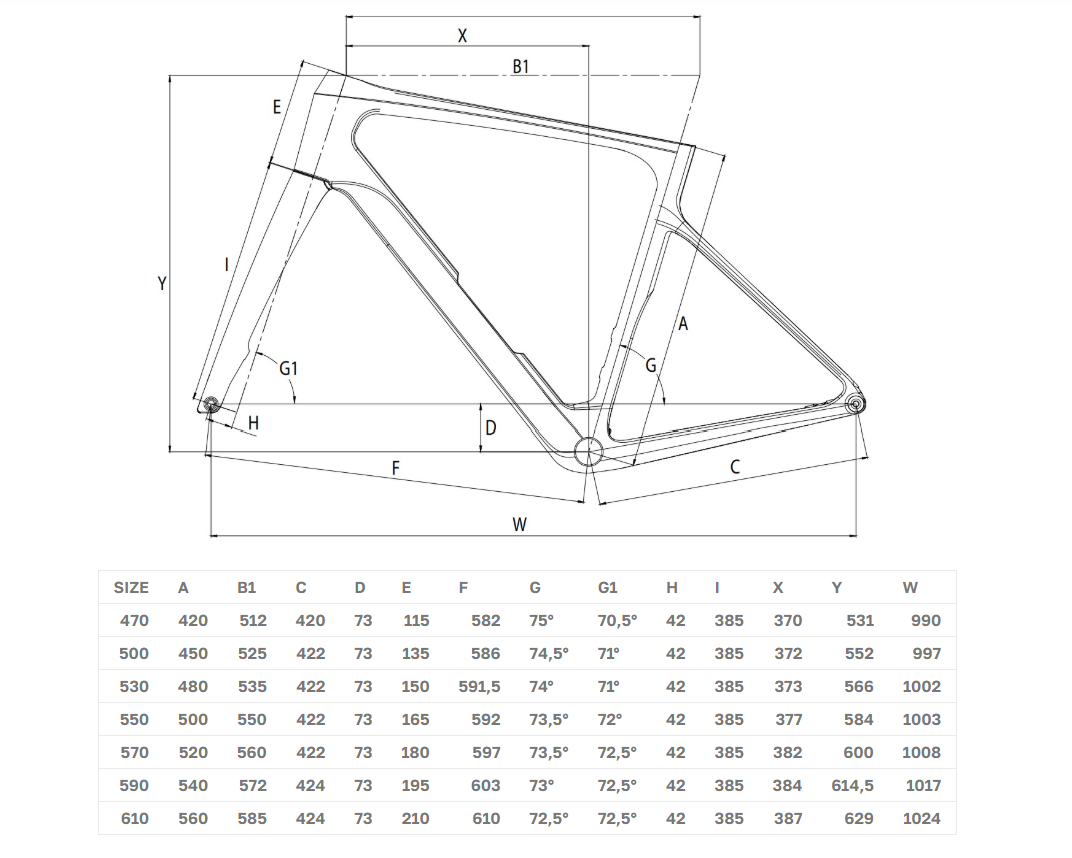

Infinito geometry measurements

Choose the recorded size and configuration. Geometry figures can change by size; RideDNA does not collapse those values into one misleading answer.

What is the reach of the Bianchi Infinito 2026?

Reach is the horizontal distance from the bottom bracket to the top of the head tube. Also searched as frame reach.

Configuration	Size	Reach	Source
Infinito geometry	550	377.3 mm	RideDNA-derived
Infinito geometry	470	369.9 mm	RideDNA-derived
Infinito geometry	500	372.2 mm	RideDNA-derived
Infinito geometry	530	372.9 mm	RideDNA-derived
Infinito geometry	570	382.5 mm	RideDNA-derived
Infinito geometry	610	387 mm	Manufacturer-published
Infinito geometry	590	384.4 mm	RideDNA-derived

What is the stack of the Bianchi Infinito 2026?

Stack is the vertical distance from the bottom bracket to the top of the head tube. Also searched as frame stack.

Configuration	Size	Stack	Source
Infinito geometry	550	583.1 mm	RideDNA-derived
Infinito geometry	470	530.3 mm	RideDNA-derived
Infinito geometry	500	551 mm	RideDNA-derived
Infinito geometry	530	565.2 mm	RideDNA-derived
Infinito geometry	570	599.2 mm	RideDNA-derived
Infinito geometry	610	627.8 mm	RideDNA-derived
Infinito geometry	590	613.5 mm	RideDNA-derived

What is the effective top tube of the Bianchi Infinito 2026?

Effective top tube is the horizontal distance between the head-tube and seat-tube centerlines. Also searched as ETT, virtual top tube, horizontal top tube.

Configuration	Size	Effective top tube	Source
Infinito geometry	550	550 mm	Recorded geometry
Infinito geometry	470	512 mm	Recorded geometry
Infinito geometry	500	525 mm	Recorded geometry
Infinito geometry	530	535 mm	Recorded geometry
Infinito geometry	570	560 mm	Recorded geometry
Infinito geometry	610	585 mm	Recorded geometry
Infinito geometry	590	572 mm	Recorded geometry

What is the head tube angle of the Bianchi Infinito 2026?

Head tube angle describes the steering-axis angle relative to the ground. Also searched as HTA, head angle, steering angle.

Configuration	Size	Head tube angle	Source
Infinito geometry	550	72 °	Recorded geometry
Infinito geometry	470	70.5 °	Recorded geometry
Infinito geometry	500	71 °	Recorded geometry
Infinito geometry	530	71 °	Recorded geometry
Infinito geometry	570	72.5 °	Recorded geometry
Infinito geometry	610	72.5 °	Recorded geometry
Infinito geometry	590	72.5 °	Recorded geometry

What is the seat tube angle of the Bianchi Infinito 2026?

Seat tube angle describes the seat-tube angle relative to the ground. Also searched as STA, seat angle, effective seat angle.

Configuration	Size	Seat tube angle	Source
Infinito geometry	550	73.5 °	Recorded geometry
Infinito geometry	470	75 °	Recorded geometry
Infinito geometry	500	74.5 °	Recorded geometry
Infinito geometry	530	74 °	Recorded geometry
Infinito geometry	570	73.5 °	Recorded geometry
Infinito geometry	610	72.5 °	Recorded geometry
Infinito geometry	590	73 °	Recorded geometry

What is the trail of the Bianchi Infinito 2026?

Trail is the ground distance between the steering-axis intercept and the front tire contact point. Also searched as fork trail, mechanical trail.

Configuration	Size	Trail	Source
Infinito geometry	550	68.3 mm	RideDNA-derived
Infinito geometry	470	78 mm	RideDNA-derived
Infinito geometry	500	74.7 mm	RideDNA-derived
Infinito geometry	530	74.7 mm	RideDNA-derived
Infinito geometry	570	65.1 mm	RideDNA-derived
Infinito geometry	610	65.1 mm	RideDNA-derived
Infinito geometry	590	65.1 mm	RideDNA-derived

What is the wheelbase of the Bianchi Infinito 2026?

Wheelbase is the distance between the front and rear wheel axles. Also searched as axle-to-axle length.

Configuration	Size	Wheelbase	Source
Infinito geometry	550	1002.8 mm	RideDNA-derived
Infinito geometry	470	990 mm	Manufacturer-published
Infinito geometry	500	996.8 mm	RideDNA-derived
Infinito geometry	530	1002.5 mm	RideDNA-derived
Infinito geometry	570	1008.1 mm	RideDNA-derived
Infinito geometry	610	1023.7 mm	RideDNA-derived
Infinito geometry	590	1016.6 mm	RideDNA-derived

What is the chainstay length of the Bianchi Infinito 2026?

Chainstay length, also called rear center, is the distance from the bottom bracket to the rear axle. Also searched as Chainstay, rear center, rear centre.

Configuration	Size	Chainstay length	Source
Infinito geometry	550	422 mm	Recorded geometry
Infinito geometry	470	420 mm	Recorded geometry
Infinito geometry	500	422 mm	Recorded geometry
Infinito geometry	530	422 mm	Recorded geometry
Infinito geometry	570	422 mm	Recorded geometry
Infinito geometry	610	424 mm	Recorded geometry
Infinito geometry	590	424 mm	Recorded geometry

What is the bottom bracket drop of the Bianchi Infinito 2026?

Bottom bracket drop is the vertical distance from the wheel-axle line down to the bottom bracket. Also searched as BB drop.

Configuration	Size	Bottom bracket drop	Source
Infinito geometry	550	73 mm	Recorded geometry
Infinito geometry	470	73 mm	Recorded geometry
Infinito geometry	500	73 mm	Recorded geometry
Infinito geometry	530	73 mm	Recorded geometry
Infinito geometry	570	73 mm	Recorded geometry
Infinito geometry	610	73 mm	Recorded geometry
Infinito geometry	590	73 mm	Recorded geometry

What is the bottom bracket height of the Bianchi Infinito 2026?

Bottom bracket height is the vertical distance from the ground to the bottom bracket. Also searched as BB height.

Configuration	Size	Bottom bracket height	Source
Infinito geometry	550	273 mm	RideDNA-derived
Infinito geometry	470	273 mm	RideDNA-derived
Infinito geometry	500	273 mm	RideDNA-derived
Infinito geometry	530	273 mm	RideDNA-derived
Infinito geometry	570	273 mm	RideDNA-derived
Infinito geometry	610	273 mm	RideDNA-derived
Infinito geometry	590	273 mm	RideDNA-derived

What is the front center of the Bianchi Infinito 2026?

Front center is the distance from the bottom bracket to the front wheel axle. Also searched as front centre.

Configuration	Size	Front center	Source
Infinito geometry	550	591.7 mm	RideDNA-derived
Infinito geometry	470	581 mm	RideDNA-derived
Infinito geometry	500	585.8 mm	RideDNA-derived
Infinito geometry	530	591.4 mm	RideDNA-derived
Infinito geometry	570	596.9 mm	RideDNA-derived
Infinito geometry	610	610.4 mm	RideDNA-derived
Infinito geometry	590	603.3 mm	RideDNA-derived

What is the fork offset of the Bianchi Infinito 2026?

Fork offset is the perpendicular distance between the steering axis and the front axle. Also searched as fork rake, rake.

Configuration	Size	Fork offset	Source
Infinito geometry	550	42 mm	Manufacturer-published
Infinito geometry	470	42 mm	Manufacturer-published
Infinito geometry	500	42 mm	Manufacturer-published
Infinito geometry	530	42 mm	Manufacturer-published
Infinito geometry	570	42 mm	Manufacturer-published
Infinito geometry	610	42 mm	Manufacturer-published
Infinito geometry	590	42 mm	Manufacturer-published

What is the head tube length of the Bianchi Infinito 2026?

Head tube length is the measured length of the frame's head tube. Also searched as Head tube, head tube.

Configuration	Size	Head tube length	Source
Infinito geometry	550	165 mm	Recorded geometry
Infinito geometry	470	115 mm	Recorded geometry
Infinito geometry	500	135 mm	Recorded geometry
Infinito geometry	530	150 mm	Recorded geometry
Infinito geometry	570	180 mm	Recorded geometry
Infinito geometry	610	210 mm	Recorded geometry
Infinito geometry	590	195 mm	Recorded geometry

What is the seat tube length of the Bianchi Infinito 2026?

Seat tube length is the recorded length of the frame's seat tube; measurement conventions can differ by manufacturer. Also searched as Seat tube, seat tube, frame size.

Configuration	Size	Seat tube length	Source
Infinito geometry	550	500 mm	Recorded geometry
Infinito geometry	470	420 mm	Recorded geometry
Infinito geometry	500	450 mm	Recorded geometry
Infinito geometry	530	480 mm	Recorded geometry
Infinito geometry	570	520 mm	Recorded geometry
Infinito geometry	610	560 mm	Recorded geometry
Infinito geometry	590	540 mm	Recorded geometry

What is the standover height of the Bianchi Infinito 2026?

Standover height is the ground-to-top-tube height at the manufacturer's stated measurement point. Also searched as Standover, stand over height, standover clearance.

Configuration	Size	Standover height	Source
Infinito geometry	550	777.9 mm	RideDNA-derived
Infinito geometry	470	714.4 mm	RideDNA-derived
Infinito geometry	500	738.8 mm	RideDNA-derived
Infinito geometry	530	759.9 mm	RideDNA-derived
Infinito geometry	570	795.5 mm	RideDNA-derived
Infinito geometry	610	827.7 mm	RideDNA-derived
Infinito geometry	590	811.7 mm	RideDNA-derived

What is the fork length of the Bianchi Infinito 2026?

Fork length is the axle-to-crown distance recorded for the fork. Also searched as axle to crown, A2C.

Configuration	Size	Fork length	Source
Infinito geometry	550	385 mm	Manufacturer-published
Infinito geometry	470	385 mm	Manufacturer-published
Infinito geometry	500	385 mm	Manufacturer-published
Infinito geometry	530	385 mm	Manufacturer-published
Infinito geometry	570	385 mm	Manufacturer-published
Infinito geometry	610	385 mm	Manufacturer-published
Infinito geometry	590	385 mm	Manufacturer-published

What is the wheel flop of the Bianchi Infinito 2026?

Wheel flop is a calculated steering-geometry value based on trail and head tube angle. Also searched as flop.

Configuration	Size	Wheel flop	Source
Infinito geometry	550	20.1 mm	RideDNA-derived
Infinito geometry	470	24.5 mm	RideDNA-derived
Infinito geometry	500	23 mm	RideDNA-derived
Infinito geometry	530	23 mm	RideDNA-derived
Infinito geometry	570	18.7 mm	RideDNA-derived
Infinito geometry	610	18.7 mm	RideDNA-derived
Infinito geometry	590	18.7 mm	RideDNA-derived

Geometry

Available sizes: 550, 470, 500, 530, 570, 610, 590.

Infinito geometry

Jump to size: 470 · 500 · 530 · 550 · 570 · 590 · 610

Infinito geometry geometry by size
Size	Reach	Stack	ETT	HTA	STA	Trail	Wheelbase	Chainstay	BB drop	BB height	Front center	Fork offset	Head tube	Seat tube	Standover	Fork length	Wheel flop	Max tire
470	369.9 mm^*	530.3 mm^*	512 mm^‡	70.5 °^‡	75 °^‡	78 mm^*†	990 mm	420 mm^‡	73 mm^‡†	273 mm^*†	581 mm^*	42 mm	115 mm^‡	420 mm^‡	714.4 mm^*†	385 mm	24.5 mm^*†	†
500	372.2 mm^*	551 mm^*	525 mm^‡	71 °^‡	74.5 °^‡	74.7 mm^*†	996.8 mm^*	422 mm^‡	73 mm^‡†	273 mm^*†	585.8 mm^*	42 mm	135 mm^‡	450 mm^‡	738.8 mm^*†	385 mm	23 mm^*†	†
530	372.9 mm^*	565.2 mm^*	535 mm^‡	71 °^‡	74 °^‡	74.7 mm^*†	1002.5 mm^*	422 mm^‡	73 mm^‡†	273 mm^*†	591.4 mm^*	42 mm	150 mm^‡	480 mm^‡	759.9 mm^*†	385 mm	23 mm^*†	†
550	377.3 mm^*	583.1 mm^*	550 mm^‡	72 °^‡	73.5 °^‡	68.3 mm^*†	1002.8 mm^*	422 mm^‡	73 mm^‡†	273 mm^*†	591.7 mm^*	42 mm	165 mm^‡	500 mm^‡	777.9 mm^*†	385 mm	20.1 mm^*†	†
570	382.5 mm^*	599.2 mm^*	560 mm^‡	72.5 °^‡	73.5 °^‡	65.1 mm^*†	1008.1 mm^*	422 mm^‡	73 mm^‡†	273 mm^*†	596.9 mm^*	42 mm	180 mm^‡	520 mm^‡	795.5 mm^*†	385 mm	18.7 mm^*†	†
590	384.4 mm^*	613.5 mm^*	572 mm^‡	72.5 °^‡	73 °^‡	65.1 mm^*†	1016.6 mm^*	424 mm^‡	73 mm^‡†	273 mm^*†	603.3 mm^*	42 mm	195 mm^‡	540 mm^‡	811.7 mm^*†	385 mm	18.7 mm^*†	†
610	387 mm	627.8 mm^*	585 mm^‡	72.5 °^‡	72.5 °^‡	65.1 mm^*†	1023.7 mm^*	424 mm^‡	73 mm^‡†	273 mm^*†	610.4 mm^*	42 mm	210 mm^‡	560 mm^‡	827.7 mm^*†	385 mm	18.7 mm^*†	†

Length measurements are in millimeters; HTA and STA are in degrees. ETT means effective top tube. Values prioritize RideDNA calculations. * RideDNA calculated (including corrections where published values differ). Unmarked values are manufacturer-published; matching independently calculated values are identified in their source notes. † Manufacturer did not publish this dimension; † alone means no reliable value is available. ‡ Staff reference or source not confirmed; see the source note. Open Geometry Audit for the original published values, calculated geometry, and deltas.

Size-to-size changes

Differences are calculated from the recorded values; they are not fit recommendations.

Infinito geometry: 470 → 500 — Reach +2.3 mm, Stack +20.7 mm, ETT +13 mm, HTA +0.5 °, STA -0.5 °, Trail -3.3 mm, Wheelbase +6.8 mm, Chainstay +2 mm, BB drop +0 mm, BB height +0 mm, Front center +4.8 mm, Fork offset +0 mm, Head tube +20 mm, Seat tube +30 mm, Standover +24.4 mm, Fork length +0 mm, Wheel flop -1.5 mm
Infinito geometry: 500 → 530 — Reach +0.7 mm, Stack +14.2 mm, ETT +10 mm, HTA +0 °, STA -0.5 °, Trail +0 mm, Wheelbase +5.7 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +5.6 mm, Fork offset +0 mm, Head tube +15 mm, Seat tube +30 mm, Standover +21.1 mm, Fork length +0 mm, Wheel flop +0 mm
Infinito geometry: 530 → 550 — Reach +4.4 mm, Stack +17.9 mm, ETT +15 mm, HTA +1 °, STA -0.5 °, Trail -6.4 mm, Wheelbase +0.3 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +0.3 mm, Fork offset +0 mm, Head tube +15 mm, Seat tube +20 mm, Standover +18 mm, Fork length +0 mm, Wheel flop -2.9 mm
Infinito geometry: 550 → 570 — Reach +5.2 mm, Stack +16.1 mm, ETT +10 mm, HTA +0.5 °, STA +0 °, Trail -3.2 mm, Wheelbase +5.3 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +5.2 mm, Fork offset +0 mm, Head tube +15 mm, Seat tube +20 mm, Standover +17.6 mm, Fork length +0 mm, Wheel flop -1.4 mm
Infinito geometry: 570 → 590 — Reach +1.9 mm, Stack +14.3 mm, ETT +12 mm, HTA +0 °, STA -0.5 °, Trail +0 mm, Wheelbase +8.5 mm, Chainstay +2 mm, BB drop +0 mm, BB height +0 mm, Front center +6.4 mm, Fork offset +0 mm, Head tube +15 mm, Seat tube +20 mm, Standover +16.2 mm, Fork length +0 mm, Wheel flop +0 mm
Infinito geometry: 590 → 610 — Reach +2.6 mm, Stack +14.3 mm, ETT +13 mm, HTA +0 °, STA -0.5 °, Trail +0 mm, Wheelbase +7.1 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +7.1 mm, Fork offset +0 mm, Head tube +15 mm, Seat tube +20 mm, Standover +16 mm, Fork length +0 mm, Wheel flop +0 mm

RideDNA-derived values

These deterministic calculations use the recorded inputs above. They are separate from recorded facts and are not fit recommendations.

Infinito geometry size 550 stack Reach Ratio: 1.55
Infinito geometry size 470 stack Reach Ratio: 1.43
Infinito geometry size 500 stack Reach Ratio: 1.48
Infinito geometry size 530 stack Reach Ratio: 1.52
Infinito geometry size 570 stack Reach Ratio: 1.57
Infinito geometry size 610 stack Reach Ratio: 1.62
Infinito geometry size 590 stack Reach Ratio: 1.6
