bike geometry

Bianchi Sprint 2026

Compare size-specific bike geometry, including reach, stack, angles, wheelbase and the measurements that influence fit and handling.

Bianchi › Sprint › Standard › Sprint

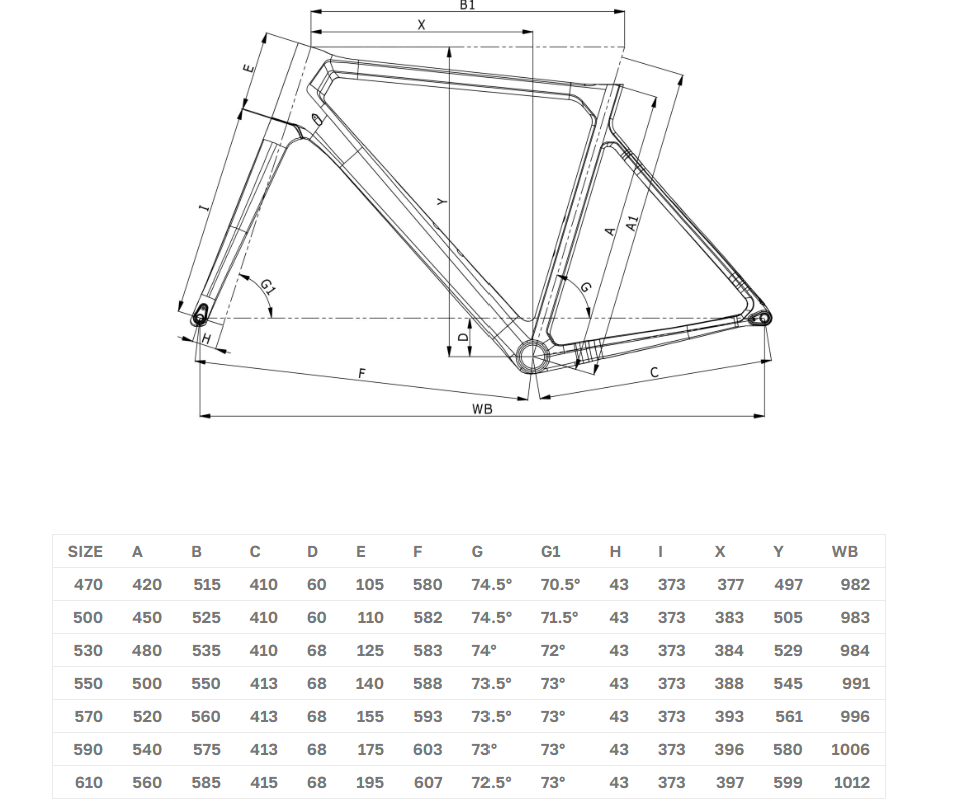

Sprint geometry measurements

Choose the recorded size and configuration. Geometry figures can change by size; RideDNA does not collapse those values into one misleading answer.

What is the reach of the Bianchi Sprint 2026?

Reach is the horizontal distance from the bottom bracket to the top of the head tube. Also searched as frame reach.

Configuration	Size	Reach	Source
Sprint geometry	500	385.1 mm	RideDNA-derived
Sprint geometry	610	396.3 mm	RideDNA-derived
Sprint geometry	550	388.3 mm	RideDNA-derived
Sprint geometry	530	383.5 mm	RideDNA-derived
Sprint geometry	470	377.4 mm	RideDNA-derived
Sprint geometry	570	394 mm	RideDNA-derived
Sprint geometry	590	397.8 mm	RideDNA-derived

What is the stack of the Bianchi Sprint 2026?

Stack is the vertical distance from the bottom bracket to the top of the head tube. Also searched as frame stack.

Configuration	Size	Stack	Source
Sprint geometry	500	504.4 mm	RideDNA-derived
Sprint geometry	610	598.6 mm	RideDNA-derived
Sprint geometry	550	546 mm	RideDNA-derived
Sprint geometry	530	528.3 mm	RideDNA-derived
Sprint geometry	470	496.2 mm	RideDNA-derived
Sprint geometry	570	560.4 mm	RideDNA-derived
Sprint geometry	590	579.5 mm	RideDNA-derived

What is the effective top tube of the Bianchi Sprint 2026?

Effective top tube is the horizontal distance between the head-tube and seat-tube centerlines. Also searched as ETT, virtual top tube, horizontal top tube.

Configuration	Size	Effective top tube	Source
Sprint geometry	500	525 mm	Recorded geometry
Sprint geometry	610	585 mm	Recorded geometry
Sprint geometry	550	550 mm	Recorded geometry
Sprint geometry	530	535 mm	Recorded geometry
Sprint geometry	470	515 mm	Recorded geometry
Sprint geometry	570	560 mm	Recorded geometry
Sprint geometry	590	575 mm	Recorded geometry

What is the head tube angle of the Bianchi Sprint 2026?

Head tube angle describes the steering-axis angle relative to the ground. Also searched as HTA, head angle, steering angle.

Configuration	Size	Head tube angle	Source
Sprint geometry	500	71.5 °	Recorded geometry
Sprint geometry	610	73 °	Recorded geometry
Sprint geometry	550	73 °	Recorded geometry
Sprint geometry	530	72 °	Recorded geometry
Sprint geometry	470	70.5 °	Recorded geometry
Sprint geometry	570	73 °	Recorded geometry
Sprint geometry	590	73 °	Recorded geometry

What is the seat tube angle of the Bianchi Sprint 2026?

Seat tube angle describes the seat-tube angle relative to the ground. Also searched as STA, seat angle, effective seat angle.

Configuration	Size	Seat tube angle	Source
Sprint geometry	500	74.5 °	Recorded geometry
Sprint geometry	610	72.5 °	Recorded geometry
Sprint geometry	550	73.5 °	Recorded geometry
Sprint geometry	530	74 °	Recorded geometry
Sprint geometry	470	74.5 °	Recorded geometry
Sprint geometry	570	73.5 °	Recorded geometry
Sprint geometry	590	73 °	Recorded geometry

What is the trail of the Bianchi Sprint 2026?

Trail is the ground distance between the steering-axis intercept and the front tire contact point. Also searched as fork trail, mechanical trail.

Configuration	Size	Trail	Source
Sprint geometry	500	68.1 mm	RideDNA-derived
Sprint geometry	610	58.7 mm	RideDNA-derived
Sprint geometry	550	58.7 mm	RideDNA-derived
Sprint geometry	530	64.9 mm	RideDNA-derived
Sprint geometry	470	74.4 mm	RideDNA-derived
Sprint geometry	570	58.7 mm	RideDNA-derived
Sprint geometry	590	58.7 mm	RideDNA-derived

What is the wheelbase of the Bianchi Sprint 2026?

Wheelbase is the distance between the front and rear wheel axles. Also searched as axle-to-axle length.

Configuration	Size	Wheelbase	Source
Sprint geometry	500	984.7 mm	RideDNA-derived
Sprint geometry	610	1012.8 mm	RideDNA-derived
Sprint geometry	550	986.7 mm	RideDNA-derived
Sprint geometry	530	982.6 mm	RideDNA-derived
Sprint geometry	470	983.1 mm	RideDNA-derived
Sprint geometry	570	996.9 mm	RideDNA-derived
Sprint geometry	590	1006.5 mm	RideDNA-derived

What is the chainstay length of the Bianchi Sprint 2026?

Chainstay length, also called rear center, is the distance from the bottom bracket to the rear axle. Also searched as Chainstay, rear center, rear centre.

Configuration	Size	Chainstay length	Source
Sprint geometry	500	410 mm	Recorded geometry
Sprint geometry	610	415 mm	Recorded geometry
Sprint geometry	550	413 mm	Recorded geometry
Sprint geometry	530	410 mm	Recorded geometry
Sprint geometry	470	410 mm	Recorded geometry
Sprint geometry	570	413 mm	Recorded geometry
Sprint geometry	590	413 mm	Recorded geometry

What is the bottom bracket drop of the Bianchi Sprint 2026?

Bottom bracket drop is the vertical distance from the wheel-axle line down to the bottom bracket. Also searched as BB drop.

Configuration	Size	Bottom bracket drop	Source
Sprint geometry	500	60 mm	Recorded geometry
Sprint geometry	610	68 mm	Recorded geometry
Sprint geometry	550	68 mm	Recorded geometry
Sprint geometry	530	68 mm	Recorded geometry
Sprint geometry	470	60 mm	Recorded geometry
Sprint geometry	570	68 mm	Recorded geometry
Sprint geometry	590	68 mm	Recorded geometry

What is the bottom bracket height of the Bianchi Sprint 2026?

Bottom bracket height is the vertical distance from the ground to the bottom bracket. Also searched as BB height.

Configuration	Size	Bottom bracket height	Source
Sprint geometry	500	279 mm	RideDNA-derived
Sprint geometry	610	271 mm	RideDNA-derived
Sprint geometry	550	271 mm	RideDNA-derived
Sprint geometry	530	271 mm	RideDNA-derived
Sprint geometry	470	279 mm	RideDNA-derived
Sprint geometry	570	271 mm	RideDNA-derived
Sprint geometry	590	271 mm	RideDNA-derived

What is the front center of the Bianchi Sprint 2026?

Front center is the distance from the bottom bracket to the front wheel axle. Also searched as front centre.

Configuration	Size	Front center	Source
Sprint geometry	500	582.3 mm	RideDNA-derived
Sprint geometry	610	607.3 mm	RideDNA-derived
Sprint geometry	550	583.3 mm	RideDNA-derived
Sprint geometry	530	582.3 mm	RideDNA-derived
Sprint geometry	470	580.6 mm	RideDNA-derived
Sprint geometry	570	593.4 mm	RideDNA-derived
Sprint geometry	590	603 mm	Manufacturer-published

What is the fork offset of the Bianchi Sprint 2026?

Fork offset is the perpendicular distance between the steering axis and the front axle. Also searched as fork rake, rake.

Configuration	Size	Fork offset	Source
Sprint geometry	500	43 mm	Manufacturer-published
Sprint geometry	610	43 mm	Manufacturer-published
Sprint geometry	550	43 mm	Manufacturer-published
Sprint geometry	530	43 mm	Manufacturer-published
Sprint geometry	470	43 mm	Manufacturer-published
Sprint geometry	570	43 mm	Manufacturer-published
Sprint geometry	590	43 mm	Manufacturer-published

What is the head tube length of the Bianchi Sprint 2026?

Head tube length is the measured length of the frame's head tube. Also searched as Head tube, head tube.

Configuration	Size	Head tube length	Source
Sprint geometry	500	110 mm	Recorded geometry
Sprint geometry	610	195 mm	Recorded geometry
Sprint geometry	550	140 mm	Recorded geometry
Sprint geometry	530	125 mm	Recorded geometry
Sprint geometry	470	105 mm	Recorded geometry
Sprint geometry	570	155 mm	Recorded geometry
Sprint geometry	590	175 mm	Recorded geometry

What is the seat tube length of the Bianchi Sprint 2026?

Seat tube length is the recorded length of the frame's seat tube; measurement conventions can differ by manufacturer. Also searched as Seat tube, seat tube, frame size.

Configuration	Size	Seat tube length	Source
Sprint geometry	500	450 mm	Recorded geometry
Sprint geometry	610	560 mm	Recorded geometry
Sprint geometry	550	500 mm	Recorded geometry
Sprint geometry	530	480 mm	Recorded geometry
Sprint geometry	470	420 mm	Recorded geometry
Sprint geometry	570	520 mm	Recorded geometry
Sprint geometry	590	540 mm	Recorded geometry

What is the standover height of the Bianchi Sprint 2026?

Standover height is the ground-to-top-tube height at the manufacturer's stated measurement point. Also searched as Standover, stand over height, standover clearance.

Configuration	Size	Standover height	Source
Sprint geometry	500	721.5 mm	RideDNA-derived
Sprint geometry	610	811.1 mm	RideDNA-derived
Sprint geometry	550	757.3 mm	RideDNA-derived
Sprint geometry	530	739.4 mm	RideDNA-derived
Sprint geometry	470	703 mm	RideDNA-derived
Sprint geometry	570	774.1 mm	RideDNA-derived
Sprint geometry	590	792.6 mm	RideDNA-derived

What is the fork length of the Bianchi Sprint 2026?

Fork length is the axle-to-crown distance recorded for the fork. Also searched as axle to crown, A2C.

Configuration	Size	Fork length	Source
Sprint geometry	500	373 mm	Manufacturer-published
Sprint geometry	610	373 mm	Manufacturer-published
Sprint geometry	550	373 mm	Manufacturer-published
Sprint geometry	530	373 mm	Manufacturer-published
Sprint geometry	470	373 mm	Manufacturer-published
Sprint geometry	570	373 mm	Manufacturer-published
Sprint geometry	590	373 mm	Manufacturer-published

What is the wheel flop of the Bianchi Sprint 2026?

Wheel flop is a calculated steering-geometry value based on trail and head tube angle. Also searched as flop.

Configuration	Size	Wheel flop	Source
Sprint geometry	500	20.5 mm	RideDNA-derived
Sprint geometry	610	16.4 mm	RideDNA-derived
Sprint geometry	550	16.4 mm	RideDNA-derived
Sprint geometry	530	19.1 mm	RideDNA-derived
Sprint geometry	470	23.4 mm	RideDNA-derived
Sprint geometry	570	16.4 mm	RideDNA-derived
Sprint geometry	590	16.4 mm	RideDNA-derived

Geometry

Available sizes: 500, 610, 550, 530, 470, 570, 590.

Sprint geometry

Jump to size: 470 · 500 · 530 · 550 · 570 · 590 · 610

Sprint geometry geometry by size
Size	Reach	Stack	ETT	HTA	STA	Trail	Wheelbase	Chainstay	BB drop	BB height	Front center	Fork offset	Head tube	Seat tube	Standover	Fork length	Wheel flop	Max tire
470	377.4 mm^*	496.2 mm^*	515 mm^‡	70.5 °^‡	74.5 °^‡	74.4 mm^*†	983.1 mm^*	410 mm^‡	60 mm^‡†	279 mm^*†	580.6 mm^*	43 mm	105 mm^‡	420 mm^‡	703 mm^*†	373 mm	23.4 mm^*†	†
500	385.1 mm^*	504.4 mm^*	525 mm^‡	71.5 °^‡	74.5 °^‡	68.1 mm^*†	984.7 mm^*	410 mm^‡	60 mm^‡†	279 mm^*†	582.3 mm^*	43 mm	110 mm^‡	450 mm^‡	721.5 mm^*†	373 mm	20.5 mm^*†	†
530	383.5 mm^*	528.3 mm^*	535 mm^‡	72 °^‡	74 °^‡	64.9 mm^*†	982.6 mm^*	410 mm^‡	68 mm^‡†	271 mm^*†	582.3 mm^*	43 mm	125 mm^‡	480 mm^‡	739.4 mm^*†	373 mm	19.1 mm^*†	†
550	388.3 mm^*	546 mm^*	550 mm^‡	73 °^‡	73.5 °^‡	58.7 mm^*†	986.7 mm^*	413 mm^‡	68 mm^‡†	271 mm^*†	583.3 mm^*	43 mm	140 mm^‡	500 mm^‡	757.3 mm^*†	373 mm	16.4 mm^*†	†
570	394 mm^*	560.4 mm^*	560 mm^‡	73 °^‡	73.5 °^‡	58.7 mm^*†	996.9 mm^*	413 mm^‡	68 mm^‡†	271 mm^*†	593.4 mm^*	43 mm	155 mm^‡	520 mm^‡	774.1 mm^*†	373 mm	16.4 mm^*†	†
590	397.8 mm^*	579.5 mm^*	575 mm^‡	73 °^‡	73 °^‡	58.7 mm^*†	1006.5 mm^*	413 mm^‡	68 mm^‡†	271 mm^*†	603 mm	43 mm	175 mm^‡	540 mm^‡	792.6 mm^*†	373 mm	16.4 mm^*†	†
610	396.3 mm^*	598.6 mm^*	585 mm^‡	73 °^‡	72.5 °^‡	58.7 mm^*†	1012.8 mm^*	415 mm^‡	68 mm^‡†	271 mm^*†	607.3 mm^*	43 mm	195 mm^‡	560 mm^‡	811.1 mm^*†	373 mm	16.4 mm^*†	†

Length measurements are in millimeters; HTA and STA are in degrees. ETT means effective top tube. Values prioritize RideDNA calculations. * RideDNA calculated (including corrections where published values differ). Unmarked values are manufacturer-published; matching independently calculated values are identified in their source notes. † Manufacturer did not publish this dimension; † alone means no reliable value is available. ‡ Staff reference or source not confirmed; see the source note. Open Geometry Audit for the original published values, calculated geometry, and deltas.

Size-to-size changes

Differences are calculated from the recorded values; they are not fit recommendations.

Sprint geometry: 470 → 500 — Reach +7.7 mm, Stack +8.2 mm, ETT +10 mm, HTA +1 °, STA +0 °, Trail -6.3 mm, Wheelbase +1.6 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +1.7 mm, Fork offset +0 mm, Head tube +5 mm, Seat tube +30 mm, Standover +18.5 mm, Fork length +0 mm, Wheel flop -2.9 mm
Sprint geometry: 500 → 530 — Reach -1.6 mm, Stack +23.9 mm, ETT +10 mm, HTA +0.5 °, STA -0.5 °, Trail -3.2 mm, Wheelbase -2.1 mm, Chainstay +0 mm, BB drop +8 mm, BB height -8 mm, Front center +0 mm, Fork offset +0 mm, Head tube +15 mm, Seat tube +30 mm, Standover +17.9 mm, Fork length +0 mm, Wheel flop -1.4 mm
Sprint geometry: 530 → 550 — Reach +4.8 mm, Stack +17.7 mm, ETT +15 mm, HTA +1 °, STA -0.5 °, Trail -6.2 mm, Wheelbase +4.1 mm, Chainstay +3 mm, BB drop +0 mm, BB height +0 mm, Front center +1 mm, Fork offset +0 mm, Head tube +15 mm, Seat tube +20 mm, Standover +17.9 mm, Fork length +0 mm, Wheel flop -2.7 mm
Sprint geometry: 550 → 570 — Reach +5.7 mm, Stack +14.4 mm, ETT +10 mm, HTA +0 °, STA +0 °, Trail +0 mm, Wheelbase +10.2 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +10.1 mm, Fork offset +0 mm, Head tube +15 mm, Seat tube +20 mm, Standover +16.8 mm, Fork length +0 mm, Wheel flop +0 mm
Sprint geometry: 570 → 590 — Reach +3.8 mm, Stack +19.1 mm, ETT +15 mm, HTA +0 °, STA -0.5 °, Trail +0 mm, Wheelbase +9.6 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +9.6 mm, Fork offset +0 mm, Head tube +20 mm, Seat tube +20 mm, Standover +18.5 mm, Fork length +0 mm, Wheel flop +0 mm
Sprint geometry: 590 → 610 — Reach -1.5 mm, Stack +19.1 mm, ETT +10 mm, HTA +0 °, STA -0.5 °, Trail +0 mm, Wheelbase +6.3 mm, Chainstay +2 mm, BB drop +0 mm, BB height +0 mm, Front center +4.3 mm, Fork offset +0 mm, Head tube +20 mm, Seat tube +20 mm, Standover +18.5 mm, Fork length +0 mm, Wheel flop +0 mm

RideDNA-derived values

These deterministic calculations use the recorded inputs above. They are separate from recorded facts and are not fit recommendations.

Sprint geometry size 500 stack Reach Ratio: 1.31
Sprint geometry size 610 stack Reach Ratio: 1.51
Sprint geometry size 550 stack Reach Ratio: 1.41
Sprint geometry size 530 stack Reach Ratio: 1.38
Sprint geometry size 470 stack Reach Ratio: 1.31
Sprint geometry size 570 stack Reach Ratio: 1.42
Sprint geometry size 590 stack Reach Ratio: 1.46
