Cannondale Synapse Carbon 2026
Compare size-specific bike geometry, including reach, stack, angles, wheelbase and the measurements that influence fit and handling.
Cannondale › Synapse › Standard › Synapse Carbon
Synapse Carbon geometry measurements
Choose the recorded size and configuration. Geometry figures can change by size; RideDNA does not collapse those values into one misleading answer.
What is the reach of the Cannondale Synapse Carbon 2026?
Reach is the horizontal distance from the bottom bracket to the top of the head tube. Also searched as frame reach.
| Configuration | Size | Reach | Source |
|---|---|---|---|
| Synapse Carbon geometry | 48.0 | 370.8 mm | RideDNA-derived |
| Synapse Carbon geometry | 56.0 | 386.7 mm | RideDNA-derived |
| Synapse Carbon geometry | 54.0 | 380.8 mm | RideDNA-derived |
| Synapse Carbon geometry | 44.0 | 366 mm | Manufacturer-published |
| Synapse Carbon geometry | 51.0 | 375.9 mm | RideDNA-derived |
| Synapse Carbon geometry | 58.0 | 393.4 mm | RideDNA-derived |
| Synapse Carbon geometry | 61.0 | 402.4 mm | RideDNA-derived |
What is the stack of the Cannondale Synapse Carbon 2026?
Stack is the vertical distance from the bottom bracket to the top of the head tube. Also searched as frame stack.
| Configuration | Size | Stack | Source |
|---|---|---|---|
| Synapse Carbon geometry | 48.0 | 530.4 mm | RideDNA-derived |
| Synapse Carbon geometry | 56.0 | 589.6 mm | RideDNA-derived |
| Synapse Carbon geometry | 54.0 | 569.7 mm | RideDNA-derived |
| Synapse Carbon geometry | 44.0 | 510.2 mm | RideDNA-derived |
| Synapse Carbon geometry | 51.0 | 549.9 mm | RideDNA-derived |
| Synapse Carbon geometry | 58.0 | 610.3 mm | RideDNA-derived |
| Synapse Carbon geometry | 61.0 | 639.6 mm | RideDNA-derived |
What is the effective top tube of the Cannondale Synapse Carbon 2026?
Effective top tube is the horizontal distance between the head-tube and seat-tube centerlines. Also searched as ETT, virtual top tube, horizontal top tube.
| Configuration | Size | Effective top tube | Source |
|---|---|---|---|
| Synapse Carbon geometry | 48.0 | 533 mm | Recorded geometry |
| Synapse Carbon geometry | 56.0 | 567 mm | Recorded geometry |
| Synapse Carbon geometry | 54.0 | 555 mm | Recorded geometry |
| Synapse Carbon geometry | 44.0 | 522 mm | Recorded geometry |
| Synapse Carbon geometry | 51.0 | 544 mm | Recorded geometry |
| Synapse Carbon geometry | 58.0 | 580 mm | Recorded geometry |
| Synapse Carbon geometry | 61.0 | 598 mm | Recorded geometry |
What is the head tube angle of the Cannondale Synapse Carbon 2026?
Head tube angle describes the steering-axis angle relative to the ground. Also searched as HTA, head angle, steering angle.
| Configuration | Size | Head tube angle | Source |
|---|---|---|---|
| Synapse Carbon geometry | 48.0 | 70.9 ° | Recorded geometry |
| Synapse Carbon geometry | 56.0 | 71.3 ° | Recorded geometry |
| Synapse Carbon geometry | 54.0 | 71.3 ° | Recorded geometry |
| Synapse Carbon geometry | 44.0 | 69.8 ° | Recorded geometry |
| Synapse Carbon geometry | 51.0 | 71.3 ° | Recorded geometry |
| Synapse Carbon geometry | 58.0 | 71.3 ° | Recorded geometry |
| Synapse Carbon geometry | 61.0 | 71.3 ° | Recorded geometry |
What is the seat tube angle of the Cannondale Synapse Carbon 2026?
Seat tube angle describes the seat-tube angle relative to the ground. Also searched as STA, seat angle, effective seat angle.
| Configuration | Size | Seat tube angle | Source |
|---|---|---|---|
| Synapse Carbon geometry | 48.0 | 73 ° | Recorded geometry |
| Synapse Carbon geometry | 56.0 | 73 ° | Recorded geometry |
| Synapse Carbon geometry | 54.0 | 73 ° | Recorded geometry |
| Synapse Carbon geometry | 44.0 | 73 ° | Recorded geometry |
| Synapse Carbon geometry | 51.0 | 73 ° | Recorded geometry |
| Synapse Carbon geometry | 58.0 | 73 ° | Recorded geometry |
| Synapse Carbon geometry | 61.0 | 73 ° | Recorded geometry |
What is the trail of the Cannondale Synapse Carbon 2026?
Trail is the ground distance between the steering-axis intercept and the front tire contact point. Also searched as fork trail, mechanical trail.
| Configuration | Size | Trail | Source |
|---|---|---|---|
| Synapse Carbon geometry | 48.0 | 64 mm | Manufacturer-published |
| Synapse Carbon geometry | 56.0 | 61 mm | Manufacturer-published |
| Synapse Carbon geometry | 54.0 | 61 mm | Manufacturer-published |
| Synapse Carbon geometry | 44.0 | 71 mm | Manufacturer-published |
| Synapse Carbon geometry | 51.0 | 61 mm | Manufacturer-published |
| Synapse Carbon geometry | 58.0 | 61 mm | Manufacturer-published |
| Synapse Carbon geometry | 61.0 | 61 mm | Manufacturer-published |
What is the wheelbase of the Cannondale Synapse Carbon 2026?
Wheelbase is the distance between the front and rear wheel axles. Also searched as axle-to-axle length.
| Configuration | Size | Wheelbase | Source |
|---|---|---|---|
| Synapse Carbon geometry | 48.0 | 1005.1 mm | RideDNA-derived |
| Synapse Carbon geometry | 56.0 | 1043.4 mm | RideDNA-derived |
| Synapse Carbon geometry | 54.0 | 1025.7 mm | RideDNA-derived |
| Synapse Carbon geometry | 44.0 | 1003.1 mm | RideDNA-derived |
| Synapse Carbon geometry | 51.0 | 1013 mm | Manufacturer-published |
| Synapse Carbon geometry | 58.0 | 1058.6 mm | RideDNA-derived |
| Synapse Carbon geometry | 61.0 | 1077.6 mm | RideDNA-derived |
What is the chainstay length of the Cannondale Synapse Carbon 2026?
Chainstay length, also called rear center, is the distance from the bottom bracket to the rear axle. Also searched as Chainstay, rear center, rear centre.
| Configuration | Size | Chainstay length | Source |
|---|---|---|---|
| Synapse Carbon geometry | 48.0 | 425 mm | Recorded geometry |
| Synapse Carbon geometry | 56.0 | 430 mm | Recorded geometry |
| Synapse Carbon geometry | 54.0 | 425 mm | Recorded geometry |
| Synapse Carbon geometry | 44.0 | 425 mm | Recorded geometry |
| Synapse Carbon geometry | 51.0 | 425 mm | Recorded geometry |
| Synapse Carbon geometry | 58.0 | 430 mm | Recorded geometry |
| Synapse Carbon geometry | 61.0 | 430 mm | Recorded geometry |
What is the bottom bracket drop of the Cannondale Synapse Carbon 2026?
Bottom bracket drop is the vertical distance from the wheel-axle line down to the bottom bracket. Also searched as BB drop.
| Configuration | Size | Bottom bracket drop | Source |
|---|---|---|---|
| Synapse Carbon geometry | 48.0 | 75 mm | Recorded geometry |
| Synapse Carbon geometry | 56.0 | 73 mm | Recorded geometry |
| Synapse Carbon geometry | 54.0 | 73 mm | Recorded geometry |
| Synapse Carbon geometry | 44.0 | 75 mm | Recorded geometry |
| Synapse Carbon geometry | 51.0 | 75 mm | Recorded geometry |
| Synapse Carbon geometry | 58.0 | 70 mm | Recorded geometry |
| Synapse Carbon geometry | 61.0 | 70 mm | Recorded geometry |
What is the bottom bracket height of the Cannondale Synapse Carbon 2026?
Bottom bracket height is the vertical distance from the ground to the bottom bracket. Also searched as BB height.
| Configuration | Size | Bottom bracket height | Source |
|---|---|---|---|
| Synapse Carbon geometry | 48.0 | 277.9 mm | RideDNA-derived |
| Synapse Carbon geometry | 56.0 | 278.8 mm | RideDNA-derived |
| Synapse Carbon geometry | 54.0 | 278.8 mm | RideDNA-derived |
| Synapse Carbon geometry | 44.0 | 277.3 mm | RideDNA-derived |
| Synapse Carbon geometry | 51.0 | 276.8 mm | RideDNA-derived |
| Synapse Carbon geometry | 58.0 | 281.8 mm | RideDNA-derived |
| Synapse Carbon geometry | 61.0 | 281.8 mm | RideDNA-derived |
What is the front center of the Cannondale Synapse Carbon 2026?
Front center is the distance from the bottom bracket to the front wheel axle. Also searched as front centre.
| Configuration | Size | Front center | Source |
|---|---|---|---|
| Synapse Carbon geometry | 48.0 | 591.5 mm | RideDNA-derived |
| Synapse Carbon geometry | 56.0 | 624 mm | Manufacturer-published |
| Synapse Carbon geometry | 54.0 | 611.4 mm | RideDNA-derived |
| Synapse Carbon geometry | 44.0 | 589.5 mm | RideDNA-derived |
| Synapse Carbon geometry | 51.0 | 599.4 mm | RideDNA-derived |
| Synapse Carbon geometry | 58.0 | 638.2 mm | RideDNA-derived |
| Synapse Carbon geometry | 61.0 | 657.1 mm | RideDNA-derived |
What is the fork offset of the Cannondale Synapse Carbon 2026?
Fork offset is the perpendicular distance between the steering axis and the front axle. Also searched as fork rake, rake.
| Configuration | Size | Fork offset | Source |
|---|---|---|---|
| Synapse Carbon geometry | 48.0 | 55 mm | Manufacturer-published |
| Synapse Carbon geometry | 56.0 | 55 mm | Manufacturer-published |
| Synapse Carbon geometry | 54.0 | 55 mm | Manufacturer-published |
| Synapse Carbon geometry | 44.0 | 55 mm | Manufacturer-published |
| Synapse Carbon geometry | 51.0 | 55 mm | Manufacturer-published |
| Synapse Carbon geometry | 58.0 | 55 mm | Manufacturer-published |
| Synapse Carbon geometry | 61.0 | 55 mm | Manufacturer-published |
What is the head tube length of the Cannondale Synapse Carbon 2026?
Head tube length is the measured length of the frame's head tube. Also searched as Head tube, head tube.
| Configuration | Size | Head tube length | Source |
|---|---|---|---|
| Synapse Carbon geometry | 48.0 | 108 mm | Recorded geometry |
| Synapse Carbon geometry | 56.0 | 171 mm | Recorded geometry |
| Synapse Carbon geometry | 54.0 | 150 mm | Recorded geometry |
| Synapse Carbon geometry | 44.0 | 91 mm | Recorded geometry |
| Synapse Carbon geometry | 51.0 | 127 mm | Recorded geometry |
| Synapse Carbon geometry | 58.0 | 196 mm | Recorded geometry |
| Synapse Carbon geometry | 61.0 | 227 mm | Recorded geometry |
What is the seat tube length of the Cannondale Synapse Carbon 2026?
Seat tube length is the recorded length of the frame's seat tube; measurement conventions can differ by manufacturer. Also searched as Seat tube, seat tube, frame size.
| Configuration | Size | Seat tube length | Source |
|---|---|---|---|
| Synapse Carbon geometry | 48.0 | 407 mm | Recorded geometry |
| Synapse Carbon geometry | 56.0 | 520 mm | Recorded geometry |
| Synapse Carbon geometry | 54.0 | 480 mm | Recorded geometry |
| Synapse Carbon geometry | 44.0 | 407 mm | Recorded geometry |
| Synapse Carbon geometry | 51.0 | 443 mm | Recorded geometry |
| Synapse Carbon geometry | 58.0 | 550 mm | Recorded geometry |
| Synapse Carbon geometry | 61.0 | 590 mm | Recorded geometry |
What is the standover height of the Cannondale Synapse Carbon 2026?
Standover height is the ground-to-top-tube height at the manufacturer's stated measurement point. Also searched as Standover, stand over height, standover clearance.
| Configuration | Size | Standover height | Source |
|---|---|---|---|
| Synapse Carbon geometry | 48.0 | 711.4 mm | RideDNA-derived |
| Synapse Carbon geometry | 56.0 | 795.9 mm | RideDNA-derived |
| Synapse Carbon geometry | 54.0 | 766.9 mm | RideDNA-derived |
| Synapse Carbon geometry | 44.0 | 700.7 mm | RideDNA-derived |
| Synapse Carbon geometry | 51.0 | 737.3 mm | RideDNA-derived |
| Synapse Carbon geometry | 58.0 | 823.6 mm | RideDNA-derived |
| Synapse Carbon geometry | 61.0 | 857.4 mm | RideDNA-derived |
What is the fork length of the Cannondale Synapse Carbon 2026?
Fork length is the axle-to-crown distance recorded for the fork. Also searched as axle to crown, A2C.
| Configuration | Size | Fork length | Source |
|---|---|---|---|
| Synapse Carbon geometry | 48.0 | 393 mm | RideDNA-derived |
| Synapse Carbon geometry | 56.0 | 393 mm | RideDNA-derived |
| Synapse Carbon geometry | 54.0 | 393 mm | RideDNA-derived |
| Synapse Carbon geometry | 44.0 | 393 mm | RideDNA-derived |
| Synapse Carbon geometry | 51.0 | 393 mm | RideDNA-derived |
| Synapse Carbon geometry | 58.0 | 393 mm | RideDNA-derived |
| Synapse Carbon geometry | 61.0 | 393 mm | RideDNA-derived |
What is the wheel flop of the Cannondale Synapse Carbon 2026?
Wheel flop is a calculated steering-geometry value based on trail and head tube angle. Also searched as flop.
| Configuration | Size | Wheel flop | Source |
|---|---|---|---|
| Synapse Carbon geometry | 48.0 | 19.8 mm | RideDNA-derived |
| Synapse Carbon geometry | 56.0 | 18.5 mm | RideDNA-derived |
| Synapse Carbon geometry | 54.0 | 18.5 mm | RideDNA-derived |
| Synapse Carbon geometry | 44.0 | 23 mm | RideDNA-derived |
| Synapse Carbon geometry | 51.0 | 18.5 mm | RideDNA-derived |
| Synapse Carbon geometry | 58.0 | 18.5 mm | RideDNA-derived |
| Synapse Carbon geometry | 61.0 | 18.5 mm | RideDNA-derived |
Geometry
Available sizes: 48.0, 56.0, 54.0, 44.0, 51.0, 58.0, 61.0.

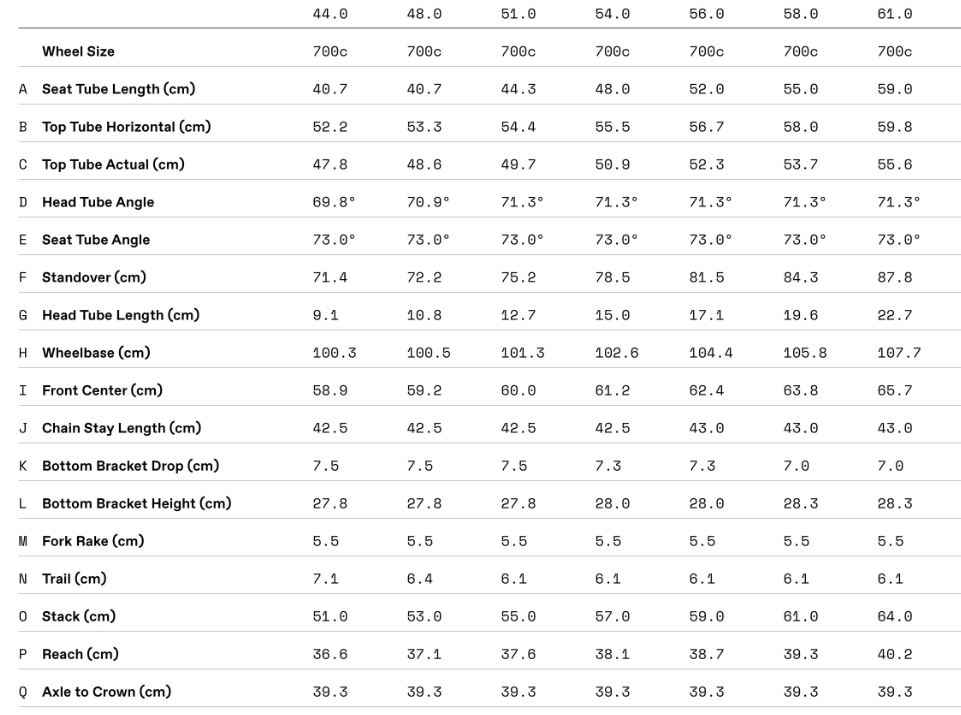

Synapse Carbon geometry
Jump to size: 44.0 · 48.0 · 51.0 · 54.0 · 56.0 · 58.0 · 61.0
| Size | Reach | Stack | ETT | HTA | STA | Trail | Wheelbase | Chainstay | BB drop | BB height | Front center | Fork offset | Head tube | Seat tube | Standover | Fork length | Wheel flop | Max tire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44.0 | 366 mm | 510.2 mm* | 522 mm‡ | 69.8 °‡ | 73 °‡ | 71 mm | 1003.1 mm* | 425 mm‡ | 75 mm‡† | 277.3 mm*† | 589.5 mm* | 55 mm | 91 mm‡ | 407 mm‡ | 700.7 mm* | 393 mm*† | 23 mm*† | † |
| 48.0 | 370.8 mm* | 530.4 mm* | 533 mm‡ | 70.9 °‡ | 73 °‡ | 64 mm | 1005.1 mm* | 425 mm‡ | 75 mm‡† | 277.9 mm*† | 591.5 mm* | 55 mm | 108 mm‡ | 407 mm‡ | 711.4 mm* | 393 mm*† | 19.8 mm*† | † |
| 51.0 | 375.9 mm* | 549.9 mm* | 544 mm‡ | 71.3 °‡ | 73 °‡ | 61 mm | 1013 mm | 425 mm‡ | 75 mm‡† | 276.8 mm*† | 599.4 mm* | 55 mm | 127 mm‡ | 443 mm‡ | 737.3 mm* | 393 mm*† | 18.5 mm*† | † |
| 54.0 | 380.8 mm* | 569.7 mm* | 555 mm‡ | 71.3 °‡ | 73 °‡ | 61 mm | 1025.7 mm* | 425 mm‡ | 73 mm‡† | 278.8 mm*† | 611.4 mm* | 55 mm | 150 mm‡ | 480 mm‡ | 766.9 mm* | 393 mm*† | 18.5 mm*† | † |
| 56.0 | 386.7 mm* | 589.6 mm* | 567 mm‡ | 71.3 °‡ | 73 °‡ | 61 mm | 1043.4 mm* | 430 mm‡ | 73 mm‡† | 278.8 mm*† | 624 mm | 55 mm | 171 mm‡ | 520 mm‡ | 795.9 mm* | 393 mm*† | 18.5 mm*† | † |
| 58.0 | 393.4 mm* | 610.3 mm* | 580 mm‡ | 71.3 °‡ | 73 °‡ | 61 mm | 1058.6 mm* | 430 mm‡ | 70 mm‡† | 281.8 mm*† | 638.2 mm* | 55 mm | 196 mm‡ | 550 mm‡ | 823.6 mm* | 393 mm*† | 18.5 mm*† | † |
| 61.0 | 402.4 mm* | 639.6 mm* | 598 mm‡ | 71.3 °‡ | 73 °‡ | 61 mm | 1077.6 mm* | 430 mm‡ | 70 mm‡† | 281.8 mm*† | 657.1 mm* | 55 mm | 227 mm‡ | 590 mm‡ | 857.4 mm* | 393 mm*† | 18.5 mm*† | † |
Length measurements are in millimeters; HTA and STA are in degrees. ETT means effective top tube. Values prioritize RideDNA calculations. * RideDNA calculated (including corrections where published values differ). Unmarked values are manufacturer-published; matching independently calculated values are identified in their source notes. † Manufacturer did not publish this dimension; † alone means no reliable value is available. ‡ Staff reference or source not confirmed; see the source note. Open Geometry Audit for the original published values, calculated geometry, and deltas.
Size-to-size changes
Differences are calculated from the recorded values; they are not fit recommendations.
- Synapse Carbon geometry: 44.0 → 48.0 — Reach +4.8 mm, Stack +20.2 mm, ETT +11 mm, HTA +1.1 °, STA +0 °, Trail -7 mm, Wheelbase +2 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0.6 mm, Front center +2 mm, Fork offset +0 mm, Head tube +17 mm, Seat tube +0 mm, Standover +10.7 mm, Fork length +0 mm, Wheel flop -3.2 mm
- Synapse Carbon geometry: 48.0 → 51.0 — Reach +5.1 mm, Stack +19.5 mm, ETT +11 mm, HTA +0.4 °, STA +0 °, Trail -3 mm, Wheelbase +7.9 mm, Chainstay +0 mm, BB drop +0 mm, BB height -1.1 mm, Front center +7.9 mm, Fork offset +0 mm, Head tube +19 mm, Seat tube +36 mm, Standover +25.9 mm, Fork length +0 mm, Wheel flop -1.3 mm
- Synapse Carbon geometry: 51.0 → 54.0 — Reach +4.9 mm, Stack +19.8 mm, ETT +11 mm, HTA +0 °, STA +0 °, Trail +0 mm, Wheelbase +12.7 mm, Chainstay +0 mm, BB drop -2 mm, BB height +2 mm, Front center +12 mm, Fork offset +0 mm, Head tube +23 mm, Seat tube +37 mm, Standover +29.6 mm, Fork length +0 mm, Wheel flop +0 mm
- Synapse Carbon geometry: 54.0 → 56.0 — Reach +5.9 mm, Stack +19.9 mm, ETT +12 mm, HTA +0 °, STA +0 °, Trail +0 mm, Wheelbase +17.7 mm, Chainstay +5 mm, BB drop +0 mm, BB height +0 mm, Front center +12.6 mm, Fork offset +0 mm, Head tube +21 mm, Seat tube +40 mm, Standover +29 mm, Fork length +0 mm, Wheel flop +0 mm
- Synapse Carbon geometry: 56.0 → 58.0 — Reach +6.7 mm, Stack +20.7 mm, ETT +13 mm, HTA +0 °, STA +0 °, Trail +0 mm, Wheelbase +15.2 mm, Chainstay +0 mm, BB drop -3 mm, BB height +3 mm, Front center +14.2 mm, Fork offset +0 mm, Head tube +25 mm, Seat tube +30 mm, Standover +27.7 mm, Fork length +0 mm, Wheel flop +0 mm
- Synapse Carbon geometry: 58.0 → 61.0 — Reach +9 mm, Stack +29.3 mm, ETT +18 mm, HTA +0 °, STA +0 °, Trail +0 mm, Wheelbase +19 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +18.9 mm, Fork offset +0 mm, Head tube +31 mm, Seat tube +40 mm, Standover +33.8 mm, Fork length +0 mm, Wheel flop +0 mm
RideDNA-derived values
These deterministic calculations use the recorded inputs above. They are separate from recorded facts and are not fit recommendations.
- Synapse Carbon geometry size 48.0 stack Reach Ratio: 1.43
- Synapse Carbon geometry size 56.0 stack Reach Ratio: 1.52
- Synapse Carbon geometry size 54.0 stack Reach Ratio: 1.5
- Synapse Carbon geometry size 44.0 stack Reach Ratio: 1.39
- Synapse Carbon geometry size 51.0 stack Reach Ratio: 1.46
- Synapse Carbon geometry size 58.0 stack Reach Ratio: 1.55
- Synapse Carbon geometry size 61.0 stack Reach Ratio: 1.59
Bike details
- competitor Model Id
- d20fad55-9d21-4e86-9102-aa0049d68340
