Cannondale Topstone Carbon 2026
Compare size-specific bike geometry, including reach, stack, angles, wheelbase and the measurements that influence fit and handling.
Cannondale › Topstone › Standard › Topstone Carbon
Topstone Carbon geometry measurements
Choose the recorded size and configuration. Geometry figures can change by size; RideDNA does not collapse those values into one misleading answer.
What is the reach of the Cannondale Topstone Carbon 2026?
Reach is the horizontal distance from the bottom bracket to the top of the head tube. Also searched as frame reach.
| Configuration | Size | Reach | Source |
|---|---|---|---|
| Topstone Carbon geometry | 54.0 | 378.2 mm | RideDNA-derived |
| Topstone Carbon geometry | 58.0 | 389 mm | Manufacturer-published |
| Topstone Carbon geometry | 61.0 | 396.9 mm | RideDNA-derived |
| Topstone Carbon geometry | 51.0 | 372.6 mm | RideDNA-derived |
| Topstone Carbon geometry | 47.0 | 363.7 mm | RideDNA-derived |
| Topstone Carbon geometry | 56.0 | 382.7 mm | RideDNA-derived |
What is the stack of the Cannondale Topstone Carbon 2026?
Stack is the vertical distance from the bottom bracket to the top of the head tube. Also searched as frame stack.
| Configuration | Size | Stack | Source |
|---|---|---|---|
| Topstone Carbon geometry | 54.0 | 578.7 mm | RideDNA-derived |
| Topstone Carbon geometry | 58.0 | 615.4 mm | RideDNA-derived |
| Topstone Carbon geometry | 61.0 | 645.6 mm | RideDNA-derived |
| Topstone Carbon geometry | 51.0 | 560.9 mm | RideDNA-derived |
| Topstone Carbon geometry | 47.0 | 554 mm | Manufacturer-published |
| Topstone Carbon geometry | 56.0 | 596.6 mm | RideDNA-derived |
What is the effective top tube of the Cannondale Topstone Carbon 2026?
Effective top tube is the horizontal distance between the head-tube and seat-tube centerlines. Also searched as ETT, virtual top tube, horizontal top tube.
| Configuration | Size | Effective top tube | Source |
|---|---|---|---|
| Topstone Carbon geometry | 54.0 | 554 mm | Recorded geometry |
| Topstone Carbon geometry | 58.0 | 576 mm | Recorded geometry |
| Topstone Carbon geometry | 61.0 | 593 mm | Recorded geometry |
| Topstone Carbon geometry | 51.0 | 543 mm | Recorded geometry |
| Topstone Carbon geometry | 47.0 | 532 mm | Recorded geometry |
| Topstone Carbon geometry | 56.0 | 564 mm | Recorded geometry |
What is the head tube angle of the Cannondale Topstone Carbon 2026?
Head tube angle describes the steering-axis angle relative to the ground. Also searched as HTA, head angle, steering angle.
| Configuration | Size | Head tube angle | Source |
|---|---|---|---|
| Topstone Carbon geometry | 54.0 | 70.7 ° | Recorded geometry |
| Topstone Carbon geometry | 58.0 | 70.7 ° | Recorded geometry |
| Topstone Carbon geometry | 61.0 | 70.7 ° | Recorded geometry |
| Topstone Carbon geometry | 51.0 | 70.7 ° | Recorded geometry |
| Topstone Carbon geometry | 47.0 | 69.9 ° | Recorded geometry |
| Topstone Carbon geometry | 56.0 | 70.7 ° | Recorded geometry |
What is the seat tube angle of the Cannondale Topstone Carbon 2026?
Seat tube angle describes the seat-tube angle relative to the ground. Also searched as STA, seat angle, effective seat angle.
| Configuration | Size | Seat tube angle | Source |
|---|---|---|---|
| Topstone Carbon geometry | 54.0 | 73.1 ° | Recorded geometry |
| Topstone Carbon geometry | 58.0 | 73.1 ° | Recorded geometry |
| Topstone Carbon geometry | 61.0 | 73.1 ° | Recorded geometry |
| Topstone Carbon geometry | 51.0 | 73.1 ° | Recorded geometry |
| Topstone Carbon geometry | 47.0 | 73.1 ° | Recorded geometry |
| Topstone Carbon geometry | 56.0 | 73.1 ° | Recorded geometry |
What is the trail of the Cannondale Topstone Carbon 2026?
Trail is the ground distance between the steering-axis intercept and the front tire contact point. Also searched as fork trail, mechanical trail.
| Configuration | Size | Trail | Source |
|---|---|---|---|
| Topstone Carbon geometry | 54.0 | 67 mm | Manufacturer-published |
| Topstone Carbon geometry | 58.0 | 67 mm | Manufacturer-published |
| Topstone Carbon geometry | 61.0 | 67 mm | Manufacturer-published |
| Topstone Carbon geometry | 51.0 | 67 mm | Manufacturer-published |
| Topstone Carbon geometry | 47.0 | 73 mm | Manufacturer-published |
| Topstone Carbon geometry | 56.0 | 67 mm | Manufacturer-published |
What is the wheelbase of the Cannondale Topstone Carbon 2026?
Wheelbase is the distance between the front and rear wheel axles. Also searched as axle-to-axle length.
| Configuration | Size | Wheelbase | Source |
|---|---|---|---|
| Topstone Carbon geometry | 54.0 | 1025.6 mm | RideDNA-derived |
| Topstone Carbon geometry | 58.0 | 1050.3 mm | RideDNA-derived |
| Topstone Carbon geometry | 61.0 | 1068.7 mm | RideDNA-derived |
| Topstone Carbon geometry | 51.0 | 1012.1 mm | RideDNA-derived |
| Topstone Carbon geometry | 47.0 | 1008.6 mm | RideDNA-derived |
| Topstone Carbon geometry | 56.0 | 1036.4 mm | RideDNA-derived |
What is the chainstay length of the Cannondale Topstone Carbon 2026?
Chainstay length, also called rear center, is the distance from the bottom bracket to the rear axle. Also searched as Chainstay, rear center, rear centre.
| Configuration | Size | Chainstay length | Source |
|---|---|---|---|
| Topstone Carbon geometry | 54.0 | 420 mm | Recorded geometry |
| Topstone Carbon geometry | 58.0 | 420 mm | Recorded geometry |
| Topstone Carbon geometry | 61.0 | 420 mm | Recorded geometry |
| Topstone Carbon geometry | 51.0 | 420 mm | Recorded geometry |
| Topstone Carbon geometry | 47.0 | 420 mm | Recorded geometry |
| Topstone Carbon geometry | 56.0 | 420 mm | Recorded geometry |
What is the bottom bracket drop of the Cannondale Topstone Carbon 2026?
Bottom bracket drop is the vertical distance from the wheel-axle line down to the bottom bracket. Also searched as BB drop.
| Configuration | Size | Bottom bracket drop | Source |
|---|---|---|---|
| Topstone Carbon geometry | 54.0 | 76 mm | Recorded geometry |
| Topstone Carbon geometry | 58.0 | 74 mm | Recorded geometry |
| Topstone Carbon geometry | 61.0 | 74 mm | Recorded geometry |
| Topstone Carbon geometry | 51.0 | 79 mm | Recorded geometry |
| Topstone Carbon geometry | 47.0 | 79 mm | Recorded geometry |
| Topstone Carbon geometry | 56.0 | 76 mm | Recorded geometry |
What is the bottom bracket height of the Cannondale Topstone Carbon 2026?
Bottom bracket height is the vertical distance from the ground to the bottom bracket. Also searched as BB height.
| Configuration | Size | Bottom bracket height | Source |
|---|---|---|---|
| Topstone Carbon geometry | 54.0 | 281.7 mm | RideDNA-derived |
| Topstone Carbon geometry | 58.0 | 283.7 mm | RideDNA-derived |
| Topstone Carbon geometry | 61.0 | 283.7 mm | RideDNA-derived |
| Topstone Carbon geometry | 51.0 | 278.7 mm | RideDNA-derived |
| Topstone Carbon geometry | 47.0 | 280.5 mm | RideDNA-derived |
| Topstone Carbon geometry | 56.0 | 281.7 mm | RideDNA-derived |
What is the front center of the Cannondale Topstone Carbon 2026?
Front center is the distance from the bottom bracket to the front wheel axle. Also searched as front centre.
| Configuration | Size | Front center | Source |
|---|---|---|---|
| Topstone Carbon geometry | 54.0 | 617.2 mm | RideDNA-derived |
| Topstone Carbon geometry | 58.0 | 641.2 mm | RideDNA-derived |
| Topstone Carbon geometry | 61.0 | 659.5 mm | RideDNA-derived |
| Topstone Carbon geometry | 51.0 | 604.8 mm | RideDNA-derived |
| Topstone Carbon geometry | 47.0 | 601.3 mm | RideDNA-derived |
| Topstone Carbon geometry | 56.0 | 627.9 mm | RideDNA-derived |
What is the fork offset of the Cannondale Topstone Carbon 2026?
Fork offset is the perpendicular distance between the steering axis and the front axle. Also searched as fork rake, rake.
| Configuration | Size | Fork offset | Source |
|---|---|---|---|
| Topstone Carbon geometry | 54.0 | 55 mm | Manufacturer-published |
| Topstone Carbon geometry | 58.0 | 55 mm | Manufacturer-published |
| Topstone Carbon geometry | 61.0 | 55 mm | Manufacturer-published |
| Topstone Carbon geometry | 51.0 | 55 mm | Manufacturer-published |
| Topstone Carbon geometry | 47.0 | 55 mm | Manufacturer-published |
| Topstone Carbon geometry | 56.0 | 55 mm | Manufacturer-published |
What is the head tube length of the Cannondale Topstone Carbon 2026?
Head tube length is the measured length of the frame's head tube. Also searched as Head tube, head tube.
| Configuration | Size | Head tube length | Source |
|---|---|---|---|
| Topstone Carbon geometry | 54.0 | 123 mm | Recorded geometry |
| Topstone Carbon geometry | 58.0 | 164 mm | Recorded geometry |
| Topstone Carbon geometry | 61.0 | 196 mm | Recorded geometry |
| Topstone Carbon geometry | 51.0 | 101 mm | Recorded geometry |
| Topstone Carbon geometry | 47.0 | 97 mm | Recorded geometry |
| Topstone Carbon geometry | 56.0 | 142 mm | Recorded geometry |
What is the seat tube length of the Cannondale Topstone Carbon 2026?
Seat tube length is the recorded length of the frame's seat tube; measurement conventions can differ by manufacturer. Also searched as Seat tube, seat tube, frame size.
| Configuration | Size | Seat tube length | Source |
|---|---|---|---|
| Topstone Carbon geometry | 54.0 | 482 mm | Recorded geometry |
| Topstone Carbon geometry | 58.0 | 554 mm | Recorded geometry |
| Topstone Carbon geometry | 61.0 | 590 mm | Recorded geometry |
| Topstone Carbon geometry | 51.0 | 446 mm | Recorded geometry |
| Topstone Carbon geometry | 47.0 | 410 mm | Recorded geometry |
| Topstone Carbon geometry | 56.0 | 518 mm | Recorded geometry |
What is the standover height of the Cannondale Topstone Carbon 2026?
Standover height is the ground-to-top-tube height at the manufacturer's stated measurement point. Also searched as Standover, stand over height, standover clearance.
| Configuration | Size | Standover height | Source |
|---|---|---|---|
| Topstone Carbon geometry | 54.0 | 775.3 mm | RideDNA-derived |
| Topstone Carbon geometry | 58.0 | 830.1 mm | RideDNA-derived |
| Topstone Carbon geometry | 61.0 | 862.4 mm | RideDNA-derived |
| Topstone Carbon geometry | 51.0 | 746.2 mm | RideDNA-derived |
| Topstone Carbon geometry | 47.0 | 727.3 mm | RideDNA-derived |
| Topstone Carbon geometry | 56.0 | 801.5 mm | RideDNA-derived |
What is the fork length of the Cannondale Topstone Carbon 2026?
Fork length is the axle-to-crown distance recorded for the fork. Also searched as axle to crown, A2C.
| Configuration | Size | Fork length | Source |
|---|---|---|---|
| Topstone Carbon geometry | 54.0 | 428.9 mm | RideDNA-derived |
| Topstone Carbon geometry | 58.0 | 428.9 mm | RideDNA-derived |
| Topstone Carbon geometry | 61.0 | 428.9 mm | RideDNA-derived |
| Topstone Carbon geometry | 51.0 | 428.9 mm | RideDNA-derived |
| Topstone Carbon geometry | 47.0 | 428.9 mm | RideDNA-derived |
| Topstone Carbon geometry | 56.0 | 428.9 mm | RideDNA-derived |
What is the wheel flop of the Cannondale Topstone Carbon 2026?
Wheel flop is a calculated steering-geometry value based on trail and head tube angle. Also searched as flop.
| Configuration | Size | Wheel flop | Source |
|---|---|---|---|
| Topstone Carbon geometry | 54.0 | 20.9 mm | RideDNA-derived |
| Topstone Carbon geometry | 58.0 | 20.9 mm | RideDNA-derived |
| Topstone Carbon geometry | 61.0 | 20.9 mm | RideDNA-derived |
| Topstone Carbon geometry | 51.0 | 20.9 mm | RideDNA-derived |
| Topstone Carbon geometry | 47.0 | 23.6 mm | RideDNA-derived |
| Topstone Carbon geometry | 56.0 | 20.9 mm | RideDNA-derived |

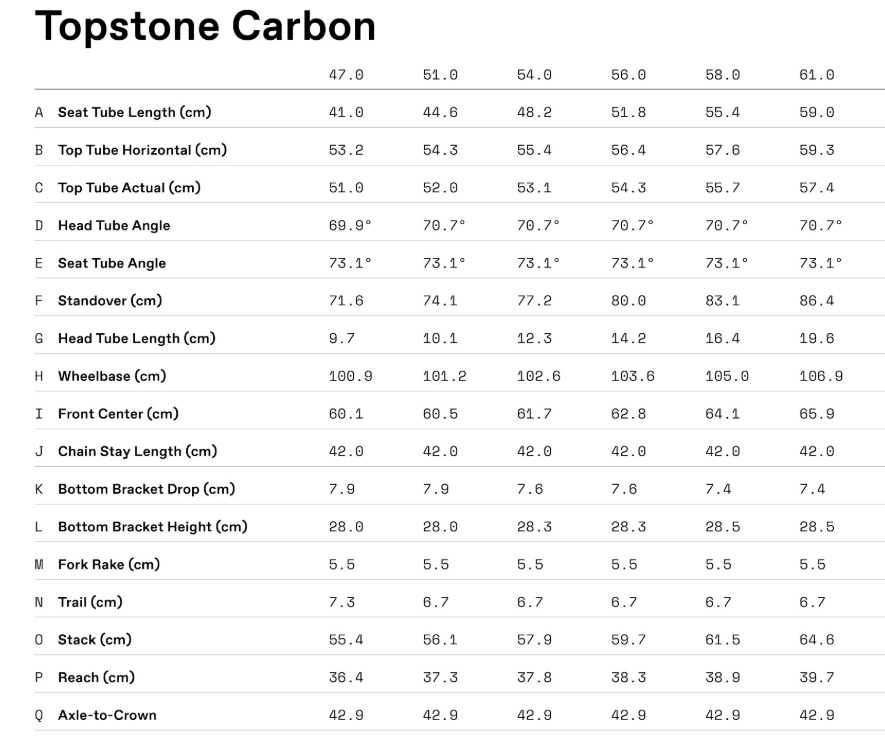

Geometry
Available sizes: 54.0, 58.0, 61.0, 51.0, 47.0, 56.0.
Topstone Carbon geometry
Jump to size: 47.0 · 51.0 · 54.0 · 56.0 · 58.0 · 61.0
| Size | Reach | Stack | ETT | HTA | STA | Trail | Wheelbase | Chainstay | BB drop | BB height | Front center | Fork offset | Head tube | Seat tube | Standover | Fork length | Wheel flop | Max tire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47.0 | 363.7 mm* | 554 mm | 532 mm‡ | 69.9 °‡ | 73.1 °‡ | 73 mm | 1008.6 mm* | 420 mm‡ | 79 mm‡† | 280.5 mm*† | 601.3 mm* | 55 mm | 97 mm‡ | 410 mm‡ | 727.3 mm* | 428.9 mm*† | 23.6 mm*† | † |
| 51.0 | 372.6 mm* | 560.9 mm* | 543 mm‡ | 70.7 °‡ | 73.1 °‡ | 67 mm | 1012.1 mm* | 420 mm‡ | 79 mm‡† | 278.7 mm*† | 604.8 mm* | 55 mm | 101 mm‡ | 446 mm‡ | 746.2 mm* | 428.9 mm*† | 20.9 mm*† | † |
| 54.0 | 378.2 mm* | 578.7 mm* | 554 mm‡ | 70.7 °‡ | 73.1 °‡ | 67 mm | 1025.6 mm* | 420 mm‡ | 76 mm‡† | 281.7 mm*† | 617.2 mm* | 55 mm | 123 mm‡ | 482 mm‡ | 775.3 mm* | 428.9 mm*† | 20.9 mm*† | † |
| 56.0 | 382.7 mm* | 596.6 mm* | 564 mm‡ | 70.7 °‡ | 73.1 °‡ | 67 mm | 1036.4 mm* | 420 mm‡ | 76 mm‡† | 281.7 mm*† | 627.9 mm* | 55 mm | 142 mm‡ | 518 mm‡ | 801.5 mm* | 428.9 mm*† | 20.9 mm*† | † |
| 58.0 | 389 mm | 615.4 mm* | 576 mm‡ | 70.7 °‡ | 73.1 °‡ | 67 mm | 1050.3 mm* | 420 mm‡ | 74 mm‡† | 283.7 mm*† | 641.2 mm* | 55 mm | 164 mm‡ | 554 mm‡ | 830.1 mm* | 428.9 mm*† | 20.9 mm*† | † |
| 61.0 | 396.9 mm* | 645.6 mm* | 593 mm‡ | 70.7 °‡ | 73.1 °‡ | 67 mm | 1068.7 mm* | 420 mm‡ | 74 mm‡† | 283.7 mm*† | 659.5 mm* | 55 mm | 196 mm‡ | 590 mm‡ | 862.4 mm* | 428.9 mm*† | 20.9 mm*† | † |
Length measurements are in millimeters; HTA and STA are in degrees. ETT means effective top tube. Values prioritize RideDNA calculations. * RideDNA calculated (including corrections where published values differ). Unmarked values are manufacturer-published; matching independently calculated values are identified in their source notes. † Manufacturer did not publish this dimension; † alone means no reliable value is available. ‡ Staff reference or source not confirmed; see the source note. Open Geometry Audit for the original published values, calculated geometry, and deltas.
Size-to-size changes
Differences are calculated from the recorded values; they are not fit recommendations.
- Topstone Carbon geometry: 47.0 → 51.0 — Reach +8.9 mm, Stack +6.9 mm, ETT +11 mm, HTA +0.8 °, STA +0 °, Trail -6 mm, Wheelbase +3.5 mm, Chainstay +0 mm, BB drop +0 mm, BB height -1.8 mm, Front center +3.5 mm, Fork offset +0 mm, Head tube +4 mm, Seat tube +36 mm, Standover +18.9 mm, Fork length +0 mm, Wheel flop -2.7 mm
- Topstone Carbon geometry: 51.0 → 54.0 — Reach +5.6 mm, Stack +17.8 mm, ETT +11 mm, HTA +0 °, STA +0 °, Trail +0 mm, Wheelbase +13.5 mm, Chainstay +0 mm, BB drop -3 mm, BB height +3 mm, Front center +12.4 mm, Fork offset +0 mm, Head tube +22 mm, Seat tube +36 mm, Standover +29.1 mm, Fork length +0 mm, Wheel flop +0 mm
- Topstone Carbon geometry: 54.0 → 56.0 — Reach +4.5 mm, Stack +17.9 mm, ETT +10 mm, HTA +0 °, STA +0 °, Trail +0 mm, Wheelbase +10.8 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +10.7 mm, Fork offset +0 mm, Head tube +19 mm, Seat tube +36 mm, Standover +26.2 mm, Fork length +0 mm, Wheel flop +0 mm
- Topstone Carbon geometry: 56.0 → 58.0 — Reach +6.3 mm, Stack +18.8 mm, ETT +12 mm, HTA +0 °, STA +0 °, Trail +0 mm, Wheelbase +13.9 mm, Chainstay +0 mm, BB drop -2 mm, BB height +2 mm, Front center +13.3 mm, Fork offset +0 mm, Head tube +22 mm, Seat tube +36 mm, Standover +28.6 mm, Fork length +0 mm, Wheel flop +0 mm
- Topstone Carbon geometry: 58.0 → 61.0 — Reach +7.9 mm, Stack +30.2 mm, ETT +17 mm, HTA +0 °, STA +0 °, Trail +0 mm, Wheelbase +18.4 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +18.3 mm, Fork offset +0 mm, Head tube +32 mm, Seat tube +36 mm, Standover +32.3 mm, Fork length +0 mm, Wheel flop +0 mm
RideDNA-derived values
These deterministic calculations use the recorded inputs above. They are separate from recorded facts and are not fit recommendations.
- Topstone Carbon geometry size 54.0 stack Reach Ratio: 1.53
- Topstone Carbon geometry size 58.0 stack Reach Ratio: 1.58
- Topstone Carbon geometry size 61.0 stack Reach Ratio: 1.63
- Topstone Carbon geometry size 51.0 stack Reach Ratio: 1.51
- Topstone Carbon geometry size 47.0 stack Reach Ratio: 1.52
- Topstone Carbon geometry size 56.0 stack Reach Ratio: 1.56
Bike details
- competitor Model Id
- 91004cba-0eb3-4033-8438-8906a733d547
