Canyon Inflite CFR 2026

Compare size-specific bike geometry, including reach, stack, angles, wheelbase and the measurements that influence fit and handling.

Canyon › Inflite CFR › Standard › Inflite CFR

Inflite CFR geometry measurements

Choose the recorded size and configuration. Geometry figures can change by size; RideDNA does not collapse those values into one misleading answer.

What is the reach of the Canyon Inflite CFR 2026?

Reach is the horizontal distance from the bottom bracket to the top of the head tube. Also searched as frame reach.

Configuration	Size	Reach	Source
Inflite CFR geometry	XS	376 mm	Manufacturer-published
Inflite CFR geometry	M	392.6 mm	RideDNA-derived
Inflite CFR geometry	XL	418.4 mm	RideDNA-derived
Inflite CFR geometry	S	387.9 mm	RideDNA-derived
Inflite CFR geometry	L	402.4 mm	RideDNA-derived
Inflite CFR geometry	2XL	428.2 mm	RideDNA-derived

What is the stack of the Canyon Inflite CFR 2026?

Stack is the vertical distance from the bottom bracket to the top of the head tube. Also searched as frame stack.

Configuration	Size	Stack	Source
Inflite CFR geometry	XS	526.7 mm	RideDNA-derived
Inflite CFR geometry	M	571.8 mm	RideDNA-derived
Inflite CFR geometry	XL	616.5 mm	RideDNA-derived
Inflite CFR geometry	S	547.2 mm	RideDNA-derived
Inflite CFR geometry	L	592.8 mm	RideDNA-derived
Inflite CFR geometry	2XL	637.5 mm	RideDNA-derived

What is the effective top tube of the Canyon Inflite CFR 2026?

Effective top tube is the horizontal distance between the head-tube and seat-tube centerlines. Also searched as ETT, virtual top tube, horizontal top tube.

Configuration	Size	Effective top tube	Source
Inflite CFR geometry	XS	532 mm	Recorded geometry
Inflite CFR geometry	M	562 mm	Recorded geometry
Inflite CFR geometry	XL	601 mm	Recorded geometry
Inflite CFR geometry	S	550 mm	Recorded geometry
Inflite CFR geometry	L	578 mm	Recorded geometry
Inflite CFR geometry	2XL	617 mm	Recorded geometry

What is the head tube angle of the Canyon Inflite CFR 2026?

Head tube angle describes the steering-axis angle relative to the ground. Also searched as HTA, head angle, steering angle.

Configuration	Size	Head tube angle	Source
Inflite CFR geometry	XS	71 °	Recorded geometry
Inflite CFR geometry	M	72.5 °	Recorded geometry
Inflite CFR geometry	XL	72.7 °	Recorded geometry
Inflite CFR geometry	S	72.25 °	Recorded geometry
Inflite CFR geometry	L	72.5 °	Recorded geometry
Inflite CFR geometry	2XL	72.7 °	Recorded geometry

What is the seat tube angle of the Canyon Inflite CFR 2026?

Seat tube angle describes the seat-tube angle relative to the ground. Also searched as STA, seat angle, effective seat angle.

Configuration	Size	Seat tube angle	Source
Inflite CFR geometry	XS	73.5 °	Recorded geometry
Inflite CFR geometry	M	73.5 °	Recorded geometry
Inflite CFR geometry	XL	73.5 °	Recorded geometry
Inflite CFR geometry	S	73.5 °	Recorded geometry
Inflite CFR geometry	L	73.5 °	Recorded geometry
Inflite CFR geometry	2XL	73.5 °	Recorded geometry

What is the trail of the Canyon Inflite CFR 2026?

Trail is the ground distance between the steering-axis intercept and the front tire contact point. Also searched as fork trail, mechanical trail.

Configuration	Size	Trail	Source
Inflite CFR geometry	XS	73.1 mm	RideDNA-derived
Inflite CFR geometry	M	63.5 mm	RideDNA-derived
Inflite CFR geometry	XL	62.2 mm	RideDNA-derived
Inflite CFR geometry	S	65.1 mm	RideDNA-derived
Inflite CFR geometry	L	63.5 mm	RideDNA-derived
Inflite CFR geometry	2XL	62.2 mm	RideDNA-derived

What is the wheelbase of the Canyon Inflite CFR 2026?

Wheelbase is the distance between the front and rear wheel axles. Also searched as axle-to-axle length.

Configuration	Size	Wheelbase	Source
Inflite CFR geometry	XS	999.8 mm	RideDNA-derived
Inflite CFR geometry	M	1017.9 mm	RideDNA-derived
Inflite CFR geometry	XL	1055.6 mm	RideDNA-derived
Inflite CFR geometry	S	1006.8 mm	RideDNA-derived
Inflite CFR geometry	L	1034.3 mm	RideDNA-derived
Inflite CFR geometry	2XL	1071.9 mm	RideDNA-derived

What is the chainstay length of the Canyon Inflite CFR 2026?

Chainstay length, also called rear center, is the distance from the bottom bracket to the rear axle. Also searched as Chainstay, rear center, rear centre.

Configuration	Size	Chainstay length	Source
Inflite CFR geometry	XS	425 mm	Recorded geometry
Inflite CFR geometry	M	425 mm	Recorded geometry
Inflite CFR geometry	XL	425 mm	Recorded geometry
Inflite CFR geometry	S	425 mm	Recorded geometry
Inflite CFR geometry	L	425 mm	Recorded geometry
Inflite CFR geometry	2XL	425 mm	Recorded geometry

What is the bottom bracket drop of the Canyon Inflite CFR 2026?

Bottom bracket drop is the vertical distance from the wheel-axle line down to the bottom bracket. Also searched as BB drop.

Configuration	Size	Bottom bracket drop	Source
Inflite CFR geometry	XS	66 mm	RideDNA-derived
Inflite CFR geometry	M	64 mm	RideDNA-derived
Inflite CFR geometry	XL	64 mm	RideDNA-derived
Inflite CFR geometry	S	66 mm	RideDNA-derived
Inflite CFR geometry	L	64 mm	RideDNA-derived
Inflite CFR geometry	2XL	64 mm	RideDNA-derived

What is the bottom bracket height of the Canyon Inflite CFR 2026?

Bottom bracket height is the vertical distance from the ground to the bottom bracket. Also searched as BB height.

Configuration	Size	Bottom bracket height	Source
Inflite CFR geometry	XS	278 mm	RideDNA-derived
Inflite CFR geometry	M	280 mm	RideDNA-derived
Inflite CFR geometry	XL	280 mm	RideDNA-derived
Inflite CFR geometry	S	278 mm	RideDNA-derived
Inflite CFR geometry	L	280 mm	RideDNA-derived
Inflite CFR geometry	2XL	280 mm	RideDNA-derived

What is the front center of the Canyon Inflite CFR 2026?

Front center is the distance from the bottom bracket to the front wheel axle. Also searched as front centre.

Configuration	Size	Front center	Source
Inflite CFR geometry	XS	583.7 mm	RideDNA-derived
Inflite CFR geometry	M	601.1 mm	RideDNA-derived
Inflite CFR geometry	XL	638.6 mm	RideDNA-derived
Inflite CFR geometry	S	590.7 mm	RideDNA-derived
Inflite CFR geometry	L	617.4 mm	RideDNA-derived
Inflite CFR geometry	2XL	654.9 mm	RideDNA-derived

What is the fork offset of the Canyon Inflite CFR 2026?

Fork offset is the perpendicular distance between the steering axis and the front axle. Also searched as fork rake, rake.

Configuration	Size	Fork offset	Source
Inflite CFR geometry	XS	42.9 mm	RideDNA-derived
Inflite CFR geometry	M	42.9 mm	RideDNA-derived
Inflite CFR geometry	XL	42.9 mm	RideDNA-derived
Inflite CFR geometry	S	42.9 mm	RideDNA-derived
Inflite CFR geometry	L	42.9 mm	RideDNA-derived
Inflite CFR geometry	2XL	42.9 mm	RideDNA-derived

What is the head tube length of the Canyon Inflite CFR 2026?

Head tube length is the measured length of the frame's head tube. Also searched as Head tube, head tube.

Configuration	Size	Head tube length	Source
Inflite CFR geometry	XS	102 mm	Recorded geometry
Inflite CFR geometry	M	146 mm	Recorded geometry
Inflite CFR geometry	XL	192 mm	Recorded geometry
Inflite CFR geometry	S	119 mm	Recorded geometry
Inflite CFR geometry	L	168 mm	Recorded geometry
Inflite CFR geometry	2XL	214 mm	Recorded geometry

What is the seat tube length of the Canyon Inflite CFR 2026?

Seat tube length is the recorded length of the frame's seat tube; measurement conventions can differ by manufacturer. Also searched as Seat tube, seat tube, frame size.

Configuration	Size	Seat tube length	Source
Inflite CFR geometry	XS	482 mm	Recorded geometry
Inflite CFR geometry	M	542 mm	Recorded geometry
Inflite CFR geometry	XL	602 mm	Recorded geometry
Inflite CFR geometry	S	512 mm	Recorded geometry
Inflite CFR geometry	L	572 mm	Recorded geometry
Inflite CFR geometry	2XL	632 mm	Recorded geometry

What is the standover height of the Canyon Inflite CFR 2026?

Standover height is the ground-to-top-tube height at the manufacturer's stated measurement point. Also searched as Standover, stand over height, standover clearance.

Configuration	Size	Standover height	Source
Inflite CFR geometry	XS	746 mm	RideDNA-derived
Inflite CFR geometry	M	799.4 mm	RideDNA-derived
Inflite CFR geometry	XL	850.5 mm	RideDNA-derived
Inflite CFR geometry	S	770.7 mm	RideDNA-derived
Inflite CFR geometry	L	824.3 mm	RideDNA-derived
Inflite CFR geometry	2XL	875.4 mm	RideDNA-derived

What is the fork length of the Canyon Inflite CFR 2026?

Fork length is the axle-to-crown distance recorded for the fork. Also searched as axle to crown, A2C.

Configuration	Size	Fork length	Source
Inflite CFR geometry	XS	400 mm	RideDNA-derived
Inflite CFR geometry	M	400 mm	RideDNA-derived
Inflite CFR geometry	XL	400 mm	RideDNA-derived
Inflite CFR geometry	S	400 mm	RideDNA-derived
Inflite CFR geometry	L	400 mm	RideDNA-derived
Inflite CFR geometry	2XL	400 mm	RideDNA-derived

What is the wheel flop of the Canyon Inflite CFR 2026?

Wheel flop is a calculated steering-geometry value based on trail and head tube angle. Also searched as flop.

Configuration	Size	Wheel flop	Source
Inflite CFR geometry	XS	22.5 mm	RideDNA-derived
Inflite CFR geometry	M	18.2 mm	RideDNA-derived
Inflite CFR geometry	XL	17.7 mm	RideDNA-derived
Inflite CFR geometry	S	18.9 mm	RideDNA-derived
Inflite CFR geometry	L	18.2 mm	RideDNA-derived
Inflite CFR geometry	2XL	17.7 mm	RideDNA-derived

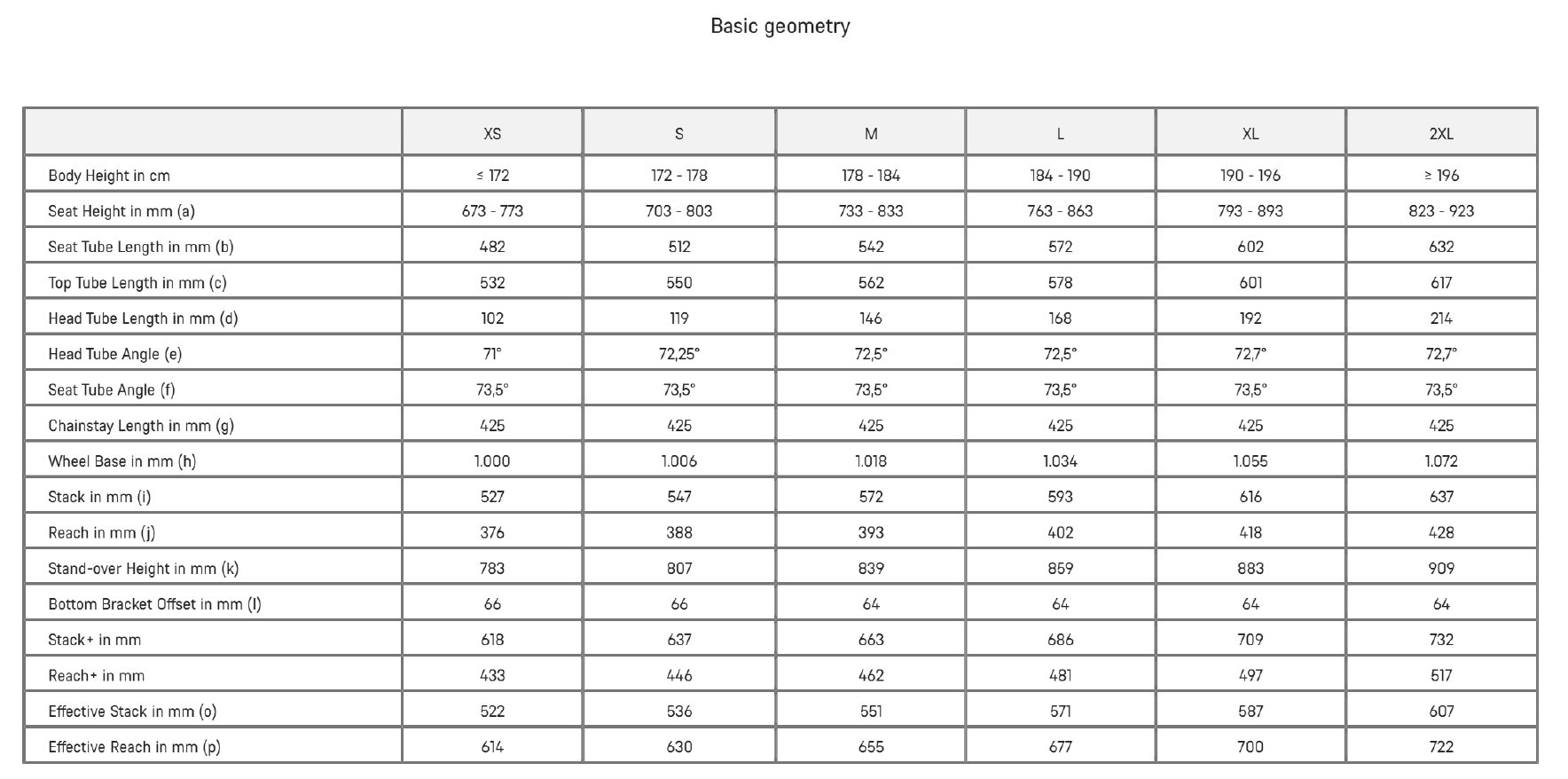

Geometry

Available sizes: XS, M, XL, S, L, 2XL.

Inflite CFR geometry

Jump to size: XS · S · M · L · XL · 2XL

Inflite CFR geometry geometry by size
Size	Reach	Stack	ETT	HTA	STA	Trail	Wheelbase	Chainstay	BB drop	BB height	Front center	Fork offset	Head tube	Seat tube	Standover	Fork length	Wheel flop	Max tire
XS	376 mm	526.7 mm^*	532 mm^‡	71 °^‡	73.5 °^‡	73.1 mm^*†	999.8 mm^*	425 mm^‡	66 mm^*†	278 mm^*†	583.7 mm^*†	42.9 mm^*†	102 mm^‡	482 mm^‡	746 mm^*	400 mm^*†	22.5 mm^*†	†
S	387.9 mm^*	547.2 mm^*	550 mm^‡	72.25 °^‡	73.5 °^‡	65.1 mm^*†	1006.8 mm^*	425 mm^‡	66 mm^*†	278 mm^*†	590.7 mm^*†	42.9 mm^*†	119 mm^‡	512 mm^‡	770.7 mm^*	400 mm^*†	18.9 mm^*†	†
M	392.6 mm^*	571.8 mm^*	562 mm^‡	72.5 °^‡	73.5 °^‡	63.5 mm^*†	1017.9 mm^*	425 mm^‡	64 mm^*†	280 mm^*†	601.1 mm^*†	42.9 mm^*†	146 mm^‡	542 mm^‡	799.4 mm^*	400 mm^*†	18.2 mm^*†	†
L	402.4 mm^*	592.8 mm^*	578 mm^‡	72.5 °^‡	73.5 °^‡	63.5 mm^*†	1034.3 mm^*	425 mm^‡	64 mm^*†	280 mm^*†	617.4 mm^*†	42.9 mm^*†	168 mm^‡	572 mm^‡	824.3 mm^*	400 mm^*†	18.2 mm^*†	†
XL	418.4 mm^*	616.5 mm^*	601 mm^‡	72.7 °^‡	73.5 °^‡	62.2 mm^*†	1055.6 mm^*	425 mm^‡	64 mm^*†	280 mm^*†	638.6 mm^*†	42.9 mm^*†	192 mm^‡	602 mm^‡	850.5 mm^*	400 mm^*†	17.7 mm^*†	†
2XL	428.2 mm^*	637.5 mm^*	617 mm^‡	72.7 °^‡	73.5 °^‡	62.2 mm^*†	1071.9 mm^*	425 mm^‡	64 mm^*†	280 mm^*†	654.9 mm^*†	42.9 mm^*†	214 mm^‡	632 mm^‡	875.4 mm^*†	400 mm^*†	17.7 mm^*†	†

Length measurements are in millimeters; HTA and STA are in degrees. ETT means effective top tube. Values prioritize RideDNA calculations. * RideDNA calculated (including corrections where published values differ). Unmarked values are manufacturer-published; matching independently calculated values are identified in their source notes. † Manufacturer did not publish this dimension; † alone means no reliable value is available. ‡ Staff reference or source not confirmed; see the source note. Open Geometry Audit for the original published values, calculated geometry, and deltas.

Size-to-size changes

Differences are calculated from the recorded values; they are not fit recommendations.

Inflite CFR geometry: XS → S — Reach +11.9 mm, Stack +20.5 mm, ETT +18 mm, HTA +1.25 °, STA +0 °, Trail -8 mm, Wheelbase +7 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +7 mm, Fork offset +0 mm, Head tube +17 mm, Seat tube +30 mm, Standover +24.7 mm, Fork length +0 mm, Wheel flop -3.6 mm
Inflite CFR geometry: S → M — Reach +4.7 mm, Stack +24.6 mm, ETT +12 mm, HTA +0.25 °, STA +0 °, Trail -1.6 mm, Wheelbase +11.1 mm, Chainstay +0 mm, BB drop -2 mm, BB height +2 mm, Front center +10.4 mm, Fork offset +0 mm, Head tube +27 mm, Seat tube +30 mm, Standover +28.7 mm, Fork length +0 mm, Wheel flop -0.7 mm
Inflite CFR geometry: M → L — Reach +9.8 mm, Stack +21 mm, ETT +16 mm, HTA +0 °, STA +0 °, Trail +0 mm, Wheelbase +16.4 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +16.3 mm, Fork offset +0 mm, Head tube +22 mm, Seat tube +30 mm, Standover +24.9 mm, Fork length +0 mm, Wheel flop +0 mm
Inflite CFR geometry: L → XL — Reach +16 mm, Stack +23.7 mm, ETT +23 mm, HTA +0.2 °, STA +0 °, Trail -1.3 mm, Wheelbase +21.3 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +21.2 mm, Fork offset +0 mm, Head tube +24 mm, Seat tube +30 mm, Standover +26.2 mm, Fork length +0 mm, Wheel flop -0.5 mm
Inflite CFR geometry: XL → 2XL — Reach +9.8 mm, Stack +21 mm, ETT +16 mm, HTA +0 °, STA +0 °, Trail +0 mm, Wheelbase +16.3 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +16.3 mm, Fork offset +0 mm, Head tube +22 mm, Seat tube +30 mm, Standover +24.9 mm, Fork length +0 mm, Wheel flop +0 mm

RideDNA-derived values

These deterministic calculations use the recorded inputs above. They are separate from recorded facts and are not fit recommendations.

Inflite CFR geometry size XS stack Reach Ratio: 1.4
Inflite CFR geometry size M stack Reach Ratio: 1.46
Inflite CFR geometry size XL stack Reach Ratio: 1.47
Inflite CFR geometry size S stack Reach Ratio: 1.41
Inflite CFR geometry size L stack Reach Ratio: 1.47
Inflite CFR geometry size 2XL stack Reach Ratio: 1.49
