bike geometry

Cervelo Aspero 2026

Compare size-specific bike geometry, including reach, stack, angles, wheelbase and the measurements that influence fit and handling.

Cervelo › Aspero › Standard › Aspero

Aspero geometry measurements

Choose the recorded size and configuration. Geometry figures can change by size; RideDNA does not collapse those values into one misleading answer.

What is the reach of the Cervelo Aspero 2026?

Reach is the horizontal distance from the bottom bracket to the top of the head tube. Also searched as frame reach.

Configuration	Size	Reach	Source
Aspero geometry	54	388.5 mm	RideDNA-derived
Aspero geometry	61	415.5 mm	RideDNA-derived
Aspero geometry	48	372 mm	RideDNA-derived
Aspero geometry	56	397.7 mm	RideDNA-derived
Aspero geometry	51	379.9 mm	RideDNA-derived
Aspero geometry	58	406 mm	Manufacturer-published

What is the stack of the Cervelo Aspero 2026?

Stack is the vertical distance from the bottom bracket to the top of the head tube. Also searched as frame stack.

Configuration	Size	Stack	Source
Aspero geometry	54	555.3 mm	RideDNA-derived
Aspero geometry	61	629.8 mm	RideDNA-derived
Aspero geometry	48	504.8 mm	RideDNA-derived
Aspero geometry	56	580 mm	Manufacturer-published
Aspero geometry	51	530.3 mm	RideDNA-derived
Aspero geometry	58	605.1 mm	RideDNA-derived

What is the effective top tube of the Cervelo Aspero 2026?

Effective top tube is the horizontal distance between the head-tube and seat-tube centerlines. Also searched as ETT, virtual top tube, horizontal top tube.

Configuration	Size	Effective top tube	Source
Aspero geometry	54	553 mm	Recorded geometry
Aspero geometry	61	608 mm	Recorded geometry
Aspero geometry	48	512 mm	Recorded geometry
Aspero geometry	56	575 mm	Recorded geometry
Aspero geometry	51	532 mm	Recorded geometry
Aspero geometry	58	591 mm	Recorded geometry

What is the head tube angle of the Cervelo Aspero 2026?

Head tube angle describes the steering-axis angle relative to the ground. Also searched as HTA, head angle, steering angle.

Configuration	Size	Head tube angle	Source
Aspero geometry	54	72 °	Recorded geometry
Aspero geometry	61	72 °	Recorded geometry
Aspero geometry	48	71 °	Recorded geometry
Aspero geometry	56	72 °	Recorded geometry
Aspero geometry	51	71.5 °	Recorded geometry
Aspero geometry	58	72 °	Recorded geometry

What is the seat tube angle of the Cervelo Aspero 2026?

Seat tube angle describes the seat-tube angle relative to the ground. Also searched as STA, seat angle, effective seat angle.

Configuration	Size	Seat tube angle	Source
Aspero geometry	54	73.5 °	Recorded geometry
Aspero geometry	61	73 °	Recorded geometry
Aspero geometry	48	74.5 °	Recorded geometry
Aspero geometry	56	73 °	Recorded geometry
Aspero geometry	51	74 °	Recorded geometry
Aspero geometry	58	73 °	Recorded geometry

What is the trail of the Cervelo Aspero 2026?

Trail is the ground distance between the steering-axis intercept and the front tire contact point. Also searched as fork trail, mechanical trail.

Configuration	Size	Trail	Source
Aspero geometry	54	62 mm	Manufacturer-published
Aspero geometry	61	62 mm	Manufacturer-published
Aspero geometry	48	62.3 mm	RideDNA-derived
Aspero geometry	56	62 mm	Manufacturer-published
Aspero geometry	51	62.2 mm	RideDNA-derived
Aspero geometry	58	62 mm	Manufacturer-published

What is the wheelbase of the Cervelo Aspero 2026?

Wheelbase is the distance between the front and rear wheel axles. Also searched as axle-to-axle length.

Configuration	Size	Wheelbase	Source
Aspero geometry	54	1016 mm	RideDNA-derived
Aspero geometry	61	1068.4 mm	RideDNA-derived
Aspero geometry	48	996.8 mm	RideDNA-derived
Aspero geometry	56	1033.2 mm	RideDNA-derived
Aspero geometry	51	1005.7 mm	RideDNA-derived
Aspero geometry	58	1050.9 mm	RideDNA-derived

What is the chainstay length of the Cervelo Aspero 2026?

Chainstay length, also called rear center, is the distance from the bottom bracket to the rear axle. Also searched as Chainstay, rear center, rear centre.

Configuration	Size	Chainstay length	Source
Aspero geometry	54	425 mm	Recorded geometry
Aspero geometry	61	425 mm	Recorded geometry
Aspero geometry	48	425 mm	Recorded geometry
Aspero geometry	56	425 mm	Recorded geometry
Aspero geometry	51	425 mm	Recorded geometry
Aspero geometry	58	425 mm	Recorded geometry

What is the bottom bracket drop of the Cervelo Aspero 2026?

Bottom bracket drop is the vertical distance from the wheel-axle line down to the bottom bracket. Also searched as BB drop.

Configuration	Size	Bottom bracket drop	Source
Aspero geometry	54	76 mm	Recorded geometry
Aspero geometry	61	73.5 mm	Recorded geometry
Aspero geometry	48	78.5 mm	Recorded geometry
Aspero geometry	56	76 mm	Recorded geometry
Aspero geometry	51	78.5 mm	Recorded geometry
Aspero geometry	58	73.5 mm	Recorded geometry

What is the bottom bracket height of the Cervelo Aspero 2026?

Bottom bracket height is the vertical distance from the ground to the bottom bracket. Also searched as BB height.

Configuration	Size	Bottom bracket height	Source
Aspero geometry	54	280 mm	RideDNA-derived
Aspero geometry	61	282.5 mm	RideDNA-derived
Aspero geometry	48	277.5 mm	RideDNA-derived
Aspero geometry	56	280 mm	RideDNA-derived
Aspero geometry	51	277.5 mm	RideDNA-derived
Aspero geometry	58	282.5 mm	RideDNA-derived

What is the front center of the Cervelo Aspero 2026?

Front center is the distance from the bottom bracket to the front wheel axle. Also searched as front centre.

Configuration	Size	Front center	Source
Aspero geometry	54	602.7 mm	RideDNA-derived
Aspero geometry	61	654 mm	RideDNA-derived
Aspero geometry	48	584.4 mm	RideDNA-derived
Aspero geometry	56	619.7 mm	RideDNA-derived
Aspero geometry	51	593.3 mm	RideDNA-derived
Aspero geometry	58	636.6 mm	RideDNA-derived

What is the fork offset of the Cervelo Aspero 2026?

Fork offset is the perpendicular distance between the steering axis and the front axle. Also searched as fork rake, rake.

Configuration	Size	Fork offset	Source
Aspero geometry	54	51 mm	Manufacturer-published
Aspero geometry	61	51 mm	Manufacturer-published
Aspero geometry	48	57 mm	Manufacturer-published
Aspero geometry	56	51 mm	Manufacturer-published
Aspero geometry	51	54 mm	Manufacturer-published
Aspero geometry	58	51 mm	Manufacturer-published

What is the head tube length of the Cervelo Aspero 2026?

Head tube length is the measured length of the frame's head tube. Also searched as Head tube, head tube.

Configuration	Size	Head tube length	Source
Aspero geometry	54	133 mm	Recorded geometry
Aspero geometry	61	214 mm	Recorded geometry
Aspero geometry	48	83 mm	Recorded geometry
Aspero geometry	56	159 mm	Recorded geometry
Aspero geometry	51	107 mm	Recorded geometry
Aspero geometry	58	188 mm	Recorded geometry

What is the seat tube length of the Cervelo Aspero 2026?

Seat tube length is the recorded length of the frame's seat tube; measurement conventions can differ by manufacturer. Also searched as Seat tube, seat tube, frame size.

Configuration	Size	Seat tube length	Source
Aspero geometry	54	540 mm	Recorded geometry
Aspero geometry	61	610 mm	Recorded geometry
Aspero geometry	48	480 mm	Recorded geometry
Aspero geometry	56	560 mm	Recorded geometry
Aspero geometry	51	510 mm	Recorded geometry
Aspero geometry	58	580 mm	Recorded geometry

What is the standover height of the Cervelo Aspero 2026?

Standover height is the ground-to-top-tube height at the manufacturer's stated measurement point. Also searched as Standover, stand over height, standover clearance.

Configuration	Size	Standover height	Source
Aspero geometry	54	733 mm	Manufacturer-published
Aspero geometry	61	808 mm	Manufacturer-published
Aspero geometry	48	681 mm	Manufacturer-published
Aspero geometry	56	757 mm	Manufacturer-published
Aspero geometry	51	704 mm	Manufacturer-published
Aspero geometry	58	784 mm	Manufacturer-published

What is the fork length of the Cervelo Aspero 2026?

Fork length is the axle-to-crown distance recorded for the fork. Also searched as axle to crown, A2C.

Configuration	Size	Fork length	Source
Aspero geometry	54	387.5 mm	RideDNA-derived
Aspero geometry	61	387.5 mm	RideDNA-derived
Aspero geometry	48	387.5 mm	RideDNA-derived
Aspero geometry	56	387.5 mm	RideDNA-derived
Aspero geometry	51	387.5 mm	RideDNA-derived
Aspero geometry	58	387.5 mm	RideDNA-derived

What is the wheel flop of the Cervelo Aspero 2026?

Wheel flop is a calculated steering-geometry value based on trail and head tube angle. Also searched as flop.

Configuration	Size	Wheel flop	Source
Aspero geometry	54	18.2 mm	RideDNA-derived
Aspero geometry	61	18.2 mm	RideDNA-derived
Aspero geometry	48	19.2 mm	RideDNA-derived
Aspero geometry	56	18.2 mm	RideDNA-derived
Aspero geometry	51	18.7 mm	RideDNA-derived
Aspero geometry	58	18.2 mm	RideDNA-derived

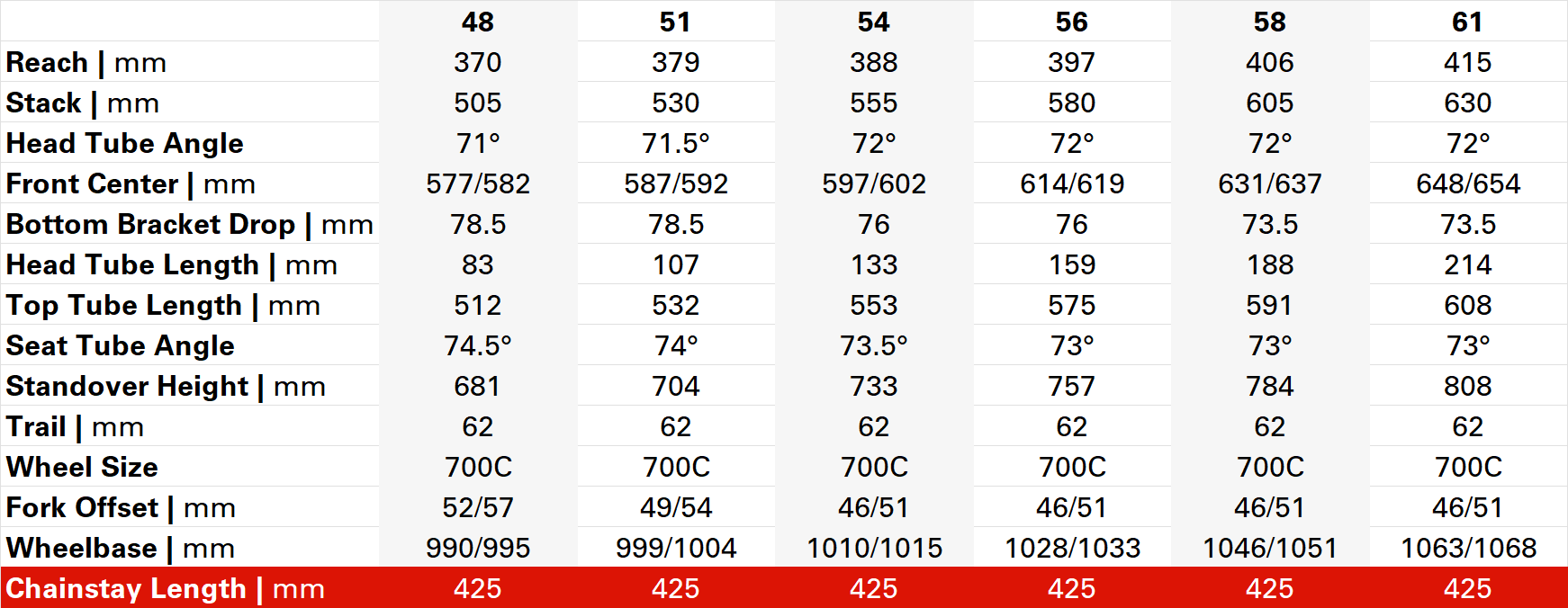

Geometry

Available sizes: 54, 61, 48, 56, 51, 58.

Aspero geometry

Jump to size: 48 · 51 · 54 · 56 · 58 · 61

Aspero geometry geometry by size
Size	Reach	Stack	ETT	HTA	STA	Trail	Wheelbase	Chainstay	BB drop	BB height	Front center	Fork offset	Head tube	Seat tube	Standover	Fork length	Wheel flop	Max tire
48	372 mm^*	504.8 mm^*	512 mm^‡	71 °^‡	74.5 °^‡	62.3 mm^*	996.8 mm^*	425 mm^‡	78.5 mm^‡†	277.5 mm^*†	584.4 mm^*	57 mm	83 mm^‡	480 mm^‡	681 mm	387.5 mm^*†	19.2 mm^*†	†
51	379.9 mm^*	530.3 mm^*	532 mm^‡	71.5 °^‡	74 °^‡	62.2 mm^*	1005.7 mm^*	425 mm^‡	78.5 mm^‡†	277.5 mm^*†	593.3 mm^*	54 mm	107 mm^‡	510 mm^‡	704 mm	387.5 mm^*†	18.7 mm^*†	†
54	388.5 mm^*	555.3 mm^*	553 mm^‡	72 °^‡	73.5 °^‡	62 mm	1016 mm^*	425 mm^‡	76 mm^‡†	280 mm^*†	602.7 mm^*	51 mm	133 mm^‡	540 mm^‡	733 mm	387.5 mm^*†	18.2 mm^*†	†
56	397.7 mm^*	580 mm	575 mm^‡	72 °^‡	73 °^‡	62 mm	1033.2 mm^*	425 mm^‡	76 mm^‡†	280 mm^*†	619.7 mm^*	51 mm	159 mm^‡	560 mm^‡	757 mm	387.5 mm^*†	18.2 mm^*†	†
58	406 mm	605.1 mm^*	591 mm^‡	72 °^‡	73 °^‡	62 mm	1050.9 mm^*	425 mm^‡	73.5 mm^‡†	282.5 mm^*†	636.6 mm^*	51 mm	188 mm^‡	580 mm^‡	784 mm	387.5 mm^*†	18.2 mm^*†	†
61	415.5 mm^*	629.8 mm^*	608 mm^‡	72 °^‡	73 °^‡	62 mm	1068.4 mm^*	425 mm^‡	73.5 mm^‡†	282.5 mm^*†	654 mm^*	51 mm	214 mm^‡	610 mm^‡	808 mm	387.5 mm^*†	18.2 mm^*†	†

Length measurements are in millimeters; HTA and STA are in degrees. ETT means effective top tube. Values prioritize RideDNA calculations. * RideDNA calculated (including corrections where published values differ). Unmarked values are manufacturer-published; matching independently calculated values are identified in their source notes. † Manufacturer did not publish this dimension; † alone means no reliable value is available. ‡ Staff reference or source not confirmed; see the source note. Open Geometry Audit for the original published values, calculated geometry, and deltas.

Size-to-size changes

Differences are calculated from the recorded values; they are not fit recommendations.

Aspero geometry: 48 → 51 — Reach +7.9 mm, Stack +25.5 mm, ETT +20 mm, HTA +0.5 °, STA -0.5 °, Trail -0.1 mm, Wheelbase +8.9 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +8.9 mm, Fork offset -3 mm, Head tube +24 mm, Seat tube +30 mm, Standover +23 mm, Fork length +0 mm, Wheel flop -0.5 mm
Aspero geometry: 51 → 54 — Reach +8.6 mm, Stack +25 mm, ETT +21 mm, HTA +0.5 °, STA -0.5 °, Trail -0.2 mm, Wheelbase +10.3 mm, Chainstay +0 mm, BB drop -2.5 mm, BB height +2.5 mm, Front center +9.4 mm, Fork offset -3 mm, Head tube +26 mm, Seat tube +30 mm, Standover +29 mm, Fork length +0 mm, Wheel flop -0.5 mm
Aspero geometry: 54 → 56 — Reach +9.2 mm, Stack +24.7 mm, ETT +22 mm, HTA +0 °, STA -0.5 °, Trail +0 mm, Wheelbase +17.2 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +17 mm, Fork offset +0 mm, Head tube +26 mm, Seat tube +20 mm, Standover +24 mm, Fork length +0 mm, Wheel flop +0 mm
Aspero geometry: 56 → 58 — Reach +8.3 mm, Stack +25.1 mm, ETT +16 mm, HTA +0 °, STA +0 °, Trail +0 mm, Wheelbase +17.7 mm, Chainstay +0 mm, BB drop -2.5 mm, BB height +2.5 mm, Front center +16.9 mm, Fork offset +0 mm, Head tube +29 mm, Seat tube +20 mm, Standover +27 mm, Fork length +0 mm, Wheel flop +0 mm
Aspero geometry: 58 → 61 — Reach +9.5 mm, Stack +24.7 mm, ETT +17 mm, HTA +0 °, STA +0 °, Trail +0 mm, Wheelbase +17.5 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +17.4 mm, Fork offset +0 mm, Head tube +26 mm, Seat tube +30 mm, Standover +24 mm, Fork length +0 mm, Wheel flop +0 mm

RideDNA-derived values

These deterministic calculations use the recorded inputs above. They are separate from recorded facts and are not fit recommendations.

Aspero geometry size 54 stack Reach Ratio: 1.43
Aspero geometry size 61 stack Reach Ratio: 1.52
Aspero geometry size 48 stack Reach Ratio: 1.36
Aspero geometry size 56 stack Reach Ratio: 1.46
Aspero geometry size 51 stack Reach Ratio: 1.4
Aspero geometry size 58 stack Reach Ratio: 1.49
