Colnago V5Rs 2026

Compare size-specific bike geometry, including reach, stack, angles, wheelbase and the measurements that influence fit and handling.

Colnago › V5Rs › Standard › V5Rs

V5Rs geometry measurements

Choose the recorded size and configuration. Geometry figures can change by size; RideDNA does not collapse those values into one misleading answer.

What is the reach of the Colnago V5Rs 2026?

Reach is the horizontal distance from the bottom bracket to the top of the head tube. Also searched as frame reach.

Configuration	Size	Reach	Source
V5Rs geometry	510	389.6 mm	RideDNA-derived
V5Rs geometry	530	397 mm	Manufacturer-published
V5Rs geometry	420	371.3 mm	RideDNA-derived
V5Rs geometry	485	383.9 mm	RideDNA-derived
V5Rs geometry	550	402.3 mm	RideDNA-derived
V5Rs geometry	455	376.8 mm	RideDNA-derived
V5Rs geometry	570	411.4 mm	RideDNA-derived

What is the stack of the Colnago V5Rs 2026?

Stack is the vertical distance from the bottom bracket to the top of the head tube. Also searched as frame stack.

Configuration	Size	Stack	Source
V5Rs geometry	510	556.7 mm	RideDNA-derived
V5Rs geometry	530	574.9 mm	RideDNA-derived
V5Rs geometry	420	509.2 mm	RideDNA-derived
V5Rs geometry	485	537.9 mm	RideDNA-derived
V5Rs geometry	550	593 mm	Manufacturer-published
V5Rs geometry	455	522.8 mm	RideDNA-derived
V5Rs geometry	570	612.1 mm	RideDNA-derived

What is the effective top tube of the Colnago V5Rs 2026?

Effective top tube is the horizontal distance between the head-tube and seat-tube centerlines. Also searched as ETT, virtual top tube, horizontal top tube.

Configuration	Size	Effective top tube	Source
V5Rs geometry	510	544 mm	Recorded geometry
V5Rs geometry	530	564 mm	Recorded geometry
V5Rs geometry	420	503 mm	Recorded geometry
V5Rs geometry	485	530 mm	Recorded geometry
V5Rs geometry	550	578 mm	Recorded geometry
V5Rs geometry	455	514 mm	Recorded geometry
V5Rs geometry	570	595 mm	Recorded geometry

What is the head tube angle of the Colnago V5Rs 2026?

Head tube angle describes the steering-axis angle relative to the ground. Also searched as HTA, head angle, steering angle.

Configuration	Size	Head tube angle	Source
V5Rs geometry	510	72.5 °	Recorded geometry
V5Rs geometry	530	73 °	Recorded geometry
V5Rs geometry	420	70.6 °	Recorded geometry
V5Rs geometry	485	72.3 °	Recorded geometry
V5Rs geometry	550	73 °	Recorded geometry
V5Rs geometry	455	71.5 °	Recorded geometry
V5Rs geometry	570	73.5 °	Recorded geometry

What is the seat tube angle of the Colnago V5Rs 2026?

Seat tube angle describes the seat-tube angle relative to the ground. Also searched as STA, seat angle, effective seat angle.

Configuration	Size	Seat tube angle	Source
V5Rs geometry	510	74.5 °	Recorded geometry
V5Rs geometry	530	73.8 °	Recorded geometry
V5Rs geometry	420	75.5 °	Recorded geometry
V5Rs geometry	485	74.8 °	Recorded geometry
V5Rs geometry	550	73.5 °	Recorded geometry
V5Rs geometry	455	75.3 °	Recorded geometry
V5Rs geometry	570	73.3 °	Recorded geometry

What is the trail of the Colnago V5Rs 2026?

Trail is the ground distance between the steering-axis intercept and the front tire contact point. Also searched as fork trail, mechanical trail.

Configuration	Size	Trail	Source
V5Rs geometry	510	57.6 mm	RideDNA-derived
V5Rs geometry	530	58.7 mm	RideDNA-derived
V5Rs geometry	420	69.6 mm	RideDNA-derived
V5Rs geometry	485	58.9 mm	RideDNA-derived
V5Rs geometry	550	58.7 mm	RideDNA-derived
V5Rs geometry	455	63.9 mm	RideDNA-derived
V5Rs geometry	570	55.6 mm	RideDNA-derived

What is the wheelbase of the Colnago V5Rs 2026?

Wheelbase is the distance between the front and rear wheel axles. Also searched as axle-to-axle length.

Configuration	Size	Wheelbase	Source
V5Rs geometry	510	993.3 mm	RideDNA-derived
V5Rs geometry	530	997.3 mm	RideDNA-derived
V5Rs geometry	420	975.6 mm	RideDNA-derived
V5Rs geometry	485	983.5 mm	RideDNA-derived
V5Rs geometry	550	1008.2 mm	RideDNA-derived
V5Rs geometry	455	977.8 mm	RideDNA-derived
V5Rs geometry	570	1017.8 mm	RideDNA-derived

What is the chainstay length of the Colnago V5Rs 2026?

Chainstay length, also called rear center, is the distance from the bottom bracket to the rear axle. Also searched as Chainstay, rear center, rear centre.

Configuration	Size	Chainstay length	Source
V5Rs geometry	510	408 mm	Recorded geometry
V5Rs geometry	530	408 mm	Recorded geometry
V5Rs geometry	420	408 mm	Recorded geometry
V5Rs geometry	485	408 mm	Recorded geometry
V5Rs geometry	550	408 mm	Recorded geometry
V5Rs geometry	455	408 mm	Recorded geometry
V5Rs geometry	570	408 mm	Recorded geometry

What is the bottom bracket drop of the Colnago V5Rs 2026?

Bottom bracket drop is the vertical distance from the wheel-axle line down to the bottom bracket. Also searched as BB drop.

Configuration	Size	Bottom bracket drop	Source
V5Rs geometry	510	72 mm	Recorded geometry
V5Rs geometry	530	72 mm	Recorded geometry
V5Rs geometry	420	74 mm	Recorded geometry
V5Rs geometry	485	72 mm	Recorded geometry
V5Rs geometry	550	72 mm	Recorded geometry
V5Rs geometry	455	74 mm	Recorded geometry
V5Rs geometry	570	72 mm	Recorded geometry

What is the bottom bracket height of the Colnago V5Rs 2026?

Bottom bracket height is the vertical distance from the ground to the bottom bracket. Also searched as BB height.

Configuration	Size	Bottom bracket height	Source
V5Rs geometry	510	267 mm	RideDNA-derived
V5Rs geometry	530	267 mm	RideDNA-derived
V5Rs geometry	420	265 mm	RideDNA-derived
V5Rs geometry	485	267 mm	RideDNA-derived
V5Rs geometry	550	267 mm	RideDNA-derived
V5Rs geometry	455	265 mm	RideDNA-derived
V5Rs geometry	570	267 mm	RideDNA-derived

What is the front center of the Colnago V5Rs 2026?

Front center is the distance from the bottom bracket to the front wheel axle. Also searched as front centre.

Configuration	Size	Front center	Source
V5Rs geometry	510	596.1 mm	RideDNA-derived
V5Rs geometry	530	600 mm	Manufacturer-published
V5Rs geometry	420	579.2 mm	RideDNA-derived
V5Rs geometry	485	586.3 mm	RideDNA-derived
V5Rs geometry	550	610.9 mm	RideDNA-derived
V5Rs geometry	455	581.3 mm	RideDNA-derived
V5Rs geometry	570	620.4 mm	RideDNA-derived

What is the fork offset of the Colnago V5Rs 2026?

Fork offset is the perpendicular distance between the steering axis and the front axle. Also searched as fork rake, rake.

Configuration	Size	Fork offset	Source
V5Rs geometry	510	47 mm	Manufacturer-published
V5Rs geometry	530	43 mm	Manufacturer-published
V5Rs geometry	420	47 mm	Manufacturer-published
V5Rs geometry	485	47 mm	Manufacturer-published
V5Rs geometry	550	43 mm	Manufacturer-published
V5Rs geometry	455	47 mm	Manufacturer-published
V5Rs geometry	570	43 mm	Manufacturer-published

What is the head tube length of the Colnago V5Rs 2026?

Head tube length is the measured length of the frame's head tube. Also searched as Head tube, head tube.

Configuration	Size	Head tube length	Source
V5Rs geometry	510	146 mm	Recorded geometry
V5Rs geometry	530	162 mm	Recorded geometry
V5Rs geometry	420	101 mm	Recorded geometry
V5Rs geometry	485	127 mm	Recorded geometry
V5Rs geometry	550	181 mm	Recorded geometry
V5Rs geometry	455	112 mm	Recorded geometry
V5Rs geometry	570	199 mm	Recorded geometry

What is the seat tube length of the Colnago V5Rs 2026?

Seat tube length is the recorded length of the frame's seat tube; measurement conventions can differ by manufacturer. Also searched as Seat tube, seat tube, frame size.

Configuration	Size	Seat tube length	Source
V5Rs geometry	510	510 mm	Recorded geometry
V5Rs geometry	530	530 mm	Recorded geometry
V5Rs geometry	420	420 mm	Recorded geometry
V5Rs geometry	485	485 mm	Recorded geometry
V5Rs geometry	550	550 mm	Recorded geometry
V5Rs geometry	455	455 mm	Recorded geometry
V5Rs geometry	570	570 mm	Recorded geometry

What is the standover height of the Colnago V5Rs 2026?

Standover height is the ground-to-top-tube height at the manufacturer's stated measurement point. Also searched as Standover, stand over height, standover clearance.

Configuration	Size	Standover height	Source
V5Rs geometry	510	764.6 mm	RideDNA-derived
V5Rs geometry	530	782.5 mm	RideDNA-derived
V5Rs geometry	420	696.3 mm	RideDNA-derived
V5Rs geometry	485	743.4 mm	RideDNA-derived
V5Rs geometry	550	800.8 mm	RideDNA-derived
V5Rs geometry	455	719.9 mm	RideDNA-derived
V5Rs geometry	570	819.7 mm	RideDNA-derived

What is the fork length of the Colnago V5Rs 2026?

Fork length is the axle-to-crown distance recorded for the fork. Also searched as axle to crown, A2C.

Configuration	Size	Fork length	Source
V5Rs geometry	510	377 mm	Manufacturer-published
V5Rs geometry	530	377 mm	Manufacturer-published
V5Rs geometry	420	377 mm	Manufacturer-published
V5Rs geometry	485	377 mm	Manufacturer-published
V5Rs geometry	550	377 mm	Manufacturer-published
V5Rs geometry	455	377 mm	Manufacturer-published
V5Rs geometry	570	377 mm	Manufacturer-published

What is the wheel flop of the Colnago V5Rs 2026?

Wheel flop is a calculated steering-geometry value based on trail and head tube angle. Also searched as flop.

Configuration	Size	Wheel flop	Source
V5Rs geometry	510	16.5 mm	RideDNA-derived
V5Rs geometry	530	16.4 mm	RideDNA-derived
V5Rs geometry	420	21.8 mm	RideDNA-derived
V5Rs geometry	485	17 mm	RideDNA-derived
V5Rs geometry	550	16.4 mm	RideDNA-derived
V5Rs geometry	455	19.2 mm	RideDNA-derived
V5Rs geometry	570	15.1 mm	RideDNA-derived

Geometry

Available sizes: 510, 530, 420, 485, 550, 455, 570.

V5Rs geometry

Jump to size: 420 · 455 · 485 · 510 · 530 · 550 · 570

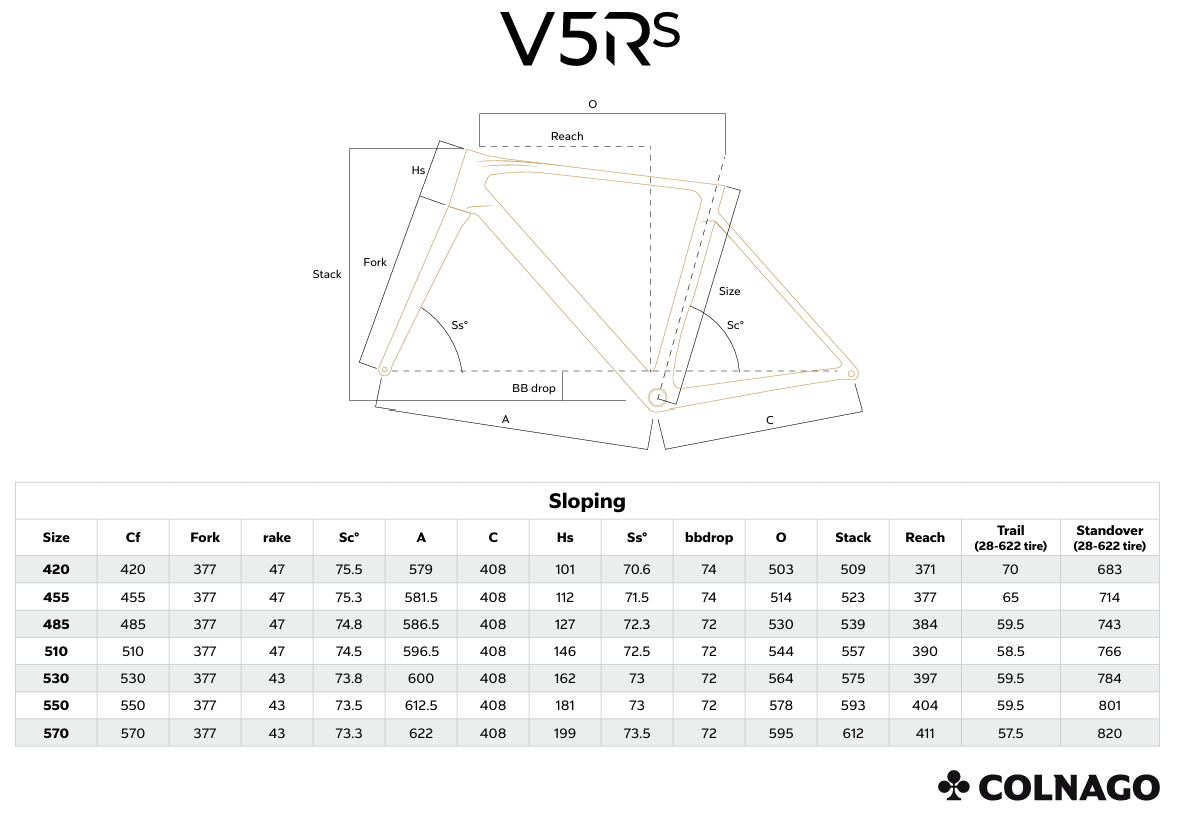

V5Rs geometry geometry by size
Size	Reach	Stack	ETT	HTA	STA	Trail	Wheelbase	Chainstay	BB drop	BB height	Front center	Fork offset	Head tube	Seat tube	Standover	Fork length	Wheel flop	Max tire
420	371.3 mm^*	509.2 mm^*	503 mm^‡	70.6 °^‡	75.5 °^‡	69.6 mm^*	975.6 mm^*†	408 mm^‡	74 mm^‡†	265 mm^*†	579.2 mm^*	47 mm	101 mm^‡	420 mm^‡	696.3 mm^*	377 mm	21.8 mm^*†	†
455	376.8 mm^*	522.8 mm^*	514 mm^‡	71.5 °^‡	75.3 °^‡	63.9 mm^*	977.8 mm^*†	408 mm^‡	74 mm^‡†	265 mm^*†	581.3 mm^*	47 mm	112 mm^‡	455 mm^‡	719.9 mm^*	377 mm	19.2 mm^*†	†
485	383.9 mm^*	537.9 mm^*	530 mm^‡	72.3 °^‡	74.8 °^‡	58.9 mm^*	983.5 mm^*†	408 mm^‡	72 mm^‡†	267 mm^*†	586.3 mm^*	47 mm	127 mm^‡	485 mm^‡	743.4 mm^*	377 mm	17 mm^*†	†
510	389.6 mm^*	556.7 mm^*	544 mm^‡	72.5 °^‡	74.5 °^‡	57.6 mm^*	993.3 mm^*†	408 mm^‡	72 mm^‡†	267 mm^*†	596.1 mm^*	47 mm	146 mm^‡	510 mm^‡	764.6 mm^*	377 mm	16.5 mm^*†	†
530	397 mm	574.9 mm^*	564 mm^‡	73 °^‡	73.8 °^‡	58.7 mm^*	997.3 mm^*†	408 mm^‡	72 mm^‡†	267 mm^*†	600 mm	43 mm	162 mm^‡	530 mm^‡	782.5 mm^*	377 mm	16.4 mm^*†	†
550	402.3 mm^*	593 mm	578 mm^‡	73 °^‡	73.5 °^‡	58.7 mm^*	1008.2 mm^*†	408 mm^‡	72 mm^‡†	267 mm^*†	610.9 mm^*	43 mm	181 mm^‡	550 mm^‡	800.8 mm^*	377 mm	16.4 mm^*†	†
570	411.4 mm^*	612.1 mm^*	595 mm^‡	73.5 °^‡	73.3 °^‡	55.6 mm^*	1017.8 mm^*†	408 mm^‡	72 mm^‡†	267 mm^*†	620.4 mm^*	43 mm	199 mm^‡	570 mm^‡	819.7 mm^*	377 mm	15.1 mm^*†	†

Length measurements are in millimeters; HTA and STA are in degrees. ETT means effective top tube. Values prioritize RideDNA calculations. * RideDNA calculated (including corrections where published values differ). Unmarked values are manufacturer-published; matching independently calculated values are identified in their source notes. † Manufacturer did not publish this dimension; † alone means no reliable value is available. ‡ Staff reference or source not confirmed; see the source note. Open Geometry Audit for the original published values, calculated geometry, and deltas.

Size-to-size changes

Differences are calculated from the recorded values; they are not fit recommendations.

V5Rs geometry: 420 → 455 — Reach +5.5 mm, Stack +13.6 mm, ETT +11 mm, HTA +0.9 °, STA -0.2 °, Trail -5.7 mm, Wheelbase +2.2 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +2.1 mm, Fork offset +0 mm, Head tube +11 mm, Seat tube +35 mm, Standover +23.6 mm, Fork length +0 mm, Wheel flop -2.6 mm
V5Rs geometry: 455 → 485 — Reach +7.1 mm, Stack +15.1 mm, ETT +16 mm, HTA +0.8 °, STA -0.5 °, Trail -5 mm, Wheelbase +5.7 mm, Chainstay +0 mm, BB drop -2 mm, BB height +2 mm, Front center +5 mm, Fork offset +0 mm, Head tube +15 mm, Seat tube +30 mm, Standover +23.5 mm, Fork length +0 mm, Wheel flop -2.2 mm
V5Rs geometry: 485 → 510 — Reach +5.7 mm, Stack +18.8 mm, ETT +14 mm, HTA +0.2 °, STA -0.3 °, Trail -1.3 mm, Wheelbase +9.8 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +9.8 mm, Fork offset +0 mm, Head tube +19 mm, Seat tube +25 mm, Standover +21.2 mm, Fork length +0 mm, Wheel flop -0.5 mm
V5Rs geometry: 510 → 530 — Reach +7.4 mm, Stack +18.2 mm, ETT +20 mm, HTA +0.5 °, STA -0.7 °, Trail +1.1 mm, Wheelbase +4 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +3.9 mm, Fork offset -4 mm, Head tube +16 mm, Seat tube +20 mm, Standover +17.9 mm, Fork length +0 mm, Wheel flop -0.1 mm
V5Rs geometry: 530 → 550 — Reach +5.3 mm, Stack +18.1 mm, ETT +14 mm, HTA +0 °, STA -0.3 °, Trail +0 mm, Wheelbase +10.9 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +10.9 mm, Fork offset +0 mm, Head tube +19 mm, Seat tube +20 mm, Standover +18.3 mm, Fork length +0 mm, Wheel flop +0 mm
V5Rs geometry: 550 → 570 — Reach +9.1 mm, Stack +19.1 mm, ETT +17 mm, HTA +0.5 °, STA -0.2 °, Trail -3.1 mm, Wheelbase +9.6 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +9.5 mm, Fork offset +0 mm, Head tube +18 mm, Seat tube +20 mm, Standover +18.9 mm, Fork length +0 mm, Wheel flop -1.3 mm

RideDNA-derived values

These deterministic calculations use the recorded inputs above. They are separate from recorded facts and are not fit recommendations.

V5Rs geometry size 510 stack Reach Ratio: 1.43
V5Rs geometry size 530 stack Reach Ratio: 1.45
V5Rs geometry size 420 stack Reach Ratio: 1.37
V5Rs geometry size 485 stack Reach Ratio: 1.4
V5Rs geometry size 550 stack Reach Ratio: 1.47
V5Rs geometry size 455 stack Reach Ratio: 1.39
V5Rs geometry size 570 stack Reach Ratio: 1.49
