Colnago Y1RS 2026

Compare size-specific bike geometry, including reach, stack, angles, wheelbase and the measurements that influence fit and handling.

Colnago › Y1RS › Standard › Y1RS

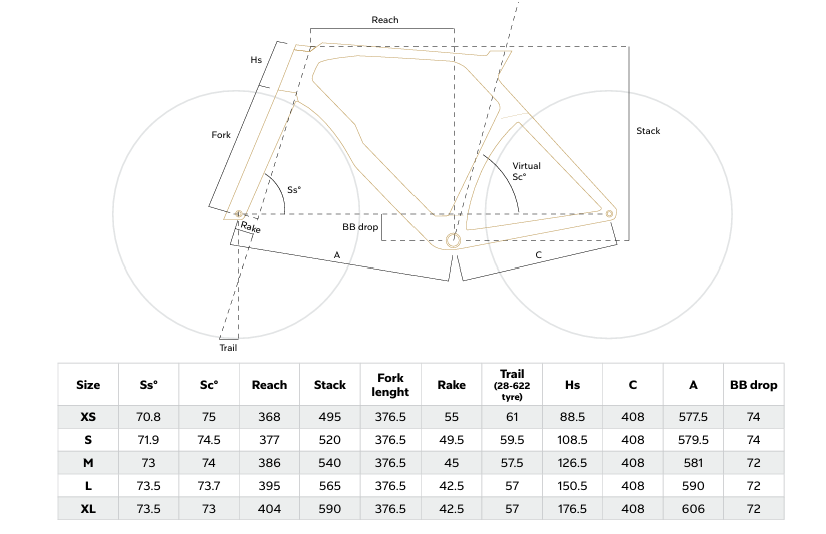

Y1RS geometry measurements

Choose the recorded size and configuration. Geometry figures can change by size; RideDNA does not collapse those values into one misleading answer.

What is the reach of the Colnago Y1RS 2026?

Reach is the horizontal distance from the bottom bracket to the top of the head tube. Also searched as frame reach.

Configuration	Size	Reach	Source
Y1RS geometry	XS	368 mm	Manufacturer-published
Y1RS geometry	M	386 mm	Manufacturer-published
Y1RS geometry	XL	404 mm	Manufacturer-published
Y1RS geometry	S	377.1 mm	RideDNA-derived
Y1RS geometry	L	394.9 mm	RideDNA-derived

What is the stack of the Colnago Y1RS 2026?

Stack is the vertical distance from the bottom bracket to the top of the head tube. Also searched as frame stack.

Configuration	Size	Stack	Source
Y1RS geometry	XS	495 mm	Manufacturer-published
Y1RS geometry	M	539.9 mm	RideDNA-derived
Y1RS geometry	XL	590.2 mm	RideDNA-derived
Y1RS geometry	S	519.6 mm	RideDNA-derived
Y1RS geometry	L	565.2 mm	RideDNA-derived

What is the effective top tube of the Colnago Y1RS 2026?

Effective top tube is the horizontal distance between the head-tube and seat-tube centerlines. Also searched as ETT, virtual top tube, horizontal top tube.

Configuration	Size	Effective top tube	Source
Y1RS geometry	XS	500.6 mm	RideDNA-derived
Y1RS geometry	M	540.8 mm	RideDNA-derived
Y1RS geometry	XL	584.4 mm	RideDNA-derived
Y1RS geometry	S	521.2 mm	RideDNA-derived
Y1RS geometry	L	560.2 mm	RideDNA-derived

What is the head tube angle of the Colnago Y1RS 2026?

Head tube angle describes the steering-axis angle relative to the ground. Also searched as HTA, head angle, steering angle.

Configuration	Size	Head tube angle	Source
Y1RS geometry	XS	70.8 °	Recorded geometry
Y1RS geometry	M	73 °	Recorded geometry
Y1RS geometry	XL	73.5 °	Recorded geometry
Y1RS geometry	S	71.9 °	Recorded geometry
Y1RS geometry	L	73.5 °	Recorded geometry

What is the seat tube angle of the Colnago Y1RS 2026?

Seat tube angle describes the seat-tube angle relative to the ground. Also searched as STA, seat angle, effective seat angle.

Configuration	Size	Seat tube angle	Source
Y1RS geometry	XS	75 °	Recorded geometry
Y1RS geometry	M	74 °	Recorded geometry
Y1RS geometry	XL	73 °	Recorded geometry
Y1RS geometry	S	74.5 °	Recorded geometry
Y1RS geometry	L	73.7 °	Recorded geometry

What is the trail of the Colnago Y1RS 2026?

Trail is the ground distance between the steering-axis intercept and the front tire contact point. Also searched as fork trail, mechanical trail.

Configuration	Size	Trail	Source
Y1RS geometry	XS	59.8 mm	RideDNA-derived
Y1RS geometry	M	56.6 mm	RideDNA-derived
Y1RS geometry	XL	56.1 mm	RideDNA-derived
Y1RS geometry	S	58.7 mm	RideDNA-derived
Y1RS geometry	L	56.1 mm	RideDNA-derived

What is the wheelbase of the Colnago Y1RS 2026?

Wheelbase is the distance between the front and rear wheel axles. Also searched as axle-to-axle length.

Configuration	Size	Wheelbase	Source
Y1RS geometry	XS	974 mm	RideDNA-derived
Y1RS geometry	M	977.7 mm	RideDNA-derived
Y1RS geometry	XL	1003.4 mm	RideDNA-derived
Y1RS geometry	S	976.1 mm	RideDNA-derived
Y1RS geometry	L	986.9 mm	RideDNA-derived

What is the chainstay length of the Colnago Y1RS 2026?

Chainstay length, also called rear center, is the distance from the bottom bracket to the rear axle. Also searched as Chainstay, rear center, rear centre.

Configuration	Size	Chainstay length	Source
Y1RS geometry	XS	408 mm	Recorded geometry
Y1RS geometry	M	408 mm	Recorded geometry
Y1RS geometry	XL	408 mm	Recorded geometry
Y1RS geometry	S	408 mm	Recorded geometry
Y1RS geometry	L	408 mm	Recorded geometry

What is the bottom bracket drop of the Colnago Y1RS 2026?

Bottom bracket drop is the vertical distance from the wheel-axle line down to the bottom bracket. Also searched as BB drop.

Configuration	Size	Bottom bracket drop	Source
Y1RS geometry	XS	74 mm	Recorded geometry
Y1RS geometry	M	72 mm	Recorded geometry
Y1RS geometry	XL	72 mm	Recorded geometry
Y1RS geometry	S	74 mm	Recorded geometry
Y1RS geometry	L	72 mm	Recorded geometry

What is the bottom bracket height of the Colnago Y1RS 2026?

Bottom bracket height is the vertical distance from the ground to the bottom bracket. Also searched as BB height.

Configuration	Size	Bottom bracket height	Source
Y1RS geometry	XS	265 mm	RideDNA-derived
Y1RS geometry	M	267 mm	RideDNA-derived
Y1RS geometry	XL	267 mm	RideDNA-derived
Y1RS geometry	S	265 mm	RideDNA-derived
Y1RS geometry	L	267 mm	RideDNA-derived

What is the front center of the Colnago Y1RS 2026?

Front center is the distance from the bottom bracket to the front wheel axle. Also searched as front centre.

Configuration	Size	Front center	Source
Y1RS geometry	XS	577.6 mm	RideDNA-derived
Y1RS geometry	M	580.6 mm	RideDNA-derived
Y1RS geometry	XL	606.1 mm	RideDNA-derived
Y1RS geometry	S	579.6 mm	RideDNA-derived
Y1RS geometry	L	589.8 mm	RideDNA-derived

What is the fork offset of the Colnago Y1RS 2026?

Fork offset is the perpendicular distance between the steering axis and the front axle. Also searched as fork rake, rake.

Configuration	Size	Fork offset	Source
Y1RS geometry	XS	55 mm	Manufacturer-published
Y1RS geometry	M	45 mm	Manufacturer-published
Y1RS geometry	XL	42.5 mm	Manufacturer-published
Y1RS geometry	S	49.5 mm	Manufacturer-published
Y1RS geometry	L	42.5 mm	Manufacturer-published

What is the head tube length of the Colnago Y1RS 2026?

Head tube length is the measured length of the frame's head tube. Also searched as Head tube, head tube.

Configuration	Size	Head tube length	Source
Y1RS geometry	XS	88.5 mm	Recorded geometry
Y1RS geometry	M	126.5 mm	Recorded geometry
Y1RS geometry	XL	176.5 mm	Recorded geometry
Y1RS geometry	S	108.5 mm	Recorded geometry
Y1RS geometry	L	150.5 mm	Recorded geometry

What is the seat tube length of the Colnago Y1RS 2026?

Seat tube length is the recorded length of the frame's seat tube; measurement conventions can differ by manufacturer. Also searched as Seat tube, seat tube, frame size.

Configuration	Size	Seat tube length	Source
Y1RS geometry	XS	577.5 mm	Recorded geometry
Y1RS geometry	M	581 mm	Recorded geometry
Y1RS geometry	XL	606 mm	Recorded geometry
Y1RS geometry	S	579.5 mm	Recorded geometry
Y1RS geometry	L	590 mm	Recorded geometry

What is the standover height of the Colnago Y1RS 2026?

Standover height is the ground-to-top-tube height at the manufacturer's stated measurement point. Also searched as Standover, stand over height, standover clearance.

Configuration	Size	Standover height	Source
Y1RS geometry	XS	779.4 mm	RideDNA-derived
Y1RS geometry	M	804.2 mm	RideDNA-derived
Y1RS geometry	XL	834.8 mm	RideDNA-derived
Y1RS geometry	S	792 mm	RideDNA-derived
Y1RS geometry	L	820.8 mm	RideDNA-derived

What is the fork length of the Colnago Y1RS 2026?

Fork length is the axle-to-crown distance recorded for the fork. Also searched as axle to crown, A2C.

Configuration	Size	Fork length	Source
Y1RS geometry	XS	376.5 mm	Manufacturer-published
Y1RS geometry	M	376.5 mm	Manufacturer-published
Y1RS geometry	XL	376.5 mm	Manufacturer-published
Y1RS geometry	S	376.5 mm	Manufacturer-published
Y1RS geometry	L	376.5 mm	Manufacturer-published

What is the wheel flop of the Colnago Y1RS 2026?

Wheel flop is a calculated steering-geometry value based on trail and head tube angle. Also searched as flop.

Configuration	Size	Wheel flop	Source
Y1RS geometry	XS	18.6 mm	RideDNA-derived
Y1RS geometry	M	15.8 mm	RideDNA-derived
Y1RS geometry	XL	15.3 mm	RideDNA-derived
Y1RS geometry	S	17.3 mm	RideDNA-derived
Y1RS geometry	L	15.3 mm	RideDNA-derived

Geometry

Available sizes: XS, M, XL, S, L.

Y1RS geometry

Jump to size: XS · S · M · L · XL

Y1RS geometry geometry by size
Size	Reach	Stack	ETT	HTA	STA	Trail	Wheelbase	Chainstay	BB drop	BB height	Front center	Fork offset	Head tube	Seat tube	Standover	Fork length	Wheel flop	Max tire
XS	368 mm	495 mm	500.6 mm^*†	70.8 °^‡	75 °^‡	59.8 mm^*	974 mm^*†	408 mm^‡	74 mm^‡†	265 mm^*†	577.6 mm^*	55 mm	88.5 mm^‡	577.5 mm^‡	779.4 mm^*†	376.5 mm	18.6 mm^*†	†
S	377.1 mm^*	519.6 mm^*	521.2 mm^*†	71.9 °^‡	74.5 °^‡	58.7 mm^*	976.1 mm^*†	408 mm^‡	74 mm^‡†	265 mm^*†	579.6 mm^*	49.5 mm	108.5 mm^‡	579.5 mm^‡	792 mm^*†	376.5 mm	17.3 mm^*†	†
M	386 mm	539.9 mm^*	540.8 mm^*†	73 °^‡	74 °^‡	56.6 mm^*	977.7 mm^*†	408 mm^‡	72 mm^‡†	267 mm^*†	580.6 mm^*	45 mm	126.5 mm^‡	581 mm^‡	804.2 mm^*†	376.5 mm	15.8 mm^*†	†
L	394.9 mm^*	565.2 mm^*	560.2 mm^*†	73.5 °^‡	73.7 °^‡	56.1 mm^*	986.9 mm^*†	408 mm^‡	72 mm^‡†	267 mm^*†	589.8 mm^*	42.5 mm	150.5 mm^‡	590 mm^‡	820.8 mm^*†	376.5 mm	15.3 mm^*†	†
XL	404 mm	590.2 mm^*	584.4 mm^*†	73.5 °^‡	73 °^‡	56.1 mm^*	1003.4 mm^*†	408 mm^‡	72 mm^‡†	267 mm^*†	606.1 mm^*	42.5 mm	176.5 mm^‡	606 mm^‡	834.8 mm^*†	376.5 mm	15.3 mm^*†	†

Length measurements are in millimeters; HTA and STA are in degrees. ETT means effective top tube. Values prioritize RideDNA calculations. * RideDNA calculated (including corrections where published values differ). Unmarked values are manufacturer-published; matching independently calculated values are identified in their source notes. † Manufacturer did not publish this dimension; † alone means no reliable value is available. ‡ Staff reference or source not confirmed; see the source note. Open Geometry Audit for the original published values, calculated geometry, and deltas.

Size-to-size changes

Differences are calculated from the recorded values; they are not fit recommendations.

Y1RS geometry: XS → S — Reach +9.1 mm, Stack +24.6 mm, ETT +20.6 mm, HTA +1.1 °, STA -0.5 °, Trail -1.1 mm, Wheelbase +2.1 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +2 mm, Fork offset -5.5 mm, Head tube +20 mm, Seat tube +2 mm, Standover +12.6 mm, Fork length +0 mm, Wheel flop -1.3 mm
Y1RS geometry: S → M — Reach +8.9 mm, Stack +20.3 mm, ETT +19.6 mm, HTA +1.1 °, STA -0.5 °, Trail -2.1 mm, Wheelbase +1.6 mm, Chainstay +0 mm, BB drop -2 mm, BB height +2 mm, Front center +1 mm, Fork offset -4.5 mm, Head tube +18 mm, Seat tube +1.5 mm, Standover +12.2 mm, Fork length +0 mm, Wheel flop -1.5 mm
Y1RS geometry: M → L — Reach +8.9 mm, Stack +25.3 mm, ETT +19.4 mm, HTA +0.5 °, STA -0.3 °, Trail -0.5 mm, Wheelbase +9.2 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +9.2 mm, Fork offset -2.5 mm, Head tube +24 mm, Seat tube +9 mm, Standover +16.6 mm, Fork length +0 mm, Wheel flop -0.5 mm
Y1RS geometry: L → XL — Reach +9.1 mm, Stack +25 mm, ETT +24.2 mm, HTA +0 °, STA -0.7 °, Trail +0 mm, Wheelbase +16.5 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +16.3 mm, Fork offset +0 mm, Head tube +26 mm, Seat tube +16 mm, Standover +14 mm, Fork length +0 mm, Wheel flop +0 mm

RideDNA-derived values

These deterministic calculations use the recorded inputs above. They are separate from recorded facts and are not fit recommendations.

Y1RS geometry size XS stack Reach Ratio: 1.35
Y1RS geometry size M stack Reach Ratio: 1.4
Y1RS geometry size XL stack Reach Ratio: 1.46
Y1RS geometry size S stack Reach Ratio: 1.38
Y1RS geometry size L stack Reach Ratio: 1.43
