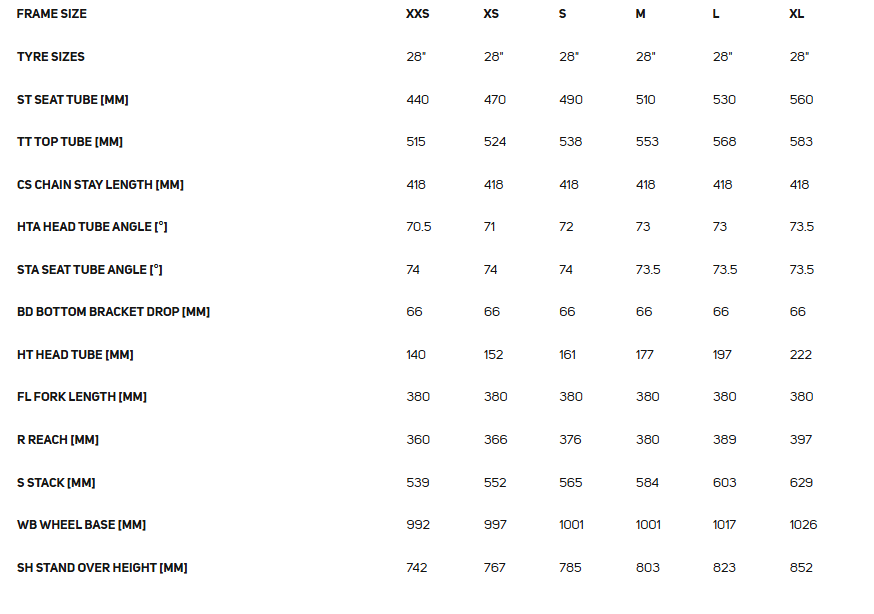

Scultura Endurance geometry measurements

Choose the recorded size and configuration. Geometry figures can change by size; RideDNA does not collapse those values into one misleading answer.

What is the reach of the Merida Scultura Endurance 2026?

Reach is the horizontal distance from the bottom bracket to the top of the head tube. Also searched as frame reach.

Configuration	Size	Reach	Source
Scultura Endurance geometry	XL	396.7 mm	RideDNA-derived
Scultura Endurance geometry	XXS	360.3 mm	RideDNA-derived
Scultura Endurance geometry	XS	365.5 mm	RideDNA-derived
Scultura Endurance geometry	S	376 mm	Manufacturer-published
Scultura Endurance geometry	M	380 mm	Manufacturer-published
Scultura Endurance geometry	L	389.4 mm	RideDNA-derived

What is the stack of the Merida Scultura Endurance 2026?

Stack is the vertical distance from the bottom bracket to the top of the head tube. Also searched as frame stack.

Configuration	Size	Stack	Source
Scultura Endurance geometry	XL	628.9 mm	RideDNA-derived
Scultura Endurance geometry	XXS	539.3 mm	RideDNA-derived
Scultura Endurance geometry	XS	552.6 mm	RideDNA-derived
Scultura Endurance geometry	S	564.9 mm	RideDNA-derived
Scultura Endurance geometry	M	583.9 mm	RideDNA-derived
Scultura Endurance geometry	L	603.1 mm	RideDNA-derived

What is the effective top tube of the Merida Scultura Endurance 2026?

Effective top tube is the horizontal distance between the head-tube and seat-tube centerlines. Also searched as ETT, virtual top tube, horizontal top tube.

Configuration	Size	Effective top tube	Source
Scultura Endurance geometry	XL	583 mm	Recorded geometry
Scultura Endurance geometry	XXS	515 mm	Recorded geometry
Scultura Endurance geometry	XS	524 mm	Recorded geometry
Scultura Endurance geometry	S	538 mm	Recorded geometry
Scultura Endurance geometry	M	553 mm	Recorded geometry
Scultura Endurance geometry	L	568 mm	Recorded geometry

What is the head tube angle of the Merida Scultura Endurance 2026?

Head tube angle describes the steering-axis angle relative to the ground. Also searched as HTA, head angle, steering angle.

Configuration	Size	Head tube angle	Source
Scultura Endurance geometry	XL	73.5 °	Recorded geometry
Scultura Endurance geometry	XXS	70.5 °	Recorded geometry
Scultura Endurance geometry	XS	71 °	Recorded geometry
Scultura Endurance geometry	S	72 °	Recorded geometry
Scultura Endurance geometry	M	73 °	Recorded geometry
Scultura Endurance geometry	L	73 °	Recorded geometry

What is the seat tube angle of the Merida Scultura Endurance 2026?

Seat tube angle describes the seat-tube angle relative to the ground. Also searched as STA, seat angle, effective seat angle.

Configuration	Size	Seat tube angle	Source
Scultura Endurance geometry	XL	73.5 °	Recorded geometry
Scultura Endurance geometry	XXS	74 °	Recorded geometry
Scultura Endurance geometry	XS	74 °	Recorded geometry
Scultura Endurance geometry	S	74 °	Recorded geometry
Scultura Endurance geometry	M	73.5 °	Recorded geometry
Scultura Endurance geometry	L	73.5 °	Recorded geometry

What is the trail of the Merida Scultura Endurance 2026?

Trail is the ground distance between the steering-axis intercept and the front tire contact point. Also searched as fork trail, mechanical trail.

Configuration	Size	Trail	Source
Scultura Endurance geometry	XL	49 mm	RideDNA-derived
Scultura Endurance geometry	XXS	68 mm	RideDNA-derived
Scultura Endurance geometry	XS	64.8 mm	RideDNA-derived
Scultura Endurance geometry	S	58.5 mm	RideDNA-derived
Scultura Endurance geometry	M	52.2 mm	RideDNA-derived
Scultura Endurance geometry	L	52.2 mm	RideDNA-derived

What is the wheelbase of the Merida Scultura Endurance 2026?

Wheelbase is the distance between the front and rear wheel axles. Also searched as axle-to-axle length.

Configuration	Size	Wheelbase	Source
Scultura Endurance geometry	XL	1028.8 mm	RideDNA-derived
Scultura Endurance geometry	XXS	994.2 mm	RideDNA-derived
Scultura Endurance geometry	XS	999.2 mm	RideDNA-derived
Scultura Endurance geometry	S	1003.9 mm	RideDNA-derived
Scultura Endurance geometry	M	1003.8 mm	RideDNA-derived
Scultura Endurance geometry	L	1019 mm	RideDNA-derived

What is the chainstay length of the Merida Scultura Endurance 2026?

Chainstay length, also called rear center, is the distance from the bottom bracket to the rear axle. Also searched as Chainstay, rear center, rear centre.

Configuration	Size	Chainstay length	Source
Scultura Endurance geometry	XL	418 mm	Recorded geometry
Scultura Endurance geometry	XXS	418 mm	Recorded geometry
Scultura Endurance geometry	XS	418 mm	Recorded geometry
Scultura Endurance geometry	S	418 mm	Recorded geometry
Scultura Endurance geometry	M	418 mm	Recorded geometry
Scultura Endurance geometry	L	418 mm	Recorded geometry

What is the bottom bracket drop of the Merida Scultura Endurance 2026?

Bottom bracket drop is the vertical distance from the wheel-axle line down to the bottom bracket. Also searched as BB drop.

Configuration	Size	Bottom bracket drop	Source
Scultura Endurance geometry	XL	66 mm	RideDNA-derived
Scultura Endurance geometry	XXS	66 mm	RideDNA-derived
Scultura Endurance geometry	XS	66 mm	RideDNA-derived
Scultura Endurance geometry	S	66 mm	RideDNA-derived
Scultura Endurance geometry	M	66 mm	RideDNA-derived
Scultura Endurance geometry	L	66 mm	RideDNA-derived

What is the bottom bracket height of the Merida Scultura Endurance 2026?

Bottom bracket height is the vertical distance from the ground to the bottom bracket. Also searched as BB height.

Configuration	Size	Bottom bracket height	Source
Scultura Endurance geometry	XL	277 mm	RideDNA-derived
Scultura Endurance geometry	XXS	277 mm	RideDNA-derived
Scultura Endurance geometry	XS	277 mm	RideDNA-derived
Scultura Endurance geometry	S	277 mm	RideDNA-derived
Scultura Endurance geometry	M	277 mm	RideDNA-derived
Scultura Endurance geometry	L	277 mm	RideDNA-derived

What is the front center of the Merida Scultura Endurance 2026?

Front center is the distance from the bottom bracket to the front wheel axle. Also searched as front centre.

Configuration	Size	Front center	Source
Scultura Endurance geometry	XL	619.5 mm	RideDNA-derived
Scultura Endurance geometry	XXS	585.2 mm	RideDNA-derived
Scultura Endurance geometry	XS	590.1 mm	RideDNA-derived
Scultura Endurance geometry	S	594.8 mm	RideDNA-derived
Scultura Endurance geometry	M	594.8 mm	RideDNA-derived
Scultura Endurance geometry	L	609.8 mm	RideDNA-derived

What is the fork offset of the Merida Scultura Endurance 2026?

Fork offset is the perpendicular distance between the steering axis and the front axle. Also searched as fork rake, rake.

Configuration	Size	Fork offset	Source
Scultura Endurance geometry	XL	50.4 mm	RideDNA-derived
Scultura Endurance geometry	XXS	50.4 mm	RideDNA-derived
Scultura Endurance geometry	XS	50.4 mm	RideDNA-derived
Scultura Endurance geometry	S	50.4 mm	RideDNA-derived
Scultura Endurance geometry	M	50.4 mm	RideDNA-derived
Scultura Endurance geometry	L	50.4 mm	RideDNA-derived

What is the head tube length of the Merida Scultura Endurance 2026?

Head tube length is the measured length of the frame's head tube. Also searched as Head tube, head tube.

Configuration	Size	Head tube length	Source
Scultura Endurance geometry	XL	222 mm	Recorded geometry
Scultura Endurance geometry	XXS	140 mm	Recorded geometry
Scultura Endurance geometry	XS	152 mm	Recorded geometry
Scultura Endurance geometry	S	161 mm	Recorded geometry
Scultura Endurance geometry	M	177 mm	Recorded geometry
Scultura Endurance geometry	L	197 mm	Recorded geometry

What is the seat tube length of the Merida Scultura Endurance 2026?

Seat tube length is the recorded length of the frame's seat tube; measurement conventions can differ by manufacturer. Also searched as Seat tube, seat tube, frame size.

Configuration	Size	Seat tube length	Source
Scultura Endurance geometry	XL	560 mm	Recorded geometry
Scultura Endurance geometry	XXS	440 mm	Recorded geometry
Scultura Endurance geometry	XS	470 mm	Recorded geometry
Scultura Endurance geometry	S	490 mm	Recorded geometry
Scultura Endurance geometry	M	510 mm	Recorded geometry
Scultura Endurance geometry	L	530 mm	Recorded geometry

What is the standover height of the Merida Scultura Endurance 2026?

Standover height is the ground-to-top-tube height at the manufacturer's stated measurement point. Also searched as Standover, stand over height, standover clearance.

Configuration	Size	Standover height	Source
Scultura Endurance geometry	XL	833.5 mm	RideDNA-derived
Scultura Endurance geometry	XXS	731.7 mm	RideDNA-derived
Scultura Endurance geometry	XS	752.8 mm	RideDNA-derived
Scultura Endurance geometry	S	768.5 mm	RideDNA-derived
Scultura Endurance geometry	M	787.1 mm	RideDNA-derived
Scultura Endurance geometry	L	806.2 mm	RideDNA-derived

What is the fork length of the Merida Scultura Endurance 2026?

Fork length is the axle-to-crown distance recorded for the fork. Also searched as axle to crown, A2C.

Configuration	Size	Fork length	Source
Scultura Endurance geometry	XL	380 mm	Manufacturer-published
Scultura Endurance geometry	XXS	380 mm	Manufacturer-published
Scultura Endurance geometry	XS	380 mm	Manufacturer-published
Scultura Endurance geometry	S	380 mm	Manufacturer-published
Scultura Endurance geometry	M	380 mm	Manufacturer-published
Scultura Endurance geometry	L	380 mm	Manufacturer-published

What is the wheel flop of the Merida Scultura Endurance 2026?

Wheel flop is a calculated steering-geometry value based on trail and head tube angle. Also searched as flop.

Configuration	Size	Wheel flop	Source
Scultura Endurance geometry	XL	13.4 mm	RideDNA-derived
Scultura Endurance geometry	XXS	21.4 mm	RideDNA-derived
Scultura Endurance geometry	XS	19.9 mm	RideDNA-derived
Scultura Endurance geometry	S	17.2 mm	RideDNA-derived
Scultura Endurance geometry	M	14.6 mm	RideDNA-derived
Scultura Endurance geometry	L	14.6 mm	RideDNA-derived

Geometry

Available sizes: XL, XXS, XS, S, M, L.

Scultura Endurance geometry

Jump to size: XS · S · M · L · XL · XXS

Scultura Endurance geometry geometry by size
Size	Reach	Stack	ETT	HTA	STA	Trail	Wheelbase	Chainstay	BB drop	BB height	Front center	Fork offset	Head tube	Seat tube	Standover	Fork length	Wheel flop	Max tire
XS	365.5 mm^*	552.6 mm^*	524 mm^‡	71 °^‡	74 °^‡	64.8 mm^*†	999.2 mm^*	418 mm^‡	66 mm^*†	277 mm^*†	590.1 mm^*†	50.4 mm^*†	152 mm^‡	470 mm^‡	752.8 mm^*	380 mm	19.9 mm^*†	†
S	376 mm	564.9 mm^*	538 mm^‡	72 °^‡	74 °^‡	58.5 mm^*†	1003.9 mm^*	418 mm^‡	66 mm^*†	277 mm^*†	594.8 mm^*†	50.4 mm^*†	161 mm^‡	490 mm^‡	768.5 mm^*	380 mm	17.2 mm^*†	†
M	380 mm	583.9 mm^*	553 mm^‡	73 °^‡	73.5 °^‡	52.2 mm^*†	1003.8 mm^*	418 mm^‡	66 mm^*†	277 mm^*†	594.8 mm^*†	50.4 mm^*†	177 mm^‡	510 mm^‡	787.1 mm^*	380 mm	14.6 mm^*†	†
L	389.4 mm^*	603.1 mm^*	568 mm^‡	73 °^‡	73.5 °^‡	52.2 mm^*†	1019 mm^*	418 mm^‡	66 mm^*†	277 mm^*†	609.8 mm^*†	50.4 mm^*†	197 mm^‡	530 mm^‡	806.2 mm^*	380 mm	14.6 mm^*†	†
XL	396.7 mm^*	628.9 mm^*	583 mm^‡	73.5 °^‡	73.5 °^‡	49 mm^*†	1028.8 mm^*	418 mm^‡	66 mm^*†	277 mm^*†	619.5 mm^*†	50.4 mm^*†	222 mm^‡	560 mm^‡	833.5 mm^*	380 mm	13.4 mm^*†	†
XXS	360.3 mm^*	539.3 mm^*	515 mm^‡	70.5 °^‡	74 °^‡	68 mm^*†	994.2 mm^*	418 mm^‡	66 mm^*†	277 mm^*†	585.2 mm^*†	50.4 mm^*†	140 mm^‡	440 mm^‡	731.7 mm^*	380 mm	21.4 mm^*†	†

Length measurements are in millimeters; HTA and STA are in degrees. ETT means effective top tube. Values prioritize RideDNA calculations. * RideDNA calculated (including corrections where published values differ). Unmarked values are manufacturer-published; matching independently calculated values are identified in their source notes. † Manufacturer did not publish this dimension; † alone means no reliable value is available. ‡ Staff reference or source not confirmed; see the source note. Open Geometry Audit for the original published values, calculated geometry, and deltas.

Size-to-size changes

Differences are calculated from the recorded values; they are not fit recommendations.

Scultura Endurance geometry: XS → S — Reach +10.5 mm, Stack +12.3 mm, ETT +14 mm, HTA +1 °, STA +0 °, Trail -6.3 mm, Wheelbase +4.7 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +4.7 mm, Fork offset +0 mm, Head tube +9 mm, Seat tube +20 mm, Standover +15.7 mm, Fork length +0 mm, Wheel flop -2.7 mm
Scultura Endurance geometry: S → M — Reach +4 mm, Stack +19 mm, ETT +15 mm, HTA +1 °, STA -0.5 °, Trail -6.3 mm, Wheelbase -0.1 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +0 mm, Fork offset +0 mm, Head tube +16 mm, Seat tube +20 mm, Standover +18.6 mm, Fork length +0 mm, Wheel flop -2.6 mm
Scultura Endurance geometry: M → L — Reach +9.4 mm, Stack +19.2 mm, ETT +15 mm, HTA +0 °, STA +0 °, Trail +0 mm, Wheelbase +15.2 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +15 mm, Fork offset +0 mm, Head tube +20 mm, Seat tube +20 mm, Standover +19.1 mm, Fork length +0 mm, Wheel flop +0 mm
Scultura Endurance geometry: L → XL — Reach +7.3 mm, Stack +25.8 mm, ETT +15 mm, HTA +0.5 °, STA +0 °, Trail -3.2 mm, Wheelbase +9.8 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +9.7 mm, Fork offset +0 mm, Head tube +25 mm, Seat tube +30 mm, Standover +27.3 mm, Fork length +0 mm, Wheel flop -1.2 mm
Scultura Endurance geometry: XL → XXS — Reach -36.4 mm, Stack -89.6 mm, ETT -68 mm, HTA -3 °, STA +0.5 °, Trail +19 mm, Wheelbase -34.6 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center -34.3 mm, Fork offset +0 mm, Head tube -82 mm, Seat tube -120 mm, Standover -101.8 mm, Fork length +0 mm, Wheel flop +8 mm

RideDNA-derived values

These deterministic calculations use the recorded inputs above. They are separate from recorded facts and are not fit recommendations.

Scultura Endurance geometry size XL stack Reach Ratio: 1.59
Scultura Endurance geometry size XXS stack Reach Ratio: 1.5
Scultura Endurance geometry size XS stack Reach Ratio: 1.51
Scultura Endurance geometry size S stack Reach Ratio: 1.5
Scultura Endurance geometry size M stack Reach Ratio: 1.54
Scultura Endurance geometry size L stack Reach Ratio: 1.55
