Parlee Ouray 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

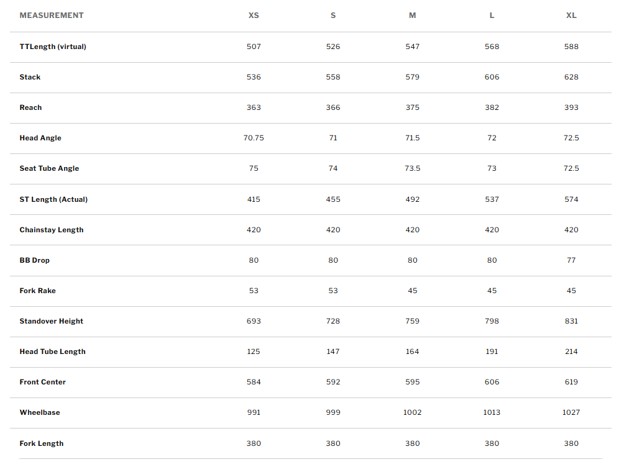

Parlee Ouray 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
L 606 mm published382 mm published72.0 ° derived73.0 ° derived568 mm derived420 mm derived1013 mm published606 mm published80 mm derived64.8 mm derived45 mm derived yellow
1 of 4 checks flagged — Stack Reconciliation shows 3.1mm discrepancy
M 579 mm published375 mm published71.5 ° derived73.5 ° derived547 mm derived420 mm derived1002 mm published595 mm published80 mm derived68.0 mm derived45 mm derived yellow
1 of 4 checks flagged — Stack Reconciliation shows 2.6mm discrepancy
S 558 mm published366 mm published71.0 ° derived74.0 ° derived526 mm derived420 mm derived999 mm published592 mm published80 mm derived62.7 mm derived53 mm derived yellow
1 of 4 checks flagged — Stack Reconciliation shows 3mm discrepancy
XL 628 mm published393 mm published72.5 ° derived72.5 ° derived588 mm derived420 mm derived1027 mm published619 mm published77 mm derived61.6 mm derived45 mm derived yellow
3 of 4 checks flagged — Reach Reconciliation shows 3.6mm discrepancy
XS 536 mm published363 mm published70.8 ° derived75.0 ° derived507 mm derived420 mm derived991 mm published584 mm published80 mm derived64.3 mm derived53 mm derived yellow
1 of 4 checks flagged — Stack Reconciliation shows 3.3mm discrepancy

Audit context

Overall consistency: yellow. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Parlee Ouray geometry shows systematic stack discrepancies across four sizes (S, M, XS, L) ranging from 2.6mm to 3.3mm, classified as data inaccuracies in the published stack values. Size XL shows a 3.6mm data inaccuracy in the published reach value, accompanied by corresponding 3.2–3.3mm discrepancies in wheelbase and front center. The RideDNA Geometry Engine reconciliation analysis reveals a consistent stack mispublishing pattern across all five sizes, with published stack values deflated by approximately 2.1–3.5mm relative to what the other published geometry parameters imply. The head tube angle progression shows an unusual step-down between sizes M and XS (71.5° → 70.75°), and the seat tube angle exhibits unusually large jumps between adjacent sizes — these angle anomalies warrant verification of the source data, though the root cause cannot be determined from the published geometry data alone.
