Pivot Les SL 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

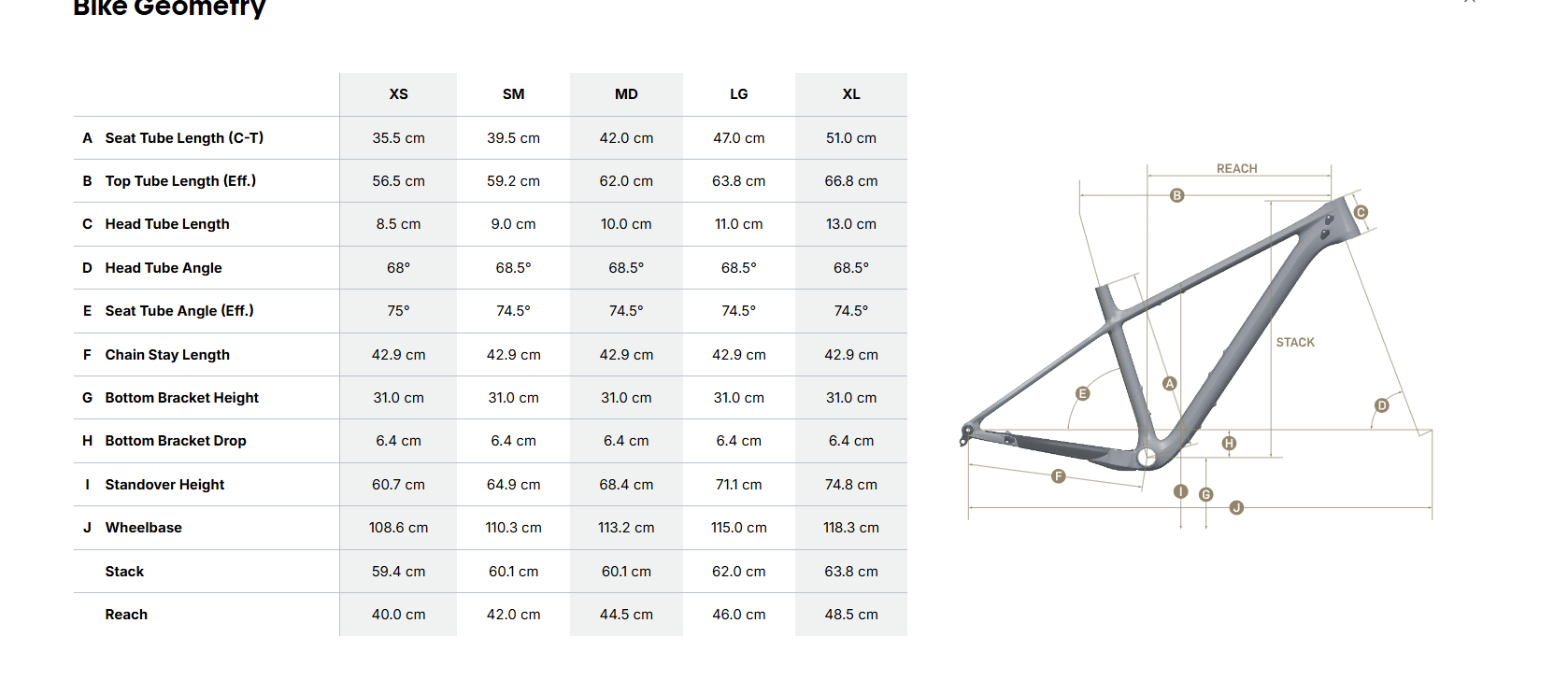

Pivot Les SL 2026 geometry chart

Source: Manufacturer geometry source

This profile is available for riders, but it is not currently indexed because its published geometry is not fully independently verified. Values marked derived are calculated by RideDNA; values marked published are transcribed from the manufacturer chart.

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
LG 620 mm published460 mm published68.5 ° derived74.5 ° derived638 mm derived429 mm derived1150 mm published735 mm derived64 mm derived97.0 mm derived44 mm derived red
2 of 3 checks flagged — Reach Reconciliation shows 6.2mm discrepancy
MD 601 mm published445 mm published68.5 ° derived74.5 ° derived620 mm derived429 mm derived1132 mm published716 mm derived64 mm derived97.0 mm derived44 mm derived red
2 of 3 checks flagged — Stack Reconciliation shows 9.3mm discrepancy
SM 601 mm published420 mm published68.5 ° derived74.5 ° derived592 mm derived429 mm derived1103 mm published687 mm derived64 mm derived97.0 mm derived44 mm derived red
1 of 3 checks flagged — Reach Reconciliation shows 5.3mm discrepancy
XL 638 mm published485 mm published68.5 ° derived74.5 ° derived668 mm derived429 mm derived1183 mm published767 mm derived64 mm derived97.0 mm derived44 mm derived red
2 of 3 checks flagged — Reach Reconciliation shows 6mm discrepancy
XS 594 mm published400 mm published68.0 ° derived75.0 ° derived565 mm derived429 mm derived1086 mm published671 mm derived64 mm derived100.6 mm derived44 mm derived red
1 of 3 checks flagged — Reach Reconciliation shows 5.8mm discrepancy

Audit context

Overall consistency: red. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Pivot Les SL geometry exhibits systematic reach discrepancies across all five sizes, ranging from 5.3mm to 6.2mm, indicating a data inaccuracy in the published reach values. Stack reconciles within ±1mm engineering tolerance on four sizes (XS, SM, LG, XL), but size MD shows a 9.3mm significant data inaccuracy. Wheelbase reconciles within tolerance on XS, SM, and MD, with minor discrepancies of 3.1mm and 3.9mm on LG and XL respectively. The systematic reach discrepancies reflect an internal inconsistency between the published ETT geometry (which anchors the engine's BB horizontal position) and the published reach values.
