bike geometry

Specialized Crux 5 2026

Compare size-specific bike geometry, including reach, stack, angles, wheelbase and the measurements that influence fit and handling.

Specialized › Crux 5 › Standard › Crux 5

Crux 5 geometry measurements

Choose the recorded size and configuration. Geometry figures can change by size; RideDNA does not collapse those values into one misleading answer.

What is the reach of the Specialized Crux 5 2026?

Reach is the horizontal distance from the bottom bracket to the top of the head tube. Also searched as frame reach.

Configuration	Size	Reach	Source
Crux 5 geometry	49	374.8 mm	RideDNA-derived
Crux 5 geometry	58	411.9 mm	RideDNA-derived
Crux 5 geometry	56	400.6 mm	RideDNA-derived
Crux 5 geometry	61	425.1 mm	RideDNA-derived
Crux 5 geometry	54	388 mm	Manufacturer-published
Crux 5 geometry	52	382.7 mm	RideDNA-derived

What is the stack of the Specialized Crux 5 2026?

Stack is the vertical distance from the bottom bracket to the top of the head tube. Also searched as frame stack.

Configuration	Size	Stack	Source
Crux 5 geometry	49	530.5 mm	RideDNA-derived
Crux 5 geometry	58	596.7 mm	RideDNA-derived
Crux 5 geometry	56	576.8 mm	RideDNA-derived
Crux 5 geometry	61	620.4 mm	RideDNA-derived
Crux 5 geometry	54	558.7 mm	RideDNA-derived
Crux 5 geometry	52	545.6 mm	RideDNA-derived

What is the effective top tube of the Specialized Crux 5 2026?

Effective top tube is the horizontal distance between the head-tube and seat-tube centerlines. Also searched as ETT, virtual top tube, horizontal top tube.

Configuration	Size	Effective top tube	Source
Crux 5 geometry	49	512 mm	Recorded geometry
Crux 5 geometry	58	583 mm	Recorded geometry
Crux 5 geometry	56	566 mm	Recorded geometry
Crux 5 geometry	61	603 mm	Recorded geometry
Crux 5 geometry	54	543 mm	Recorded geometry
Crux 5 geometry	52	534 mm	Recorded geometry

What is the head tube angle of the Specialized Crux 5 2026?

Head tube angle describes the steering-axis angle relative to the ground. Also searched as HTA, head angle, steering angle.

Configuration	Size	Head tube angle	Source
Crux 5 geometry	49	70.5 °	Recorded geometry
Crux 5 geometry	58	71.5 °	Recorded geometry
Crux 5 geometry	56	71.5 °	Recorded geometry
Crux 5 geometry	61	71.5 °	Recorded geometry
Crux 5 geometry	54	71 °	Recorded geometry
Crux 5 geometry	52	70.75 °	Recorded geometry

What is the seat tube angle of the Specialized Crux 5 2026?

Seat tube angle describes the seat-tube angle relative to the ground. Also searched as STA, seat angle, effective seat angle.

Configuration	Size	Seat tube angle	Source
Crux 5 geometry	49	75.5 °	Recorded geometry
Crux 5 geometry	58	74 °	Recorded geometry
Crux 5 geometry	56	74 °	Recorded geometry
Crux 5 geometry	61	74 °	Recorded geometry
Crux 5 geometry	54	74.5 °	Recorded geometry
Crux 5 geometry	52	74.5 °	Recorded geometry

What is the trail of the Specialized Crux 5 2026?

Trail is the ground distance between the steering-axis intercept and the front tire contact point. Also searched as fork trail, mechanical trail.

Configuration	Size	Trail	Source
Crux 5 geometry	49	72 mm	Manufacturer-published
Crux 5 geometry	58	65.3 mm	RideDNA-derived
Crux 5 geometry	56	65.3 mm	RideDNA-derived
Crux 5 geometry	61	65.3 mm	RideDNA-derived
Crux 5 geometry	54	68.6 mm	RideDNA-derived
Crux 5 geometry	52	70.3 mm	RideDNA-derived

What is the wheelbase of the Specialized Crux 5 2026?

Wheelbase is the distance between the front and rear wheel axles. Also searched as axle-to-axle length.

Configuration	Size	Wheelbase	Source
Crux 5 geometry	49	1005.8 mm	RideDNA-derived
Crux 5 geometry	58	1057 mm	Manufacturer-published
Crux 5 geometry	56	1039.1 mm	RideDNA-derived
Crux 5 geometry	61	1078.1 mm	RideDNA-derived
Crux 5 geometry	54	1025.3 mm	RideDNA-derived
Crux 5 geometry	52	1016.7 mm	RideDNA-derived

What is the chainstay length of the Specialized Crux 5 2026?

Chainstay length, also called rear center, is the distance from the bottom bracket to the rear axle. Also searched as Chainstay, rear center, rear centre.

Configuration	Size	Chainstay length	Source
Crux 5 geometry	49	425 mm	Recorded geometry
Crux 5 geometry	58	425 mm	Recorded geometry
Crux 5 geometry	56	425 mm	Recorded geometry
Crux 5 geometry	61	425 mm	Recorded geometry
Crux 5 geometry	54	425 mm	Recorded geometry
Crux 5 geometry	52	425 mm	Recorded geometry

What is the bottom bracket drop of the Specialized Crux 5 2026?

Bottom bracket drop is the vertical distance from the wheel-axle line down to the bottom bracket. Also searched as BB drop.

Configuration	Size	Bottom bracket drop	Source
Crux 5 geometry	49	80 mm	Recorded geometry
Crux 5 geometry	58	78 mm	Recorded geometry
Crux 5 geometry	56	78 mm	Recorded geometry
Crux 5 geometry	61	78 mm	Recorded geometry
Crux 5 geometry	54	78 mm	Recorded geometry
Crux 5 geometry	52	80 mm	Recorded geometry

What is the bottom bracket height of the Specialized Crux 5 2026?

Bottom bracket height is the vertical distance from the ground to the bottom bracket. Also searched as BB height.

Configuration	Size	Bottom bracket height	Source
Crux 5 geometry	49	276 mm	RideDNA-derived
Crux 5 geometry	58	278 mm	RideDNA-derived
Crux 5 geometry	56	278 mm	RideDNA-derived
Crux 5 geometry	61	278 mm	RideDNA-derived
Crux 5 geometry	54	278 mm	RideDNA-derived
Crux 5 geometry	52	276 mm	RideDNA-derived

What is the front center of the Specialized Crux 5 2026?

Front center is the distance from the bottom bracket to the front wheel axle. Also searched as front centre.

Configuration	Size	Front center	Source
Crux 5 geometry	49	593.9 mm	RideDNA-derived
Crux 5 geometry	58	644 mm	Manufacturer-published
Crux 5 geometry	56	626.2 mm	RideDNA-derived
Crux 5 geometry	61	665 mm	Manufacturer-published
Crux 5 geometry	54	612.5 mm	RideDNA-derived
Crux 5 geometry	52	604.6 mm	RideDNA-derived

What is the fork offset of the Specialized Crux 5 2026?

Fork offset is the perpendicular distance between the steering axis and the front axle. Also searched as fork rake, rake.

Configuration	Size	Fork offset	Source
Crux 5 geometry	49	51 mm	Manufacturer-published
Crux 5 geometry	58	51 mm	Manufacturer-published
Crux 5 geometry	56	51 mm	Manufacturer-published
Crux 5 geometry	61	51 mm	Manufacturer-published
Crux 5 geometry	54	51 mm	Manufacturer-published
Crux 5 geometry	52	51 mm	Manufacturer-published

What is the head tube length of the Specialized Crux 5 2026?

Head tube length is the measured length of the frame's head tube. Also searched as Head tube, head tube.

Configuration	Size	Head tube length	Source
Crux 5 geometry	49	95 mm	Recorded geometry
Crux 5 geometry	58	163 mm	Recorded geometry
Crux 5 geometry	56	142 mm	Recorded geometry
Crux 5 geometry	61	188 mm	Recorded geometry
Crux 5 geometry	54	125 mm	Recorded geometry
Crux 5 geometry	52	110 mm	Recorded geometry

What is the seat tube length of the Specialized Crux 5 2026?

Seat tube length is the recorded length of the frame's seat tube; measurement conventions can differ by manufacturer. Also searched as Seat tube, seat tube, frame size.

Configuration	Size	Seat tube length	Source
Crux 5 geometry	49	445 mm	Recorded geometry
Crux 5 geometry	58	515 mm	Recorded geometry
Crux 5 geometry	56	497 mm	Recorded geometry
Crux 5 geometry	61	545 mm	Recorded geometry
Crux 5 geometry	54	473 mm	Recorded geometry
Crux 5 geometry	52	456 mm	Recorded geometry

What is the standover height of the Specialized Crux 5 2026?

Standover height is the ground-to-top-tube height at the manufacturer's stated measurement point. Also searched as Standover, stand over height, standover clearance.

Configuration	Size	Standover height	Source
Crux 5 geometry	49	730.1 mm	RideDNA-derived
Crux 5 geometry	58	797.4 mm	RideDNA-derived
Crux 5 geometry	56	778.8 mm	RideDNA-derived
Crux 5 geometry	61	823.7 mm	RideDNA-derived
Crux 5 geometry	54	758.8 mm	RideDNA-derived
Crux 5 geometry	52	742 mm	RideDNA-derived

What is the fork length of the Specialized Crux 5 2026?

Fork length is the axle-to-crown distance recorded for the fork. Also searched as axle to crown, A2C.

Configuration	Size	Fork length	Source
Crux 5 geometry	49	401 mm	Manufacturer-published
Crux 5 geometry	58	401 mm	Manufacturer-published
Crux 5 geometry	56	401 mm	Manufacturer-published
Crux 5 geometry	61	401 mm	Manufacturer-published
Crux 5 geometry	54	401 mm	Manufacturer-published
Crux 5 geometry	52	401 mm	Manufacturer-published

What is the wheel flop of the Specialized Crux 5 2026?

Wheel flop is a calculated steering-geometry value based on trail and head tube angle. Also searched as flop.

Configuration	Size	Wheel flop	Source
Crux 5 geometry	49	22.6 mm	RideDNA-derived
Crux 5 geometry	58	19.7 mm	RideDNA-derived
Crux 5 geometry	56	19.7 mm	RideDNA-derived
Crux 5 geometry	61	19.7 mm	RideDNA-derived
Crux 5 geometry	54	21.1 mm	RideDNA-derived
Crux 5 geometry	52	21.9 mm	RideDNA-derived

Geometry

Available sizes: 49, 58, 56, 61, 54, 52.

Crux 5 geometry

Jump to size: 49 · 52 · 54 · 56 · 58 · 61

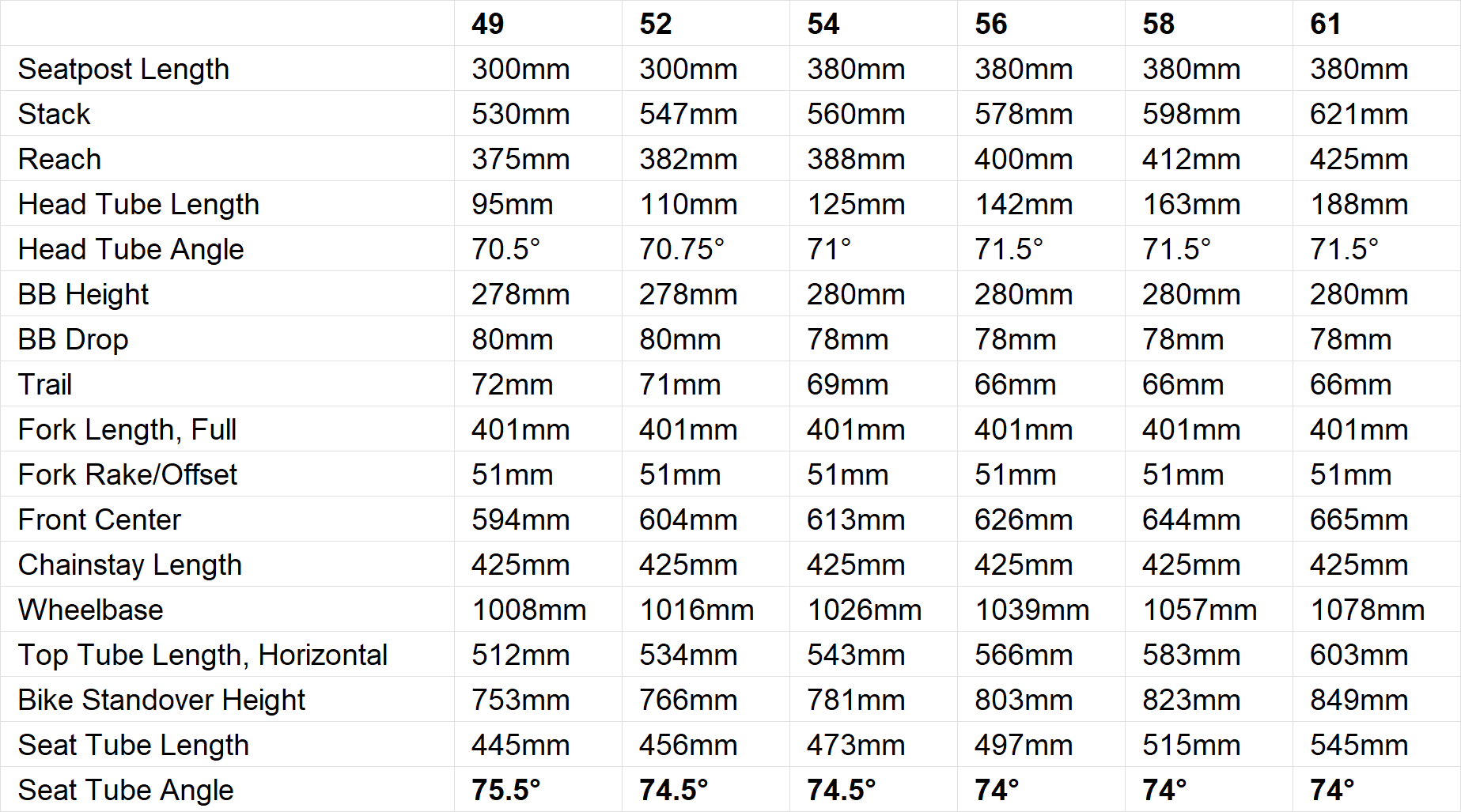

Crux 5 geometry geometry by size
Size	Reach	Stack	ETT	HTA	STA	Trail	Wheelbase	Chainstay	BB drop	BB height	Front center	Fork offset	Head tube	Seat tube	Standover	Fork length	Wheel flop	Max tire
49	374.8 mm^*	530.5 mm^*	512 mm^‡	70.5 °^‡	75.5 °^‡	72 mm	1005.8 mm^*	425 mm^‡	80 mm^‡†	276 mm^*†	593.9 mm^*	51 mm	95 mm^‡	445 mm^‡	730.1 mm^*	401 mm	22.6 mm^*†	†
52	382.7 mm^*	545.6 mm^*	534 mm^‡	70.75 °^‡	74.5 °^‡	70.3 mm^*	1016.7 mm^*	425 mm^‡	80 mm^‡†	276 mm^*†	604.6 mm^*	51 mm	110 mm^‡	456 mm^‡	742 mm^*	401 mm	21.9 mm^*†	†
54	388 mm	558.7 mm^*	543 mm^‡	71 °^‡	74.5 °^‡	68.6 mm^*	1025.3 mm^*	425 mm^‡	78 mm^‡†	278 mm^*†	612.5 mm^*	51 mm	125 mm^‡	473 mm^‡	758.8 mm^*	401 mm	21.1 mm^*†	†
56	400.6 mm^*	576.8 mm^*	566 mm^‡	71.5 °^‡	74 °^‡	65.3 mm^*	1039.1 mm^*	425 mm^‡	78 mm^‡†	278 mm^*†	626.2 mm^*	51 mm	142 mm^‡	497 mm^‡	778.8 mm^*	401 mm	19.7 mm^*†	†
58	411.9 mm^*	596.7 mm^*	583 mm^‡	71.5 °^‡	74 °^‡	65.3 mm^*	1057 mm	425 mm^‡	78 mm^‡†	278 mm^*†	644 mm	51 mm	163 mm^‡	515 mm^‡	797.4 mm^*	401 mm	19.7 mm^*†	†
61	425.1 mm^*	620.4 mm^*	603 mm^‡	71.5 °^‡	74 °^‡	65.3 mm^*	1078.1 mm^*	425 mm^‡	78 mm^‡†	278 mm^*†	665 mm	51 mm	188 mm^‡	545 mm^‡	823.7 mm^*	401 mm	19.7 mm^*†	†

Length measurements are in millimeters; HTA and STA are in degrees. ETT means effective top tube. Values prioritize RideDNA calculations. * RideDNA calculated (including corrections where published values differ). Unmarked values are manufacturer-published; matching independently calculated values are identified in their source notes. † Manufacturer did not publish this dimension; † alone means no reliable value is available. ‡ Staff reference or source not confirmed; see the source note. Open Geometry Audit for the original published values, calculated geometry, and deltas.

Size-to-size changes

Differences are calculated from the recorded values; they are not fit recommendations.

Crux 5 geometry: 49 → 52 — Reach +7.9 mm, Stack +15.1 mm, ETT +22 mm, HTA +0.25 °, STA -1 °, Trail -1.7 mm, Wheelbase +10.9 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +10.7 mm, Fork offset +0 mm, Head tube +15 mm, Seat tube +11 mm, Standover +11.9 mm, Fork length +0 mm, Wheel flop -0.7 mm
Crux 5 geometry: 52 → 54 — Reach +5.3 mm, Stack +13.1 mm, ETT +9 mm, HTA +0.25 °, STA +0 °, Trail -1.7 mm, Wheelbase +8.6 mm, Chainstay +0 mm, BB drop -2 mm, BB height +2 mm, Front center +7.9 mm, Fork offset +0 mm, Head tube +15 mm, Seat tube +17 mm, Standover +16.8 mm, Fork length +0 mm, Wheel flop -0.8 mm
Crux 5 geometry: 54 → 56 — Reach +12.6 mm, Stack +18.1 mm, ETT +23 mm, HTA +0.5 °, STA -0.5 °, Trail -3.3 mm, Wheelbase +13.8 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +13.7 mm, Fork offset +0 mm, Head tube +17 mm, Seat tube +24 mm, Standover +20 mm, Fork length +0 mm, Wheel flop -1.4 mm
Crux 5 geometry: 56 → 58 — Reach +11.3 mm, Stack +19.9 mm, ETT +17 mm, HTA +0 °, STA +0 °, Trail +0 mm, Wheelbase +17.9 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +17.8 mm, Fork offset +0 mm, Head tube +21 mm, Seat tube +18 mm, Standover +18.6 mm, Fork length +0 mm, Wheel flop +0 mm
Crux 5 geometry: 58 → 61 — Reach +13.2 mm, Stack +23.7 mm, ETT +20 mm, HTA +0 °, STA +0 °, Trail +0 mm, Wheelbase +21.1 mm, Chainstay +0 mm, BB drop +0 mm, BB height +0 mm, Front center +21 mm, Fork offset +0 mm, Head tube +25 mm, Seat tube +30 mm, Standover +26.3 mm, Fork length +0 mm, Wheel flop +0 mm

RideDNA-derived values

These deterministic calculations use the recorded inputs above. They are separate from recorded facts and are not fit recommendations.

Crux 5 geometry size 49 stack Reach Ratio: 1.42
Crux 5 geometry size 58 stack Reach Ratio: 1.45
Crux 5 geometry size 56 stack Reach Ratio: 1.44
Crux 5 geometry size 61 stack Reach Ratio: 1.46
Crux 5 geometry size 54 stack Reach Ratio: 1.44
Crux 5 geometry size 52 stack Reach Ratio: 1.43
