ENVE Melee 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

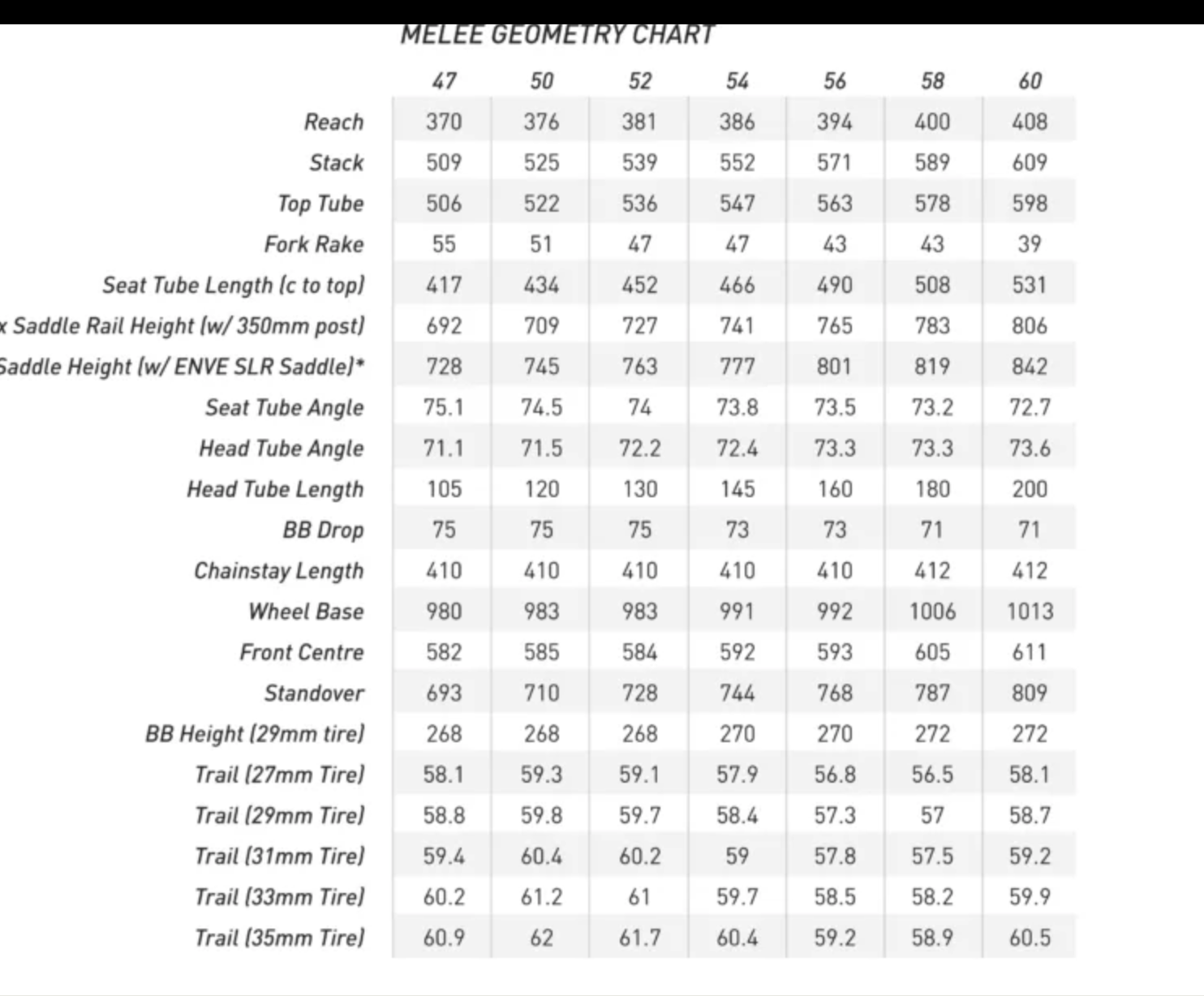

ENVE Melee 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
47 509 mm published370 mm published71.1 ° derived75.1 ° derived506 mm derived410 mm derived980 mm published582 mm published75 mm derived59.0 mm derived55 mm published green
All 4 consistency checks passed
50 525 mm published376 mm published71.5 ° derived74.5 ° derived522 mm derived410 mm derived983 mm published585 mm published75 mm derived60.7 mm derived51 mm published green
All 4 consistency checks passed
52 539 mm published381 mm published72.2 ° derived74.0 ° derived536 mm derived410 mm derived983 mm published584 mm published75 mm derived60.4 mm derived47 mm published green
All 4 consistency checks passed
54 552 mm published386 mm published72.4 ° derived73.8 ° derived547 mm derived410 mm derived991 mm published592 mm published73 mm derived59.2 mm derived47 mm published green
All 4 consistency checks passed
56 571 mm published394 mm published73.3 ° derived73.5 ° derived563 mm derived410 mm derived992 mm published593 mm published73 mm derived57.3 mm published43 mm published green
All 5 consistency checks passed
58 589 mm published400 mm published73.2 ° derived73.3 ° derived578 mm derived412 mm derived1006 mm published605 mm published71 mm derived56.5 mm published43 mm published yellow
1 of 5 checks flagged — Wheelbase Reconciliation shows 2.4mm discrepancy
60 609 mm published408 mm published73.6 ° derived72.7 ° derived598 mm derived412 mm derived1013 mm published611 mm published71 mm derived58.1 mm published39 mm published green
All 5 consistency checks passed

Audit context

Overall consistency: yellow. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The ENVE Melee geometry reconciles within ±1mm engineering tolerance across all checks for six of seven sizes. Size 58 shows a 2.4mm wheelbase data inaccuracy. The manufacturer's published geometry demonstrates strong internal consistency, with the ETT-anchored forward model producing reach and front center calculations that align closely with published values across the size run.
