Orbea Orca 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

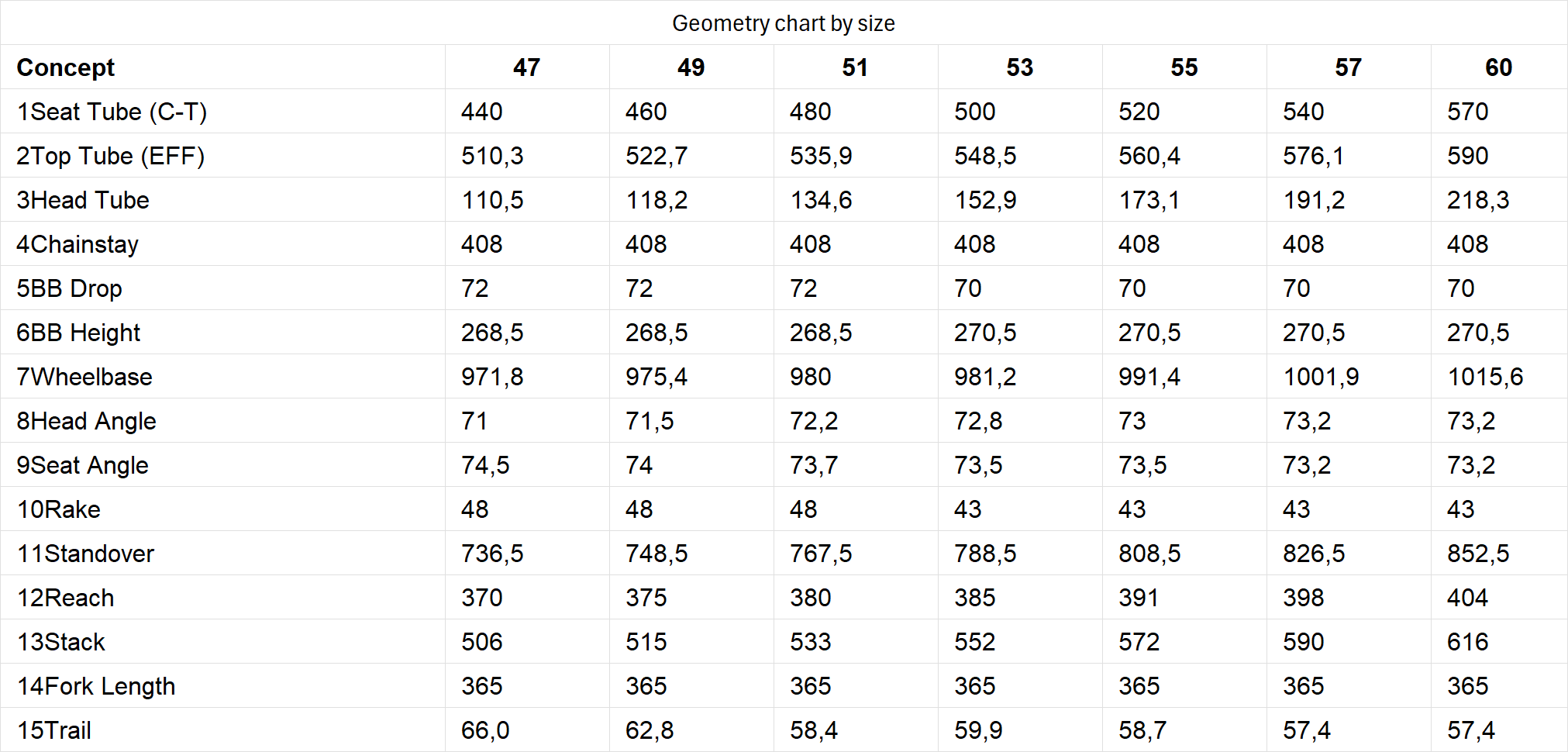

Orbea Orca 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
47 506 mm published370 mm published71.0 ° derived74.5 ° derived510 mm derived408 mm derived972 mm published575 mm derived72 mm derived66.0 mm published48 mm published green
All 4 consistency checks passed
49 515 mm published375 mm published71.5 ° derived74.0 ° derived523 mm derived408 mm derived975 mm published578 mm derived72 mm derived62.8 mm published48 mm published green
All 4 consistency checks passed
51 533 mm published380 mm published72.2 ° derived73.7 ° derived536 mm derived408 mm derived980 mm published583 mm derived72 mm derived58.4 mm published48 mm published green
All 4 consistency checks passed
53 552 mm published385 mm published72.8 ° derived73.5 ° derived549 mm derived408 mm derived981 mm published583 mm derived70 mm derived59.9 mm published43 mm published green
All 4 consistency checks passed
55 572 mm published391 mm published73.0 ° derived73.5 ° derived560 mm derived408 mm derived991 mm published594 mm derived70 mm derived58.7 mm published43 mm published green
All 4 consistency checks passed
57 590 mm published398 mm published73.2 ° derived73.2 ° derived576 mm derived408 mm derived1002 mm published604 mm derived70 mm derived57.4 mm published43 mm published green
All 4 consistency checks passed
60 616 mm published404 mm published73.2 ° derived73.2 ° derived590 mm derived408 mm derived1016 mm published618 mm derived70 mm derived57.4 mm published43 mm published green
All 4 consistency checks passed

Audit context

Overall consistency: green. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Orbea Orca's published geometry reconciles with the RideDNA engine's forward-model calculations within ±1mm engineering tolerance across all seven sizes. Stack, reach, wheelbase, and trail all show deltas ≤0.3mm, confirming internal consistency of the manufacturer's published specification. The model uses intentionally different fork offsets across the size run (48mm for sizes 47–51, 43mm for sizes 53–60) to maintain consistent handling characteristics across the head tube angle range.
