Orbea Orca Aero 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

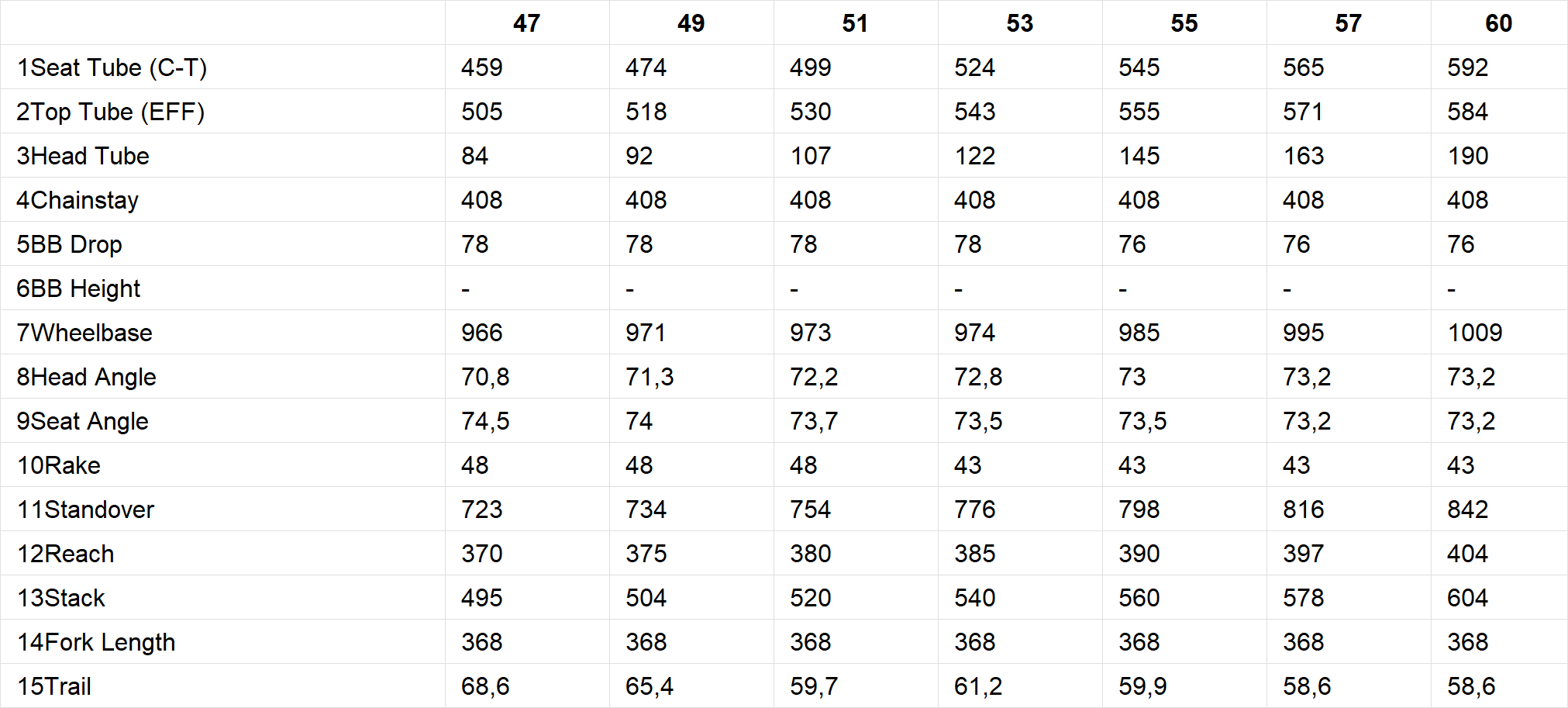

Orbea Orca Aero 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
47 495 mm published370 mm published70.8 ° derived74.5 ° derived505 mm derived408 mm derived966 mm published569 mm derived78 mm derived68.6 mm published48 mm published yellow
2 of 4 checks flagged — Reach Reconciliation shows 2.6mm discrepancy
49 504 mm published375 mm published71.3 ° derived74.0 ° derived518 mm derived408 mm derived971 mm published573 mm derived78 mm derived65.4 mm published48 mm published yellow
1 of 4 checks flagged — Wheelbase Reconciliation shows 2.5mm discrepancy
51 520 mm published380 mm published72.2 ° derived73.7 ° derived530 mm derived408 mm derived973 mm published575 mm derived78 mm derived59.7 mm published48 mm published yellow
2 of 4 checks flagged — Reach Reconciliation shows 2.6mm discrepancy
53 540 mm published385 mm published72.8 ° derived73.5 ° derived543 mm derived408 mm derived974 mm published576 mm derived78 mm derived61.2 mm published43 mm published yellow
1 of 4 checks flagged — Wheelbase Reconciliation shows 2.5mm discrepancy
55 560 mm published390 mm published73.0 ° derived73.5 ° derived555 mm derived408 mm derived985 mm published587 mm derived76 mm derived59.9 mm published43 mm published yellow
1 of 4 checks flagged — Wheelbase Reconciliation shows 2.1mm discrepancy
57 578 mm published397 mm published73.2 ° derived73.2 ° derived571 mm derived408 mm derived995 mm published598 mm derived76 mm derived58.6 mm published43 mm published green
All 4 consistency checks passed
60 604 mm published404 mm published73.2 ° derived73.2 ° derived584 mm derived408 mm derived1009 mm published611 mm derived76 mm derived58.6 mm published43 mm published yellow
2 of 4 checks flagged — Reach Reconciliation shows 2.2mm discrepancy

Audit context

Overall consistency: yellow. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

Geometry reconciliation applies a 6mm integrated headset top cap correction to both stack and reach before comparison against the engine's forward-model calculations. Stack reconciles within ±1mm engineering tolerance across all seven sizes. Reach shows 2.2–2.6mm data inaccuracies in the published values on sizes 47, 51, and 60, while sizes 49, 53, 55, and 57 reconcile within tolerance. Wheelbase shows systematic 2.1–2.5mm data inaccuracies across six sizes (47, 49, 51, 53, 55, 60), with only size 57 reconciling within tolerance. Trail reconciles within ±1mm engineering tolerance across all sizes.
