Ridley Noah Fast 3.0 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

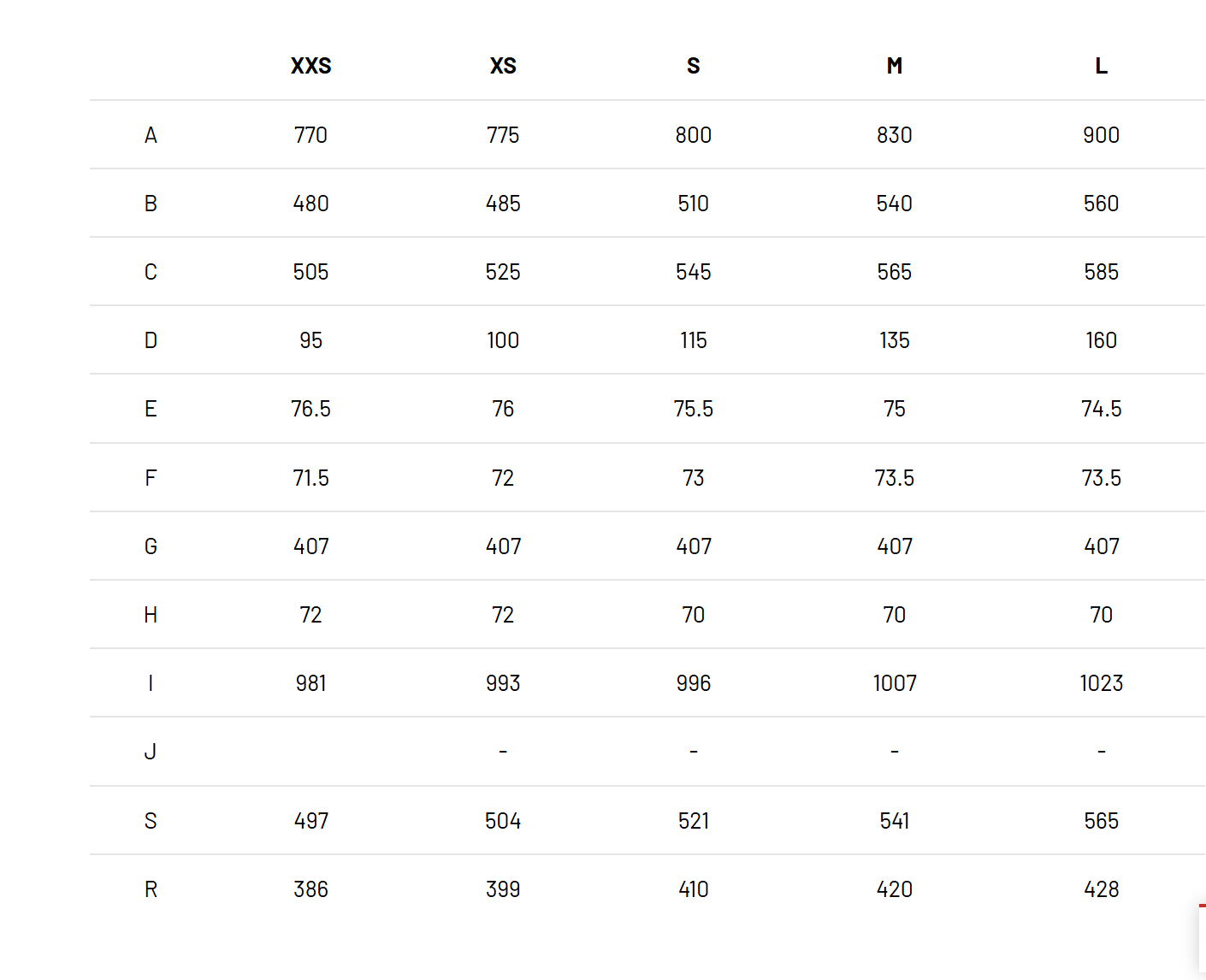

Ridley Noah Fast 3.0 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
L 565 mm published428 mm published73.5 ° derived74.5 ° derived585 mm derived407 mm derived1023 mm published626 mm derived70 mm derived53.6 mm derived46 mm derived green
All 3 consistency checks passed
M 541 mm published420 mm published73.5 ° derived75.0 ° derived565 mm derived407 mm derived1007 mm published611 mm derived70 mm derived53.6 mm derived46 mm derived green
All 3 consistency checks passed
S 521 mm published410 mm published73.0 ° derived75.5 ° derived545 mm derived407 mm derived996 mm published600 mm derived70 mm derived56.7 mm derived46 mm derived green
All 3 consistency checks passed
XS 504 mm published399 mm published72.0 ° derived76.0 ° derived525 mm derived407 mm derived993 mm published592 mm derived72 mm derived63.0 mm derived46 mm derived yellow
1 of 3 checks flagged — Wheelbase Reconciliation shows 4.8mm discrepancy
XXS 497 mm published386 mm published71.5 ° derived76.5 ° derived505 mm derived407 mm derived981 mm published581 mm derived72 mm derived66.1 mm derived46 mm derived yellow
1 of 3 checks flagged — Wheelbase Reconciliation shows 4.4mm discrepancy

Audit context

Overall consistency: yellow. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Ridley Noah Fast geometry specification shows strong internal consistency across the size run, with stack and reach reconciling within ±1mm engineering tolerance on all five sizes. Wheelbase shows 4.4–4.8mm data inaccuracies on sizes XXS and XS, while sizes S–L reconcile within tolerance. The manufacturer has not published trail values; the engine forward-computes trail using the manufacturer's stated 700 x 30c reference tire.
