Tavelo Arow 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

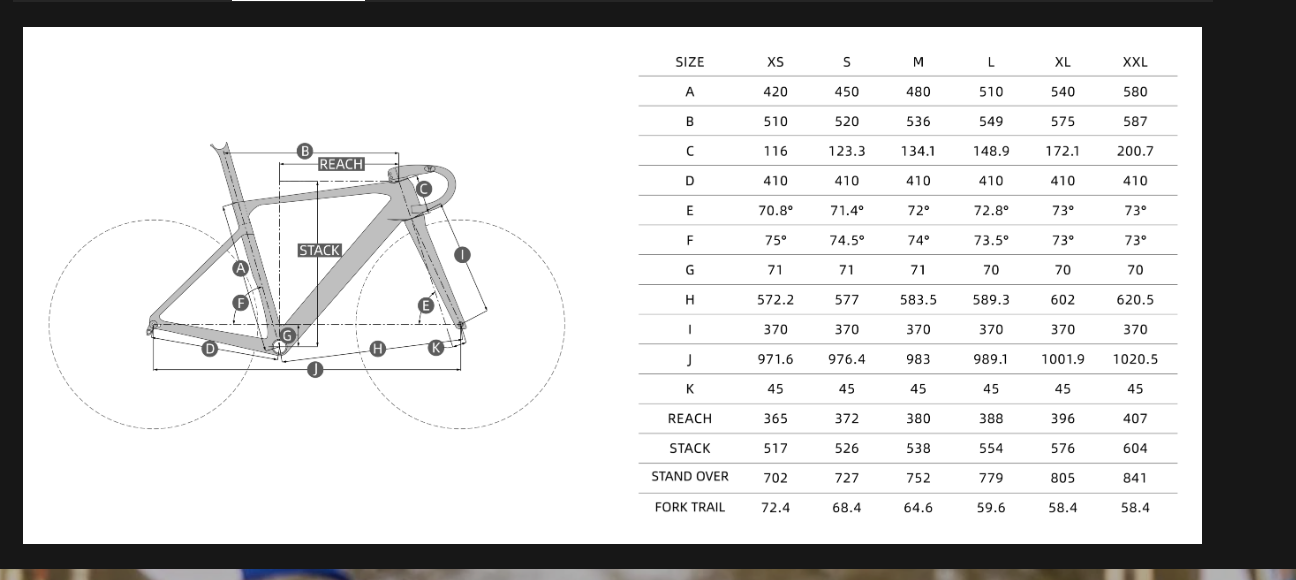

Tavelo Arow 2026 geometry chart

Source: Manufacturer geometry source

This profile is available for riders, but it is not currently indexed because its published geometry is not fully independently verified. Values marked derived are calculated by RideDNA; values marked published are transcribed from the manufacturer chart.

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
L 554 mm published388 mm published72.8 ° derived73.5 ° derived549 mm derived410 mm derived989 mm published589 mm published70 mm derived59.6 mm published45 mm published yellow
3 of 5 checks flagged — Reach Reconciliation shows 2.6mm discrepancy
M 538 mm published380 mm published72.0 ° derived74.0 ° derived536 mm derived410 mm derived983 mm published584 mm published71 mm derived64.6 mm published45 mm published yellow
1 of 5 checks flagged — Reach Reconciliation shows 2.2mm discrepancy
S 526 mm published372 mm published71.4 ° derived74.5 ° derived520 mm derived410 mm derived976 mm published577 mm published71 mm derived68.4 mm published45 mm published yellow
1 of 5 checks flagged — Reach Reconciliation shows 2.6mm discrepancy
XL 576 mm published396 mm published73.0 ° derived73.0 ° derived575 mm derived410 mm derived1002 mm published602 mm published70 mm derived58.4 mm published45 mm published yellow
3 of 5 checks flagged — Reach Reconciliation shows 3.1mm discrepancy
XS 517 mm published365 mm published70.8 ° derived75.0 ° derived510 mm derived410 mm derived972 mm published572 mm published71 mm derived72.4 mm published45 mm published red
3 of 5 checks flagged — Reach Reconciliation shows 7mm discrepancy
XXL 604 mm published407 mm published73.0 ° derived73.0 ° derived587 mm derived410 mm derived1021 mm published621 mm published70 mm derived58.4 mm published45 mm published yellow
3 of 5 checks flagged — Reach Reconciliation shows 4.2mm discrepancy

Audit context

Overall consistency: red. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Tavelo Arow geometry specification shows systematic discrepancies across reach, wheelbase, and front center. Reach deviates by 2.2–7.0mm across all six sizes, with size XS showing a 7.0mm significant data inaccuracy. Wheelbase and front center show parallel discrepancies ranging from 1.5–6.5mm, with size XS flagging 6.5mm significant data inaccuracies in both metrics. Stack and trail reconcile within ±1mm engineering tolerance across all sizes.
