Tavelo Grow 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

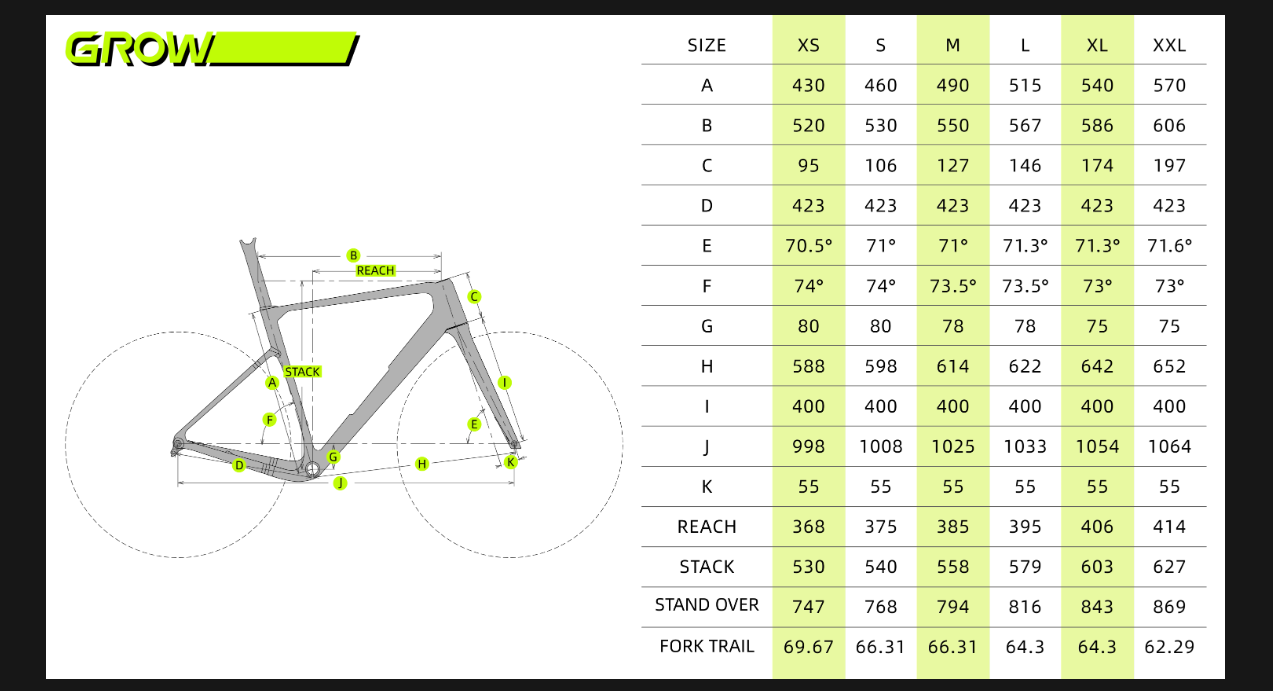

Tavelo Grow 2026 geometry chart

Source: Manufacturer geometry source

This profile is available for riders, but it is not currently indexed because its published geometry is not fully independently verified. Values marked derived are calculated by RideDNA; values marked published are transcribed from the manufacturer chart.

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
L 579 mm published395 mm published71.3 ° derived73.5 ° derived567 mm derived423 mm derived1033 mm published622 mm published78 mm derived64.3 mm published55 mm published red
2 of 5 checks flagged — Wheelbase Reconciliation shows 5.8mm discrepancy
M 558 mm published385 mm published71.0 ° derived73.5 ° derived550 mm derived423 mm derived1025 mm published614 mm published78 mm derived66.3 mm published55 mm published green
All 5 consistency checks passed
S 540 mm published375 mm published71.0 ° derived74.0 ° derived530 mm derived423 mm derived1008 mm published598 mm published80 mm derived66.3 mm published55 mm published green
All 5 consistency checks passed
XL 603 mm published406 mm published71.3 ° derived73.0 ° derived586 mm derived423 mm derived1054 mm published642 mm published75 mm derived64.3 mm published55 mm published yellow
1 of 5 checks flagged — Reach Reconciliation shows 3.8mm discrepancy
XS 530 mm published368 mm published70.5 ° derived74.0 ° derived520 mm derived423 mm derived998 mm published588 mm published80 mm derived69.7 mm published55 mm published yellow
2 of 5 checks flagged — Wheelbase Reconciliation shows 3mm discrepancy
XXL 627 mm published414 mm published71.6 ° derived73.0 ° derived606 mm derived423 mm derived1064 mm published652 mm published75 mm derived62.3 mm published55 mm published red
3 of 5 checks flagged — Wheelbase Reconciliation shows 8.1mm discrepancy

Audit context

Overall consistency: red. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Tavelo Grow geometry audit reveals isolated data inaccuracies on sizes L and XXL. Wheelbase and front center both show significant discrepancies on these two sizes (5.8–8.1mm), while sizes XS–M and XL reconcile within ±1mm engineering tolerance. Stack, reach, and trail reconcile well across all sizes. The systematic co-occurrence of wheelbase and front center discrepancies on the same sizes indicates internal inconsistency in the published geometry for those frames.
