Van Rysel RCR-F 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

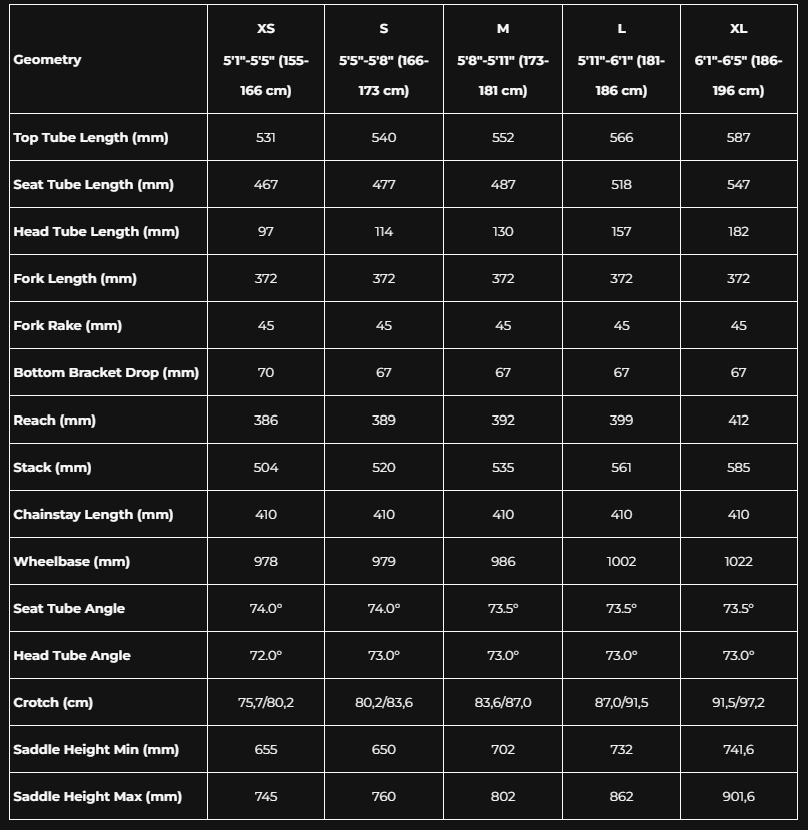

Van Rysel RCR-F 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
L 561 mm published399 mm published73.0 ° derived73.5 ° derived566 mm derived410 mm derived1002 mm published602 mm derived67 mm derived56.0 mm derived45 mm published green
All 3 consistency checks passed
M 535 mm published392 mm published73.0 ° derived73.5 ° derived552 mm derived410 mm derived986 mm published588 mm derived67 mm derived56.0 mm derived45 mm published yellow
1 of 3 checks flagged — Wheelbase Reconciliation shows 2.1mm discrepancy
S 520 mm published389 mm published73.0 ° derived74.0 ° derived540 mm derived410 mm derived979 mm published580 mm derived67 mm derived56.0 mm derived45 mm published yellow
1 of 3 checks flagged — Reach Reconciliation shows 2.3mm discrepancy
XL 585 mm published412 mm published73.0 ° derived73.5 ° derived587 mm derived410 mm derived1022 mm published623 mm derived67 mm derived56.0 mm derived45 mm published yellow
1 of 3 checks flagged — Reach Reconciliation shows 2.1mm discrepancy
XS 504 mm published386 mm published72.0 ° derived74.0 ° derived531 mm derived410 mm derived978 mm published579 mm derived70 mm derived62.2 mm derived45 mm published green
All 3 consistency checks passed

Audit context

Overall consistency: yellow. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Van Rysel RCR-F geometry specification shows strong overall reconciliation with the RideDNA engine's forward-model calculations. Stack reconciles within ±1mm engineering tolerance across all sizes. Reach shows 2.1–2.3mm data inaccuracies on sizes S and XL, while sizes XS, M, and L reconcile within tolerance. Wheelbase shows a 2.1mm data inaccuracy on size M, with all other sizes reconciling within tolerance.
