Van Rysel RCR Pro 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

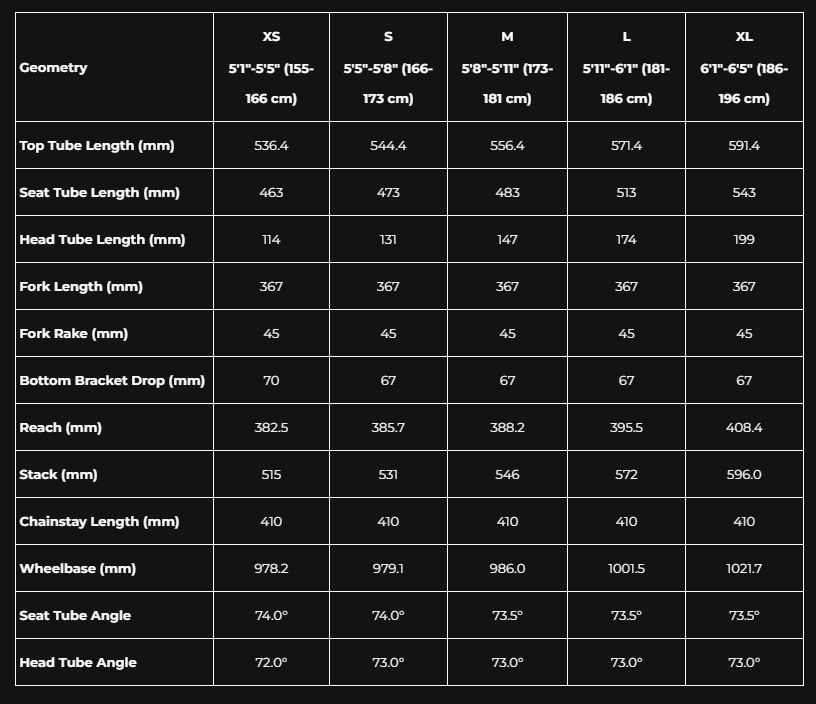

Van Rysel RCR Pro 2026 geometry chart

Source: Manufacturer geometry source

This profile is available for riders, but it is not currently indexed because its published geometry is not fully independently verified. Values marked derived are calculated by RideDNA; values marked published are transcribed from the manufacturer chart.

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
L 572 mm published396 mm published73.0 ° derived73.5 ° derived571 mm derived410 mm derived1002 mm published607 mm derived67 mm derived56.6 mm derived45 mm published red
2 of 3 checks flagged — Reach Reconciliation shows 6.7mm discrepancy
M 546 mm published388 mm published73.0 ° derived73.5 ° derived556 mm derived410 mm derived986 mm published592 mm derived67 mm derived56.6 mm derived45 mm published red
2 of 3 checks flagged — Reach Reconciliation shows 6.6mm discrepancy
S 531 mm published386 mm published73.0 ° derived74.0 ° derived544 mm derived410 mm derived979 mm published585 mm derived67 mm derived56.6 mm derived45 mm published red
2 of 3 checks flagged — Reach Reconciliation shows 6.7mm discrepancy
XL 596 mm published408 mm published73.0 ° derived73.5 ° derived591 mm derived410 mm derived1022 mm published627 mm derived67 mm derived56.6 mm derived45 mm published red
2 of 3 checks flagged — Reach Reconciliation shows 6.7mm discrepancy
XS 515 mm published383 mm published72.0 ° derived74.0 ° derived536 mm derived410 mm derived978 mm published585 mm derived70 mm derived62.8 mm derived45 mm published red
2 of 3 checks flagged — Reach Reconciliation shows 6.6mm discrepancy

Audit context

Overall consistency: red. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Van Rysel RCR Pro geometry specification shows systematic discrepancies across all five sizes. Stack reconciles within ±1mm engineering tolerance on all sizes. Reach shows a 6.6–6.7mm data inaccuracy in the published values across all sizes, and wheelbase shows a 6.4–6.7mm data inaccuracy across all sizes. Per the GEOMETRY INSIGHTS, the forward model used Effective Top Tube (ETT) as the geometry anchor to determine BB horizontal position — reach and wheelbase are both independently derived from this ETT-anchored BB position. The simultaneous and systematic discrepancies in both reach and wheelbase indicate the published reach and wheelbase values are not consistent with the published ETT specification.
