A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.
Source: Manufacturer geometry source
Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

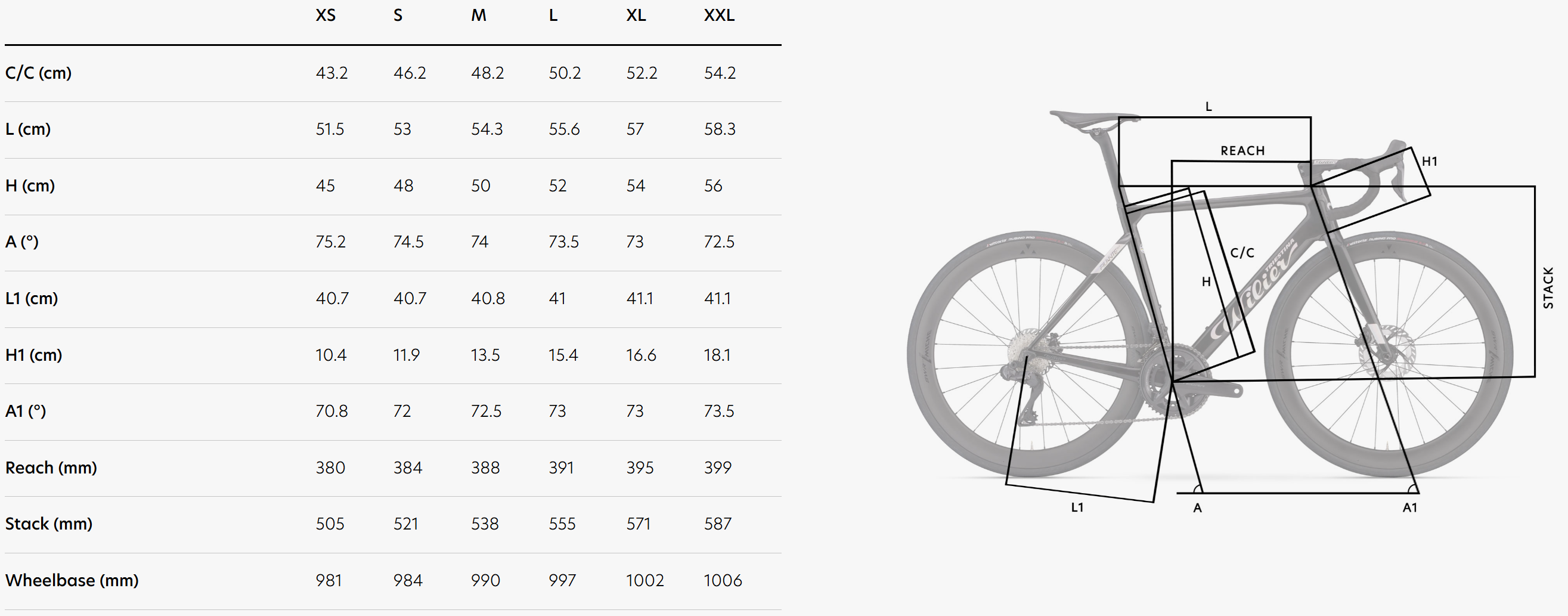

| Size | Stack | Reach | HTA | STA | ETT | Chainstay | Wheelbase | Front center | BB drop | Trail | Fork offset | Audit context |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 555 mm published | 391 mm published | 73.0 ° derived | 73.5 ° derived | 556 mm derived | 410 mm derived | 997 mm published | Not published | Not published | Not published | Not published | purple |
| 3 of 3 checks could not be independently verified — manufacturer did not publish the required geometry | ||||||||||||
| M | 538 mm published | 388 mm published | 72.5 ° derived | 74.0 ° derived | 543 mm derived | 408 mm derived | 990 mm published | Not published | Not published | Not published | Not published | purple |
| 3 of 3 checks could not be independently verified — manufacturer did not publish the required geometry | ||||||||||||
| S | 521 mm published | 384 mm published | 72.0 ° derived | 74.5 ° derived | 530 mm derived | 407 mm derived | 984 mm published | Not published | Not published | Not published | Not published | purple |
| 3 of 3 checks could not be independently verified — manufacturer did not publish the required geometry | ||||||||||||
| XL | 571 mm published | 395 mm published | 73.0 ° derived | 73.0 ° derived | 570 mm derived | 411 mm derived | 1002 mm published | Not published | Not published | Not published | Not published | purple |
| 3 of 3 checks could not be independently verified — manufacturer did not publish the required geometry | ||||||||||||
| XS | 505 mm published | 380 mm published | 70.8 ° derived | 75.2 ° derived | 515 mm derived | 407 mm derived | 981 mm published | Not published | Not published | Not published | Not published | purple |
| 3 of 3 checks could not be independently verified — manufacturer did not publish the required geometry | ||||||||||||
| XXL | 587 mm published | 399 mm published | 73.5 ° derived | 72.5 ° derived | 583 mm derived | 411 mm derived | 1006 mm published | Not published | Not published | Not published | Not published | purple |
| 3 of 3 checks could not be independently verified — manufacturer did not publish the required geometry | ||||||||||||
Overall consistency: purple. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.
The Wilier Filante SLR specification is deliberately incomplete — the manufacturer has withheld fork offset, fork axle-to-crown length (A2C), BB drop, front center, and trail. Front center and trail cannot be determined because all three core fork dimensions (offset, A2C, BB drop) are simultaneously withheld, blocking any back-calculation path. Stack, reach, and wheelbase show 0.0mm deltas across all six sizes, but these are trivial passes — the engine carried through the published values because the withheld dimensions prevent independent geometric calculation. These are not genuine verifications. The specification also exhibits unusual angle progression patterns: head tube angle shows step-downs between adjacent sizes (L 73° → XS 70.8°; XXL 73.5° → S 72°), and seat tube angle shows jumps of ≥1.0° between multiple size pairs (XL 73° → M 74°; L 73.5° → XS 75.2°; XS 75.2° → XXL 72.5°; XXL 72.5° → S 74.5°) — patterns that warrant verification of the source data, though the root cause cannot be determined from the published geometry data alone. By omitting these 5 dimensions, the manufacturer prevents independent scrutiny of its geometry claims and denies consumers the data they need to evaluate handling characteristics or make meaningful comparisons with competing models. These are not obscure technical figures — they are standard dimensions routinely published by competing manufacturers. This is a deliberate choice, not a technical limitation — the manufacturer possesses this information and has elected not to share it. Consumers cannot assess fit, predict handling, or compare this bicycle on equal terms without it. Transparency about geometry is not optional: it is the minimum standard a manufacturer owes to buyers making thousands-of-dollars purchasing decisions.
