A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.
Source: Manufacturer geometry source
Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.
| Size | Stack | Reach | HTA | STA | ETT | Chainstay | Wheelbase | Front center | BB drop | Trail | Fork offset | Audit context |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 579 mm published | 393 mm published | 71.2 ° derived | 73.5 ° derived | 566 mm derived | 421 mm derived | 1031 mm published | Not published | Not published | Not published | Not published | purple |
| 3 of 3 checks could not be independently verified — manufacturer did not publish the required geometry | ||||||||||||
| M | 561 mm published | 387 mm published | 70.8 ° derived | 74.0 ° derived | 549 mm derived | 421 mm derived | 1022 mm published | Not published | Not published | Not published | Not published | purple |
| 3 of 3 checks could not be independently verified — manufacturer did not publish the required geometry | ||||||||||||
| S | 546 mm published | 381 mm published | 70.0 ° derived | 74.7 ° derived | 532 mm derived | 419 mm derived | 1017 mm published | Not published | Not published | Not published | Not published | purple |
| 3 of 3 checks could not be independently verified — manufacturer did not publish the required geometry | ||||||||||||
| XL | 597 mm published | 400 mm published | 71.6 ° derived | 73.0 ° derived | 583 mm derived | 423 mm derived | 1042 mm published | Not published | Not published | Not published | Not published | purple |
| 3 of 3 checks could not be independently verified — manufacturer did not publish the required geometry | ||||||||||||
| XS | 532 mm published | 375 mm published | 69.2 ° derived | 75.5 ° derived | 516 mm derived | 419 mm derived | 1014 mm published | Not published | Not published | Not published | Not published | purple |
| 3 of 3 checks could not be independently verified — manufacturer did not publish the required geometry | ||||||||||||
| XXL | 617 mm published | 408 mm published | 72.0 ° derived | 73.0 ° derived | 597 mm derived | 423 mm derived | 1052 mm published | Not published | Not published | Not published | Not published | purple |
| 3 of 3 checks could not be independently verified — manufacturer did not publish the required geometry | ||||||||||||
Overall consistency: purple. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

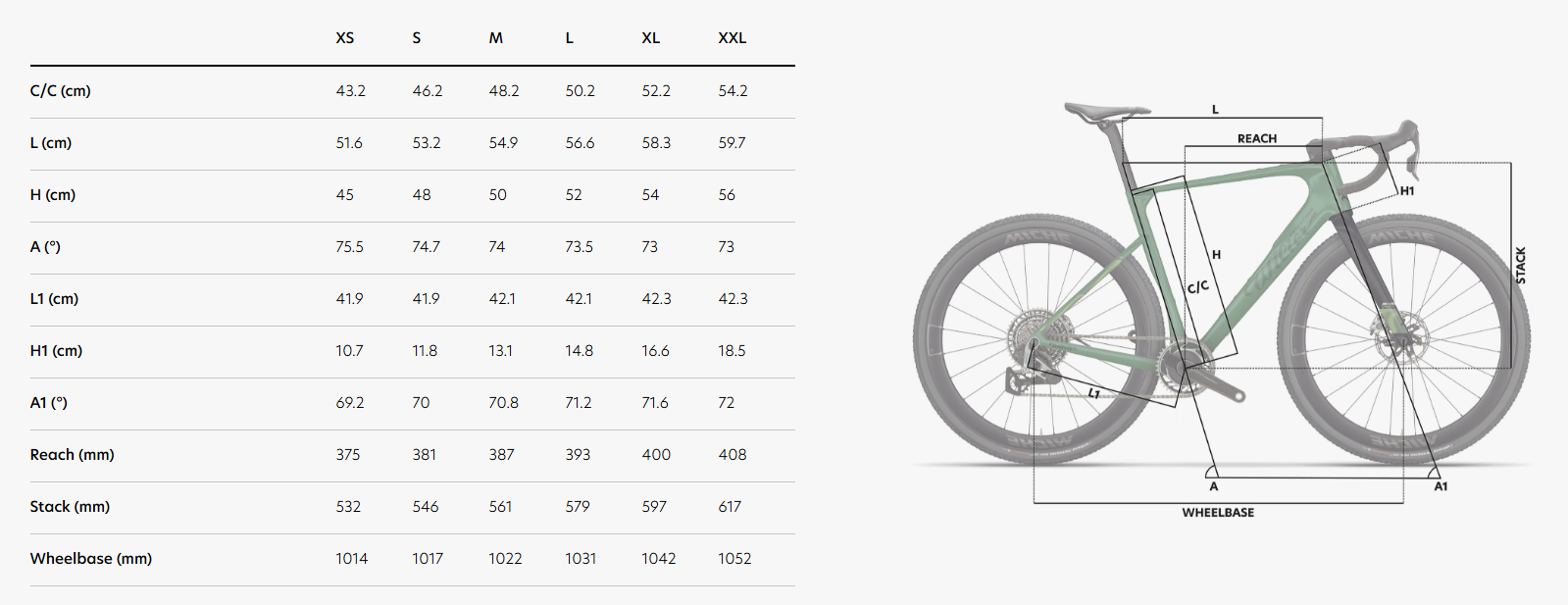

The Wilier Rave SLR ID2 specification is deliberately incomplete — the manufacturer has withheld fork offset, fork axle-to-crown length (A2C), BB drop, front center, and trail. Front center and trail cannot be determined because all three core fork dimensions (offset, A2C, BB drop) are simultaneously withheld, blocking any back-calculation path. The stack, reach, and wheelbase checks show 0.0mm deltas across all six sizes, but these are trivial passes — the engine carried through the published values because the withheld dimensions prevent independent geometric calculation. These are not genuine verifications. The geometry insights flag unusual angle progression patterns: head tube angle shows step-downs between adjacent sizes (XXL→M: −1.2°, M→S: −0.8°, L→XS: −2.0°), and seat tube angle shows jumps of ≥1.0° between multiple size pairs (XXL→M: +1.0°, S→L: −1.2°, L→XS: +2.0°, XS→XL: −2.5°) — these patterns warrant verification of the source data, though the root cause cannot be determined from the published geometry data alone. By omitting these 5 dimensions, the manufacturer prevents independent scrutiny of its geometry claims and denies consumers the data they need to evaluate handling characteristics or make meaningful comparisons with competing models. These are not obscure technical figures — they are standard dimensions routinely published by competing manufacturers. This is a deliberate choice, not a technical limitation — the manufacturer possesses this information and has elected not to share it. Consumers cannot assess fit, predict handling, or compare this bicycle on equal terms without it. Transparency about geometry is not optional: it is the minimum standard a manufacturer owes to buyers making thousands-of-dollars purchasing decisions.
