Bianchi Specialissima 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

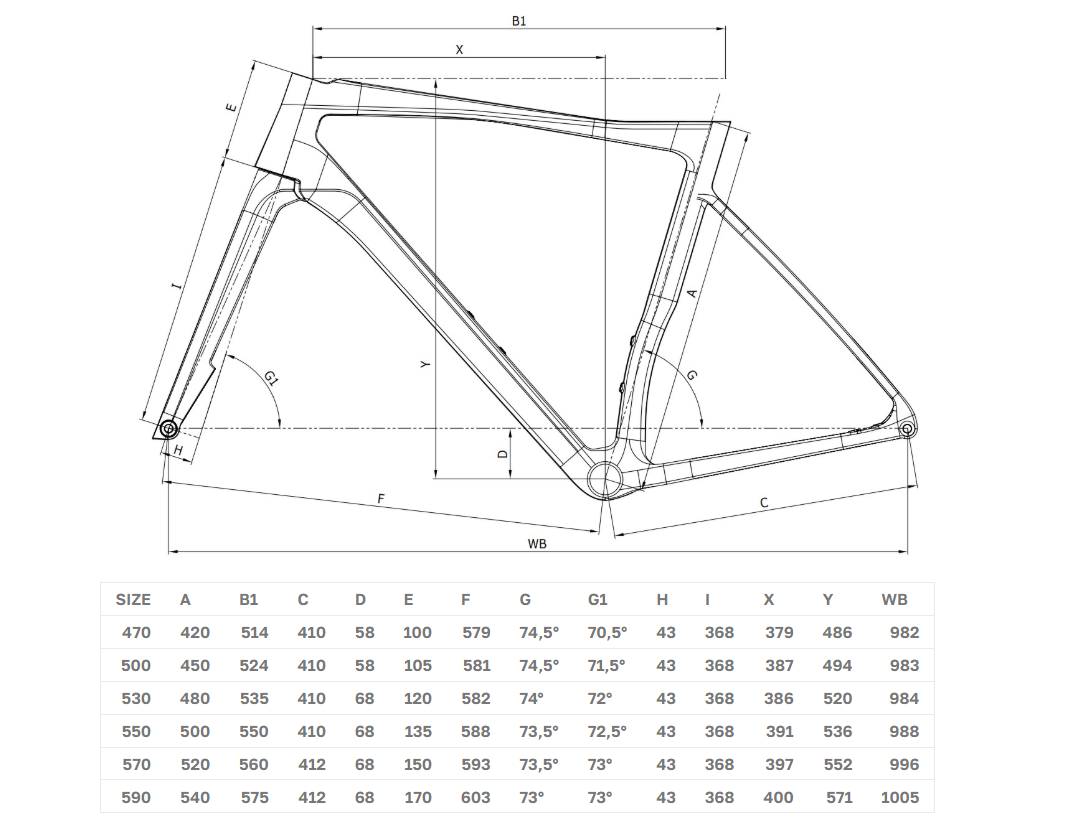

Bianchi Specialissima 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
470 486 mm published379 mm published70.5 ° derived74.5 ° derived514 mm derived410 mm derived982 mm published579 mm published58 mm derived75.1 mm derived43 mm published green
All 4 consistency checks passed
500 494 mm published387 mm published71.5 ° derived74.5 ° derived524 mm derived410 mm derived983 mm published581 mm published58 mm derived68.8 mm derived43 mm published green
All 4 consistency checks passed
530 520 mm published386 mm published72.0 ° derived74.0 ° derived535 mm derived410 mm derived984 mm published582 mm published68 mm derived65.6 mm derived43 mm published green
All 4 consistency checks passed
550 536 mm published391 mm published72.5 ° derived73.5 ° derived550 mm derived410 mm derived988 mm published588 mm published68 mm derived62.4 mm derived43 mm published green
All 4 consistency checks passed
570 552 mm published397 mm published73.0 ° derived73.5 ° derived560 mm derived412 mm derived996 mm published593 mm published68 mm derived59.3 mm derived43 mm published green
All 4 consistency checks passed
590 571 mm published400 mm published73.0 ° derived73.0 ° derived575 mm derived412 mm derived1005 mm published603 mm published68 mm derived59.3 mm derived43 mm published green
All 4 consistency checks passed

Audit context

Overall consistency: green. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Bianchi Specialissima's published geometry reconciles within ±1mm engineering tolerance across all six sizes for stack, reach, wheelbase, and front center. The forward-model calculations confirm internal consistency between the manufacturer's published effective top tube, reach, and front center specifications. The RideDNA Geometry Engine reconciliation analysis identifies a systematic stack mispublishing pattern: the published stack values appear inflated by approximately 1.2mm relative to what the other published geometry parameters imply, as evidenced by the co-firing of the head tube length and fork A2C back-calculation checks across all sizes.
