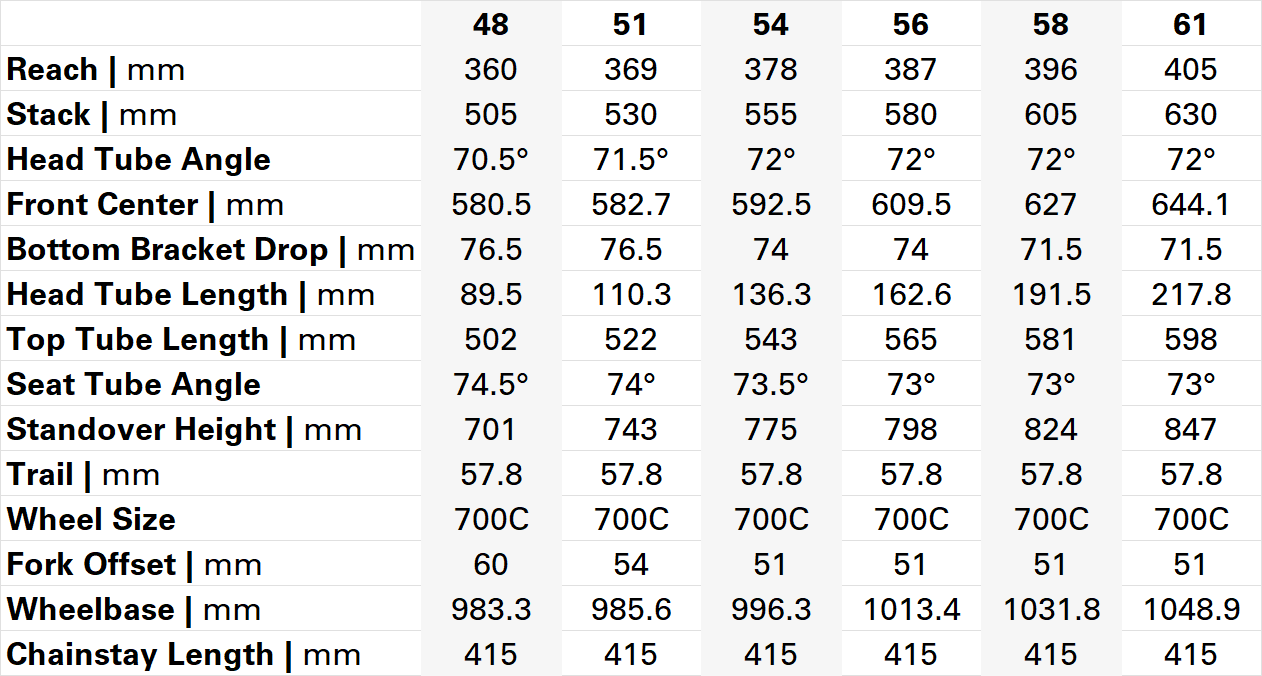

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.
Source: Manufacturer geometry source
Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.
| Size | Stack | Reach | HTA | STA | ETT | Chainstay | Wheelbase | Front center | BB drop | Trail | Fork offset | Audit context |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 505 mm published | 360 mm published | 70.5 ° derived | 74.5 ° derived | 502 mm derived | 415 mm derived | 983 mm published | 581 mm published | 77 mm derived | 57.8 mm published | 60 mm published | green |
| All 5 consistency checks passed | ||||||||||||
| 51 | 530 mm published | 369 mm published | 71.5 ° derived | 74.0 ° derived | 522 mm derived | 415 mm derived | 986 mm published | 583 mm published | 77 mm derived | 57.8 mm published | 54 mm published | green |
| All 5 consistency checks passed | ||||||||||||
| 54 | 555 mm published | 378 mm published | 72.0 ° derived | 73.5 ° derived | 543 mm derived | 415 mm derived | 996 mm published | 593 mm published | 74 mm derived | 57.8 mm published | 51 mm published | green |
| All 5 consistency checks passed | ||||||||||||
| 56 | 580 mm published | 387 mm published | 72.0 ° derived | 73.0 ° derived | 565 mm derived | 415 mm derived | 1013 mm published | 610 mm published | 74 mm derived | 57.8 mm published | 51 mm published | green |
| All 5 consistency checks passed | ||||||||||||
| 58 | 605 mm published | 396 mm published | 72.0 ° derived | 73.0 ° derived | 581 mm derived | 415 mm derived | 1032 mm published | 627 mm published | 72 mm derived | 57.8 mm published | 51 mm published | green |
| All 5 consistency checks passed | ||||||||||||
| 61 | 630 mm published | 405 mm published | 72.0 ° derived | 73.0 ° derived | 598 mm derived | 415 mm derived | 1049 mm published | 644 mm published | 72 mm derived | 57.8 mm published | 51 mm published | green |
| All 5 consistency checks passed | ||||||||||||
Overall consistency: green. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.
The Cervelo Caledonia 5 geometry specification reconciles within ±1mm engineering tolerance across all six sizes for stack, reach, wheelbase, front center, and trail. The engine's forward-model calculations, anchored to the published Effective Top Tube length, show maximum discrepancies of 2mm (reach, size 48) and 1.9mm (wheelbase and front center, size 48), with all other sizes reconciling within 1mm. This level of agreement confirms the internal geometric consistency of the published specification.
