Cervelo S5 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

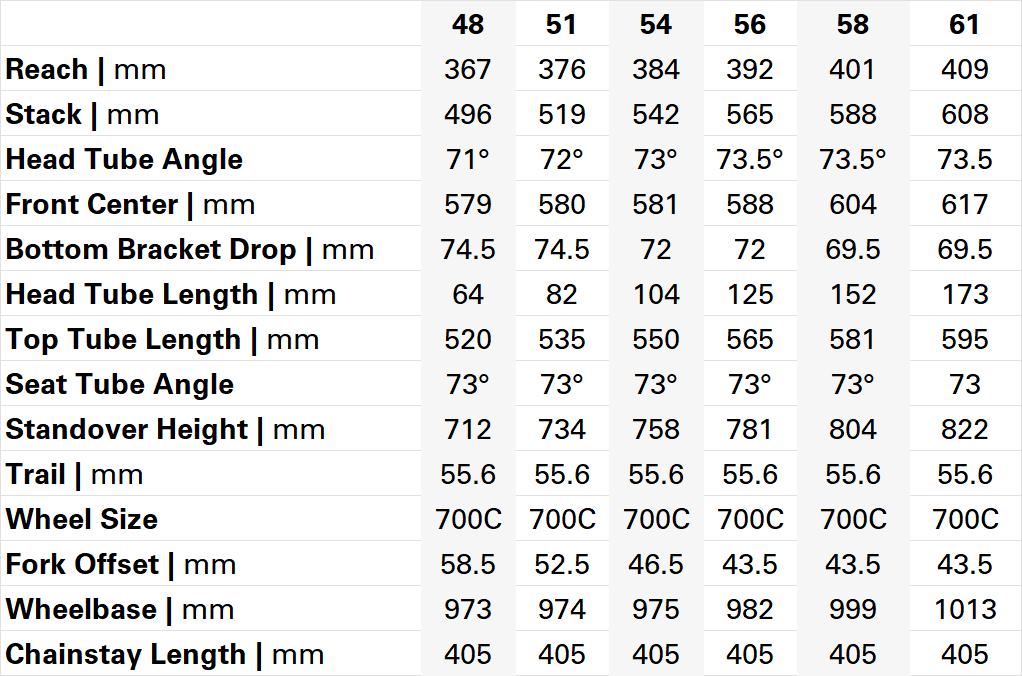

Cervelo S5 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
48 496 mm published367 mm published71.0 ° derived73.0 ° derived520 mm derived405 mm derived973 mm published579 mm published75 mm derived55.6 mm published59 mm published green
All 5 consistency checks passed
51 519 mm published376 mm published72.0 ° derived73.0 ° derived535 mm derived405 mm derived974 mm published580 mm published75 mm derived55.6 mm published53 mm published green
All 5 consistency checks passed
54 542 mm published384 mm published73.0 ° derived73.0 ° derived550 mm derived405 mm derived975 mm published581 mm published72 mm derived55.6 mm published47 mm published green
All 5 consistency checks passed
56 565 mm published392 mm published73.5 ° derived73.0 ° derived565 mm derived405 mm derived982 mm published588 mm published72 mm derived55.6 mm published44 mm published green
All 5 consistency checks passed
58 588 mm published401 mm published73.5 ° derived73.0 ° derived581 mm derived405 mm derived999 mm published604 mm published70 mm derived55.6 mm published44 mm published green
All 5 consistency checks passed
61 608 mm published409 mm published73.5 ° derived73.0 ° derived595 mm derived405 mm derived1013 mm published617 mm published70 mm derived55.6 mm published44 mm published green
All 5 consistency checks passed

Audit context

Overall consistency: green. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Cervélo S5 geometry specification demonstrates excellent internal consistency across all six sizes. All five forward-model checks — stack, reach, wheelbase, front center, and trail — reconcile within ±1mm engineering tolerance. The manufacturer's published geometry forms a coherent, self-consistent dataset that validates cleanly against first-principles kinematic calculations.
