Cervelo Soloist 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

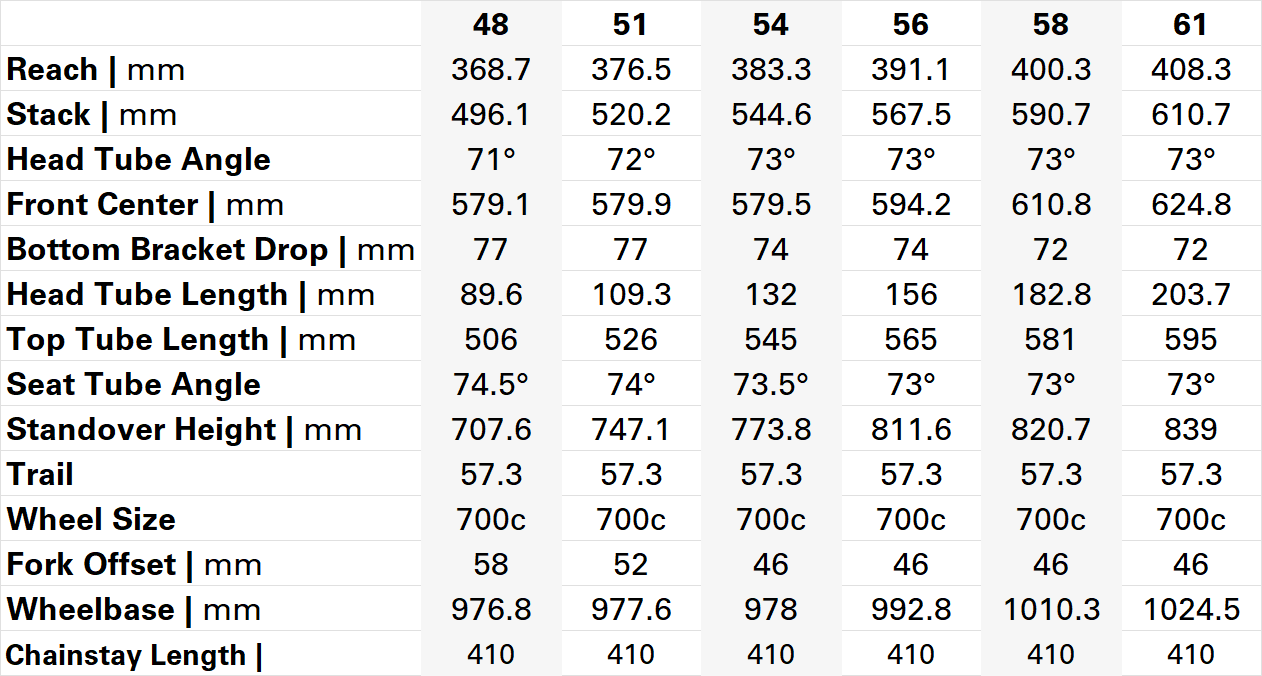

Cervelo Soloist 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
48 496 mm published369 mm published71.0 ° derived74.5 ° derived506 mm derived410 mm derived977 mm published579 mm published77 mm derived57.3 mm published58 mm published green
All 5 consistency checks passed
51 520 mm published377 mm published72.0 ° derived74.0 ° derived526 mm derived410 mm derived978 mm published580 mm published77 mm derived57.3 mm published52 mm published green
All 5 consistency checks passed
54 545 mm published383 mm published73.0 ° derived73.5 ° derived545 mm derived410 mm derived978 mm published580 mm published74 mm derived57.3 mm published46 mm published green
All 5 consistency checks passed
56 568 mm published391 mm published73.0 ° derived73.0 ° derived565 mm derived410 mm derived993 mm published594 mm published74 mm derived57.3 mm published46 mm published green
All 5 consistency checks passed
58 591 mm published400 mm published73.0 ° derived73.0 ° derived581 mm derived410 mm derived1010 mm published611 mm published72 mm derived57.3 mm published46 mm published green
All 5 consistency checks passed
61 611 mm published408 mm published73.0 ° derived73.0 ° derived595 mm derived410 mm derived1025 mm published625 mm published72 mm derived57.3 mm published46 mm published green
All 5 consistency checks passed

Audit context

Overall consistency: green. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Cervelo Soloist published geometry reconciles within ±1mm engineering tolerance across all six sizes for stack, reach, wheelbase, and front center. Trail shows a systematic 1.5–1.6mm discrepancy across all sizes, within ±1mm engineering tolerance. The manufacturer's published specification demonstrates strong internal geometric consistency. One size (48) shows an HTA↔STA inversion opposite to the model-line dominant pattern — a vision re-audit of this size is recommended to verify the published angles.
