Trek Domane SLR Gen 5 2027 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

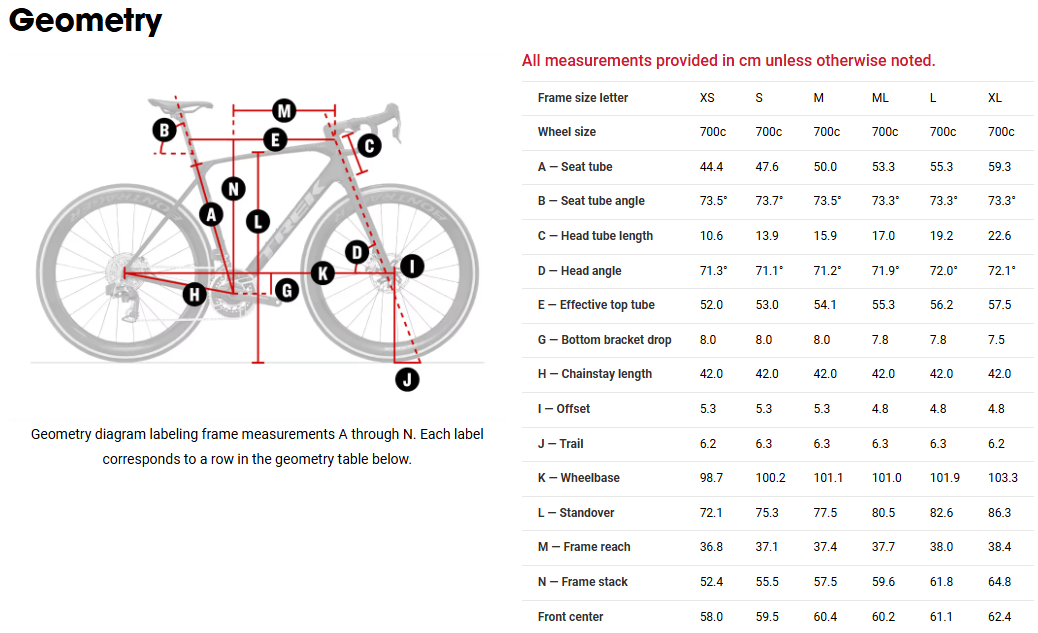

Trek Domane SLR Gen 5 2027 geometry chart

Source: Manufacturer geometry source

This profile is available for riders, but it is not currently indexed because its published geometry is not fully independently verified. Values marked derived are calculated by RideDNA; values marked published are transcribed from the manufacturer chart.

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
L 618 mm published380 mm published72.0 ° derived73.3 ° derived562 mm derived420 mm derived1019 mm published611 mm published78 mm derived63.0 mm published48 mm published yellow
3 of 5 checks flagged — Reach Reconciliation shows 3.2mm discrepancy
M 575 mm published374 mm published71.2 ° derived73.5 ° derived541 mm derived420 mm derived1011 mm published604 mm published80 mm derived63.0 mm published53 mm published red
4 of 5 checks flagged — Stack Reconciliation shows 8.3mm discrepancy
ML 596 mm published377 mm published71.9 ° derived73.3 ° derived553 mm derived420 mm derived1010 mm published602 mm published78 mm derived63.0 mm published48 mm published yellow
3 of 5 checks flagged — Reach Reconciliation shows 2.8mm discrepancy
S 555 mm published371 mm published71.1 ° derived73.7 ° derived530 mm derived420 mm derived1002 mm published595 mm published80 mm derived63.0 mm published53 mm published red
4 of 5 checks flagged — Stack Reconciliation shows 9mm discrepancy
XL 648 mm published384 mm published72.1 ° derived73.3 ° derived575 mm derived420 mm derived1033 mm published624 mm published75 mm derived62.0 mm published48 mm published yellow
3 of 5 checks flagged — Reach Reconciliation shows 3.1mm discrepancy
XS 524 mm published368 mm published71.3 ° derived73.5 ° derived520 mm derived420 mm derived987 mm published580 mm published80 mm derived62.0 mm published53 mm published red
4 of 5 checks flagged — Stack Reconciliation shows 9.5mm discrepancy

Audit context

Overall consistency: red. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Trek Domane SLR Gen 5 geometry exhibits a systematic stack mispublishing pattern on sizes XS, S, and M, where published stack values are deflated by 8.3–9.5mm relative to what the other published geometry parameters imply. Sizes ML, L, and XL reconcile within ±1mm engineering tolerance across all checks. Reach shows 2.8–6.0mm data inaccuracies on sizes XS–M and 2.8–3.2mm data inaccuracies on sizes ML–XL, while wheelbase and front center show 2.8–3.8mm data inaccuracies across all sizes. The RideDNA Geometry Engine reconciliation checks confirm that the published stack values on the smaller three sizes are internally inconsistent with the published head tube length and fork A2C specification.
