Trek Madone SLR 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

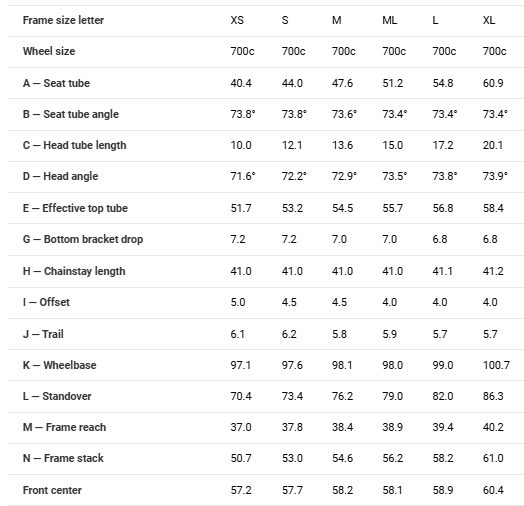

Trek Madone SLR 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
L 582 mm published394 mm published73.8 ° derived73.4 ° derived568 mm derived411 mm derived990 mm published589 mm published68 mm derived57.0 mm published40 mm published green
All 5 consistency checks passed
M 546 mm published384 mm published72.9 ° derived73.6 ° derived545 mm derived410 mm derived981 mm published582 mm published70 mm derived58.0 mm published45 mm published green
All 5 consistency checks passed
ML 562 mm published389 mm published73.5 ° derived73.4 ° derived557 mm derived410 mm derived980 mm published581 mm published70 mm derived59.0 mm published40 mm published green
All 5 consistency checks passed
S 530 mm published378 mm published72.2 ° derived73.8 ° derived532 mm derived410 mm derived976 mm published577 mm published72 mm derived62.0 mm published45 mm published green
All 5 consistency checks passed
XL 610 mm published402 mm published73.9 ° derived73.4 ° derived584 mm derived412 mm derived1007 mm published604 mm published68 mm derived57.0 mm published40 mm published green
All 5 consistency checks passed
XS 507 mm published370 mm published71.6 ° derived73.8 ° derived517 mm derived410 mm derived971 mm published572 mm published72 mm derived61.0 mm published50 mm published green
All 5 consistency checks passed

Audit context

Overall consistency: green. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Trek Madone SLR published geometry reconciles within ±1mm engineering tolerance across all six sizes for stack, reach, wheelbase, front center, and trail. The manufacturer's specification demonstrates internal geometric consistency across the size run. One data quality flag warrants attention: size XS shows STA > HTA (73.8° vs 71.6°), opposite to the model-line dominant pattern (HTA > STA across the other five sizes) — this minority inversion may indicate an HTA↔STA data entry swap and a vision re-audit of that size is strongly recommended.
