Wheelbase — every audited bike, ranked

Wheelbase is the distance between the front and rear axle centres. It rolls up reach, chainstay length, head-tube angle and fork offset into a single stability proxy.

Highest Wheelbase in the catalog

Lowest Wheelbase in the catalog

How to read this metric

Across 56 audited models the Wheelbase ranges from 974 mm to 1144 mm, with a mean of 1030 mm and a median of 1027 mm. The mean and median agree closely, which tells you the catalog is not skewed toward an extreme of the distribution — most modern bikes target the middle, and the leaderboard above lets you see who deliberately steps outside it.

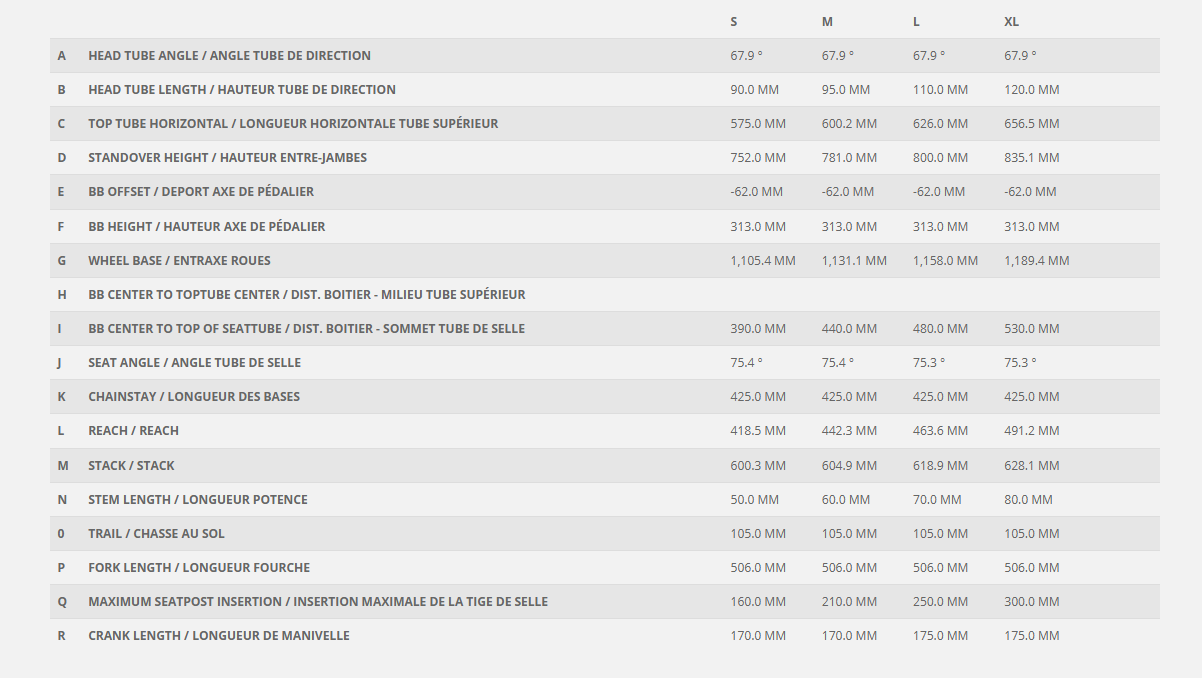

The current high-watermark is the Scott Scale Gravel RC 2026; the current floor is the Winspace T1600 2026. A long wheelbase improves straight-line stability and high-speed composure, especially over rough surfaces. A short wheelbase tightens the turning radius and makes the bike feel quick, particularly through technical sections.

Distribution by bike type

This per-discipline breakdown is the more honest comparison: comparing an XC hardtail's Wheelbase to a road frame's is a category error. Use the type rows to find the right peer group, then drill into individual bikes from the leaderboards above. Each bike row links straight to its full geometry page on RideDNA, where you can run a side-by-side against any other audited frame.

If you want to filter on multiple metrics at once, the filter tool lets you set ranges on stack, reach, HTA, trail, wheelbase and chainstay simultaneously and returns every bike that satisfies all the constraints. The discipline pages apply pre-baked filters by riding style, which is the fastest way in if you already know what you ride.

Caveat. Published geometry charts are not all drawn the same way. Some manufacturers publish stack at the top of the head tube exclusive of any integrated headset cap; others publish it at the top of the cap. RideDNA reconciles these to a common reference where possible (see the methodology page for the corrections we apply), but for any single bike you should still treat the chart as ±2 mm uncertainty before you stack-spacer-shop. The relative ordering on this page is more reliable than the absolute values.
