Giant Propel Advanced 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

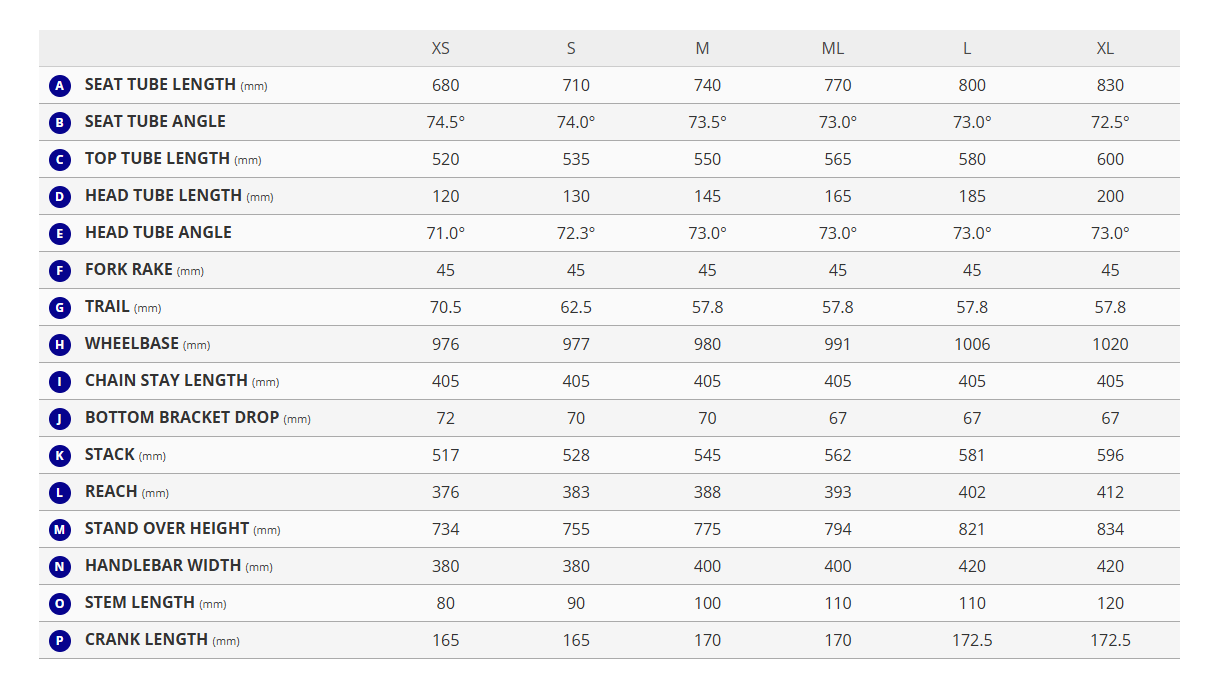

Giant Propel Advanced 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
L 581 mm published402 mm published73.0 ° derived73.0 ° derived580 mm derived405 mm derived1006 mm published610 mm derived67 mm derived57.8 mm published45 mm published green
All 4 consistency checks passed
M 545 mm published388 mm published73.0 ° derived73.5 ° derived550 mm derived405 mm derived980 mm published585 mm derived70 mm derived57.8 mm published45 mm published green
All 4 consistency checks passed
ML 562 mm published393 mm published73.0 ° derived73.0 ° derived565 mm derived405 mm derived991 mm published595 mm derived67 mm derived57.8 mm published45 mm published green
All 4 consistency checks passed
S 528 mm published383 mm published72.3 ° derived74.0 ° derived535 mm derived405 mm derived977 mm published581 mm derived70 mm derived62.5 mm published45 mm published green
All 4 consistency checks passed
XL 596 mm published412 mm published73.0 ° derived72.5 ° derived600 mm derived405 mm derived1020 mm published625 mm derived67 mm derived57.8 mm published45 mm published green
All 4 consistency checks passed
XS 517 mm published376 mm published71.0 ° derived74.5 ° derived520 mm derived405 mm derived976 mm published582 mm derived72 mm derived70.5 mm published45 mm published green
All 4 consistency checks passed

Audit context

Overall consistency: green. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Giant Propel Advanced geometry reconciles within ±1mm engineering tolerance across all six sizes for stack, reach, and wheelbase. Trail shows systematic 1.2–1.5mm discrepancies across all sizes, within ±1mm engineering tolerance. The RideDNA Geometry Engine reconciliation checks reveal a Stack mispublishing pattern on size S, where published stack appears deflated by approximately 1.1mm relative to what the other published geometry parameters imply. One size (XS) shows an STA > HTA inversion opposite to the model-line dominant pattern — this minority inversion may indicate an HTA↔STA data entry swap and warrants vision re-audit of that size.
