Giant TCX Advanced 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

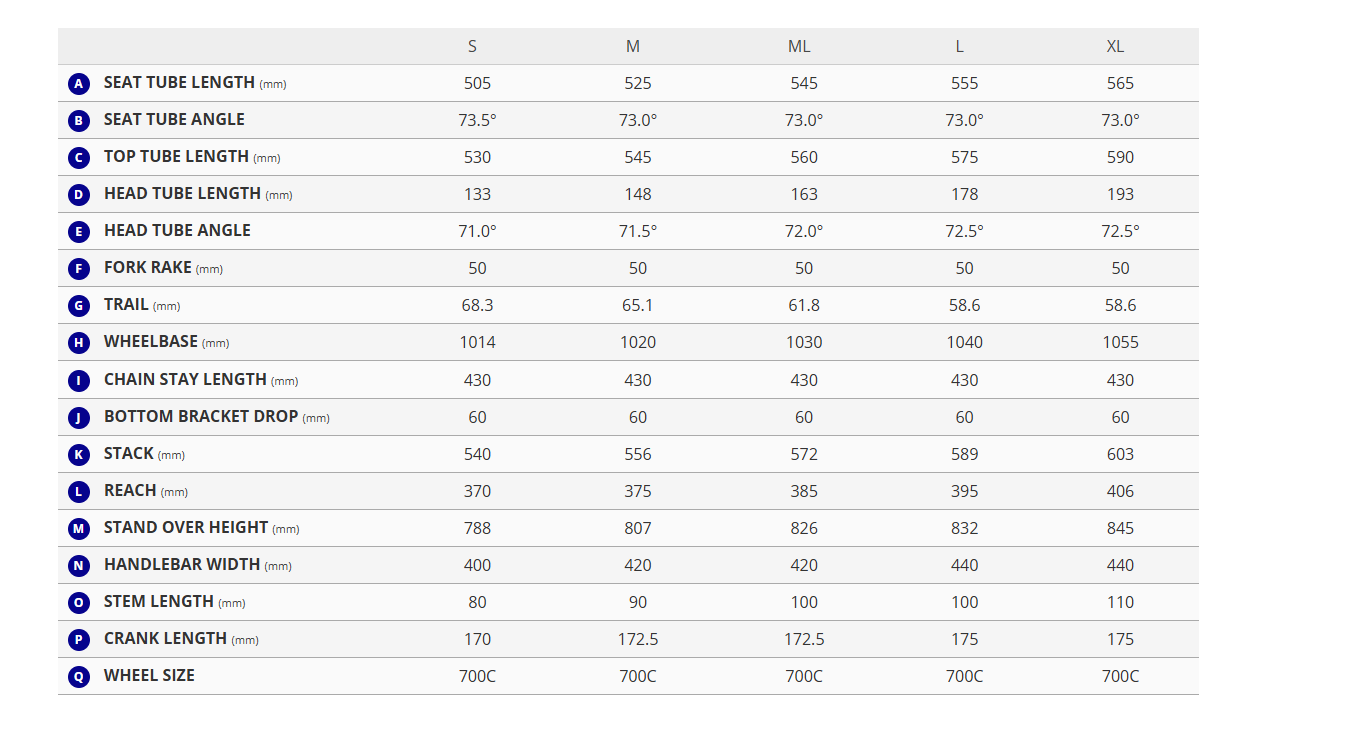

Giant TCX Advanced 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
L 589 mm published395 mm published72.5 ° derived73.0 ° derived575 mm derived430 mm derived1040 mm published617 mm derived60 mm derived58.6 mm published50 mm published yellow
1 of 4 checks flagged — Trail Reconciliation shows 2.6mm discrepancy
M 556 mm published375 mm published71.5 ° derived73.0 ° derived545 mm derived430 mm derived1020 mm published597 mm derived60 mm derived65.1 mm published50 mm published yellow
1 of 4 checks flagged — Trail Reconciliation shows 2.7mm discrepancy
ML 572 mm published385 mm published72.0 ° derived73.0 ° derived560 mm derived430 mm derived1030 mm published607 mm derived60 mm derived61.8 mm published50 mm published yellow
1 of 4 checks flagged — Trail Reconciliation shows 2.6mm discrepancy
S 540 mm published370 mm published71.0 ° derived73.5 ° derived530 mm derived430 mm derived1014 mm published591 mm derived60 mm derived68.3 mm published50 mm published yellow
1 of 4 checks flagged — Trail Reconciliation shows 2.7mm discrepancy
XL 603 mm published406 mm published72.5 ° derived73.0 ° derived590 mm derived430 mm derived1055 mm published632 mm derived60 mm derived58.6 mm published50 mm published yellow
1 of 4 checks flagged — Trail Reconciliation shows 2.6mm discrepancy

Audit context

Overall consistency: yellow. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Giant TCX Advanced geometry specification reconciles well with the RideDNA engine's forward-model calculations across all five sizes. Stack, reach, and wheelbase all reconcile within ±1mm engineering tolerance across the entire size run. Trail shows a systematic 2.6–2.7mm data inaccuracy in the published values across all sizes. The RideDNA Geometry Engine reconciliation checks confirm strong internal consistency among the published dimensions, with all back-calculated values falling within ±1mm of their published counterparts.
