Giant Revolt Advanced 2026 complete geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

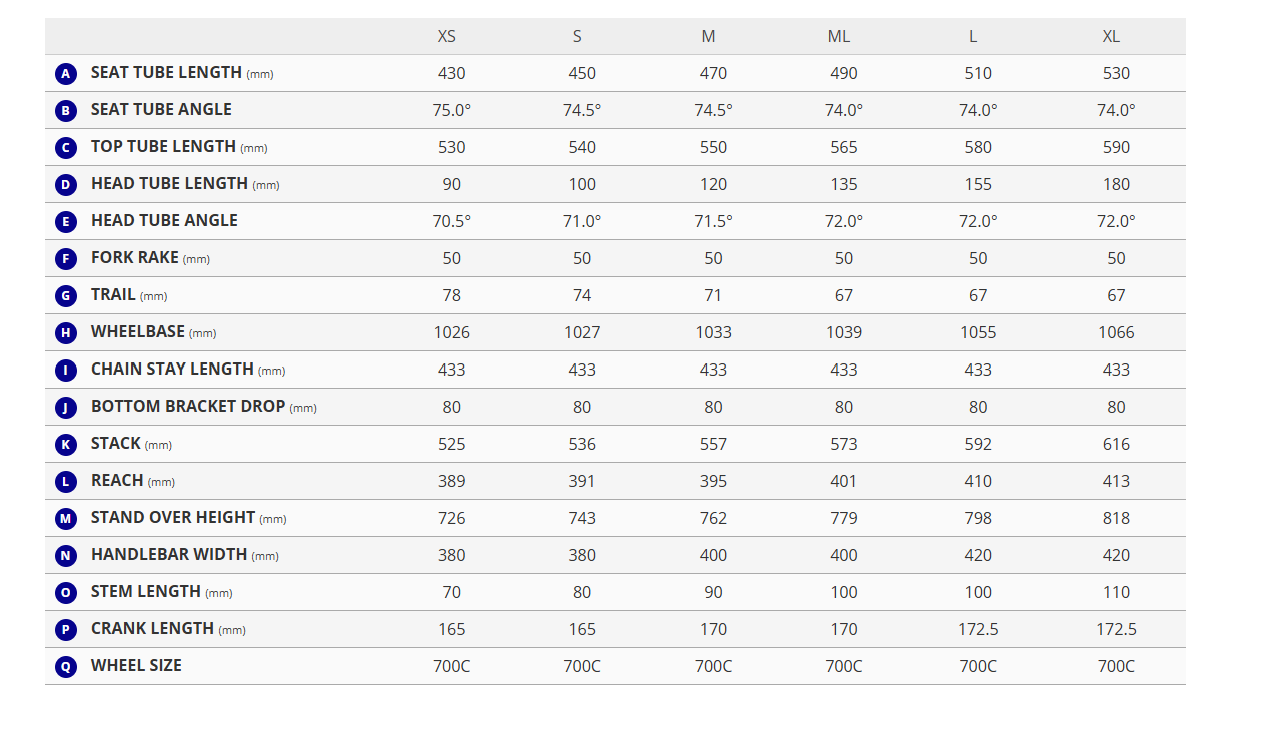

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

Size	Stack	Reach	HTA	STA	ETT	Chainstay	Wheelbase	Front center	BB drop	Trail	Fork offset	Audit context
L	592 mm published	410 mm published	72.0 ° derived	74.0 ° derived	580 mm derived	433 mm derived	1055 mm published	634 mm derived	80 mm derived	67.0 mm published	50 mm published	yellow
1 of 4 checks flagged — Trail Reconciliation shows 2.3mm discrepancy
M	557 mm published	395 mm published	71.5 ° derived	74.5 ° derived	550 mm derived	433 mm derived	1033 mm published	613 mm derived	80 mm derived	71.0 mm published	50 mm published	yellow
1 of 4 checks flagged — Trail Reconciliation shows 2.9mm discrepancy
ML	573 mm published	401 mm published	72.0 ° derived	74.0 ° derived	565 mm derived	433 mm derived	1039 mm published	619 mm derived	80 mm derived	67.0 mm published	50 mm published	yellow
1 of 4 checks flagged — Trail Reconciliation shows 2.3mm discrepancy
S	536 mm published	391 mm published	71.0 ° derived	74.5 ° derived	540 mm derived	433 mm derived	1027 mm published	607 mm derived	80 mm derived	74.0 mm published	50 mm published	yellow
1 of 4 checks flagged — Trail Reconciliation shows 2.6mm discrepancy
XL	616 mm published	413 mm published	72.0 ° derived	74.0 ° derived	590 mm derived	433 mm derived	1066 mm published	645 mm derived	80 mm derived	67.0 mm published	50 mm published	yellow
1 of 4 checks flagged — Trail Reconciliation shows 2.3mm discrepancy
XS	525 mm published	389 mm published	70.5 ° derived	75.0 ° derived	530 mm derived	433 mm derived	1026 mm published	605 mm derived	80 mm derived	78.0 mm published	50 mm published	yellow
1 of 4 checks flagged — Trail Reconciliation shows 3.2mm discrepancy

Audit context

Overall consistency: yellow. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Giant Revolt Advanced geometry specification demonstrates strong internal consistency across all primary kinematic dimensions. Stack, reach, and wheelbase reconcile within ±1mm engineering tolerance across all six sizes. Trail shows systematic 2.3–3.2mm data inaccuracies in the published values across all sizes, indicating the manufacturer's published trail does not align with the forward-calculated trail using their stated reference tire and published fork geometry.
