Merida Scultura 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

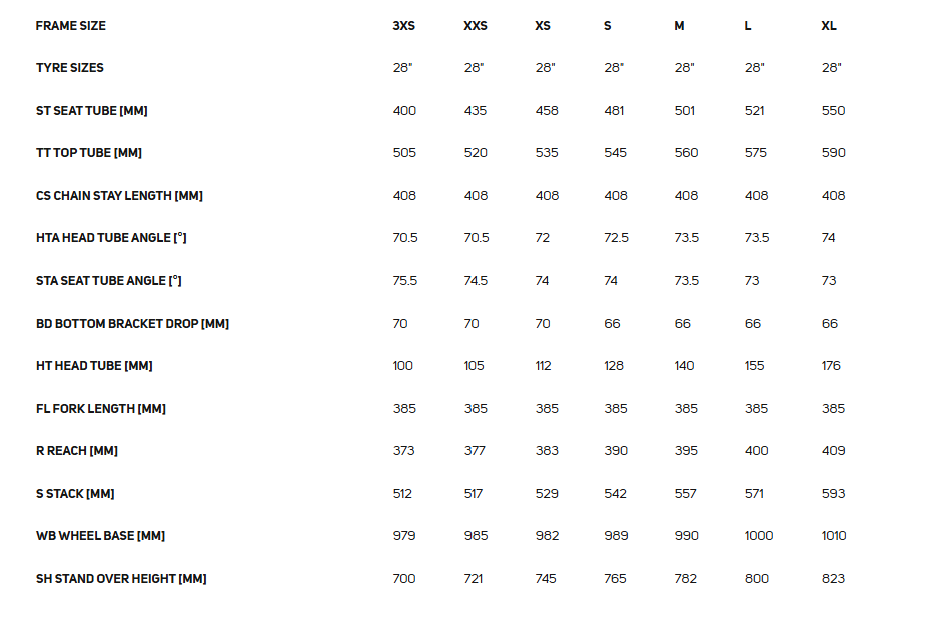

Merida Scultura 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
3XS 512 mm published373 mm published70.5 ° derived75.5 ° derived505 mm derived408 mm derived979 mm published581 mm derived70 mm derived72.8 mm derived45 mm derived green
All 3 consistency checks passed
L 571 mm published400 mm published73.5 ° derived73.0 ° derived575 mm derived408 mm derived1000 mm published600 mm derived66 mm derived54.0 mm derived45 mm derived green
All 3 consistency checks passed
M 557 mm published395 mm published73.5 ° derived73.5 ° derived560 mm derived408 mm derived990 mm published591 mm derived66 mm derived54.0 mm derived45 mm derived green
All 3 consistency checks passed
S 542 mm published390 mm published72.5 ° derived74.0 ° derived545 mm derived408 mm derived989 mm published590 mm derived66 mm derived60.2 mm derived45 mm derived green
All 3 consistency checks passed
XL 593 mm published409 mm published74.0 ° derived73.0 ° derived590 mm derived408 mm derived1010 mm published610 mm derived66 mm derived50.9 mm derived45 mm derived green
All 3 consistency checks passed
XS 529 mm published383 mm published72.0 ° derived74.0 ° derived535 mm derived408 mm derived982 mm published584 mm derived70 mm derived63.4 mm derived45 mm derived green
All 3 consistency checks passed
XXS 517 mm published377 mm published70.5 ° derived74.5 ° derived520 mm derived408 mm derived985 mm published586 mm derived70 mm derived72.8 mm derived45 mm derived green
All 3 consistency checks passed

Audit context

Overall consistency: green. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Merida Scultura's published geometry reconciles within ±1mm engineering tolerance across all seven sizes for stack, reach, and wheelbase. The RideDNA Geometry Engine reconciliation section flags an unusually large seat tube angle step of 1.0° between sizes 3XS (75.5°) and XXS (74.5°) — while STA normally decreases as frame size increases, a jump of this magnitude may indicate a transcription anomaly; verification of the affected sizes is recommended, though the root cause cannot be determined from the published geometry data alone.
