Merida Scultura Endurance GR 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

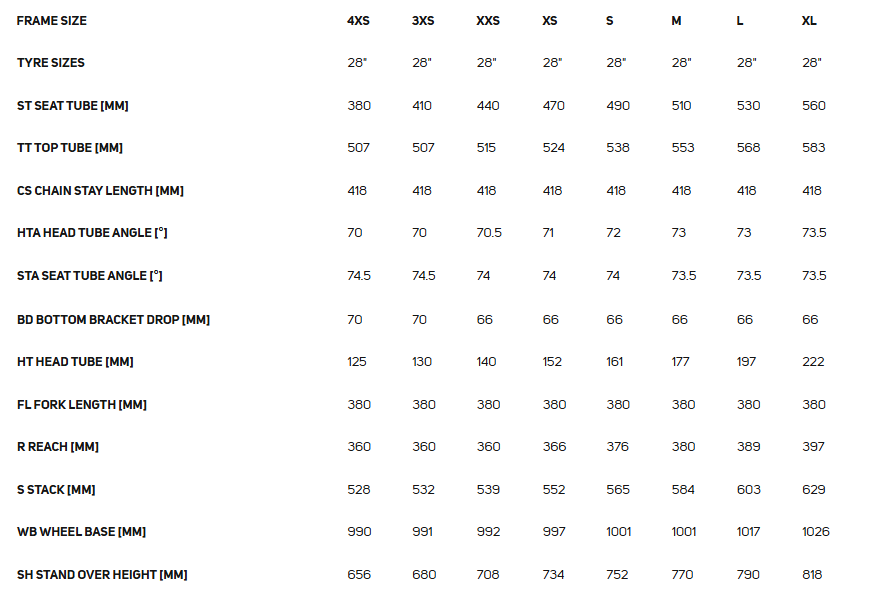

Merida Scultura Endurance GR 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
3XS 532 mm published360 mm published70.0 ° derived74.5 ° derived507 mm derived418 mm derived991 mm published585 mm derived70 mm derived72.4 mm derived50 mm derived yellow
1 of 3 checks flagged — Wheelbase Reconciliation shows 2.2mm discrepancy
4XS 528 mm published360 mm published70.0 ° derived74.5 ° derived507 mm derived418 mm derived990 mm published585 mm derived70 mm derived72.4 mm derived50 mm derived yellow
1 of 3 checks flagged — Wheelbase Reconciliation shows 2.8mm discrepancy
L 603 mm published389 mm published73.0 ° derived73.5 ° derived568 mm derived418 mm derived1017 mm published610 mm derived66 mm derived53.2 mm derived50 mm derived green
All 3 consistency checks passed
M 584 mm published380 mm published73.0 ° derived73.5 ° derived553 mm derived418 mm derived1001 mm published595 mm derived66 mm derived53.2 mm derived50 mm derived yellow
1 of 3 checks flagged — Wheelbase Reconciliation shows 2.7mm discrepancy
S 565 mm published376 mm published72.0 ° derived74.0 ° derived538 mm derived418 mm derived1001 mm published595 mm derived66 mm derived59.5 mm derived50 mm derived yellow
1 of 3 checks flagged — Wheelbase Reconciliation shows 2.8mm discrepancy
XL 629 mm published397 mm published73.5 ° derived73.5 ° derived583 mm derived418 mm derived1026 mm published619 mm derived66 mm derived50.0 mm derived50 mm derived yellow
1 of 3 checks flagged — Wheelbase Reconciliation shows 2.7mm discrepancy
XS 552 mm published366 mm published71.0 ° derived74.0 ° derived524 mm derived418 mm derived997 mm published590 mm derived66 mm derived65.9 mm derived50 mm derived yellow
1 of 3 checks flagged — Wheelbase Reconciliation shows 2.1mm discrepancy
XXS 539 mm published360 mm published70.5 ° derived74.0 ° derived515 mm derived418 mm derived992 mm published585 mm derived66 mm derived69.2 mm derived50 mm derived yellow
1 of 3 checks flagged — Wheelbase Reconciliation shows 2.1mm discrepancy

Audit context

Overall consistency: yellow. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Merida Scultura Endurance GR geometry specification shows systematic wheelbase discrepancies across seven of eight sizes (4XS, 3XS, XXS, XS, S, M, XL), ranging from 2.1mm to 2.8mm. Stack and reach reconcile within ±1mm engineering tolerance across all sizes. The wheelbase discrepancies reflect a data inaccuracy in one or more of the published input values; the root cause cannot be determined from the published geometry data alone.
