Merida Mission 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

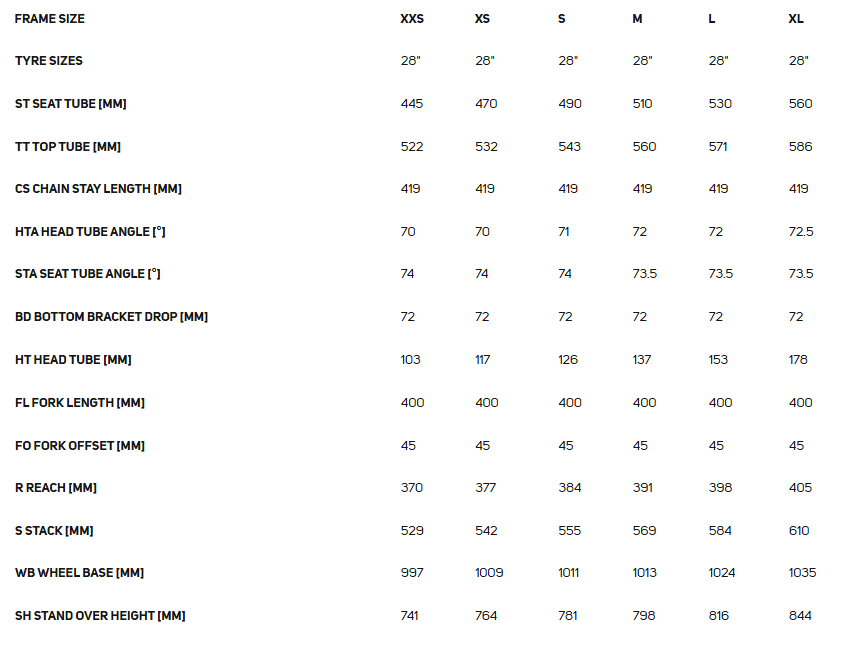

Merida Mission 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
L 584 mm published398 mm published72.0 ° derived73.5 ° derived571 mm derived419 mm derived1024 mm published616 mm derived72 mm derived66.7 mm derived45 mm published green
All 3 consistency checks passed
M 569 mm published391 mm published72.0 ° derived73.5 ° derived560 mm derived419 mm derived1013 mm published605 mm derived72 mm derived66.7 mm derived45 mm published green
All 3 consistency checks passed
S 555 mm published384 mm published71.0 ° derived74.0 ° derived543 mm derived419 mm derived1011 mm published602 mm derived72 mm derived73.3 mm derived45 mm published green
All 3 consistency checks passed
XL 610 mm published405 mm published72.5 ° derived73.5 ° derived586 mm derived419 mm derived1035 mm published626 mm derived72 mm derived63.5 mm derived45 mm published green
All 3 consistency checks passed
XS 542 mm published377 mm published70.0 ° derived74.0 ° derived532 mm derived419 mm derived1009 mm published600 mm derived72 mm derived79.9 mm derived45 mm published green
All 3 consistency checks passed
XXS 529 mm published370 mm published70.0 ° derived74.0 ° derived522 mm derived419 mm derived997 mm published589 mm derived72 mm derived79.9 mm derived45 mm published green
All 3 consistency checks passed

Audit context

Overall consistency: green. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Merida Mission gravel bike geometry specification reconciles within ±1mm engineering tolerance across all six sizes (XXS–XL) for stack, reach, and wheelbase. The forward-model calculations, anchored to the published effective top tube values, confirm internal consistency of the manufacturer's published specification. The fork axle-to-crown length is sourced directly from the manufacturer's published specification, enabling independent geometric verification of all primary dimensions.
