A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.
Source: Manufacturer geometry source
Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

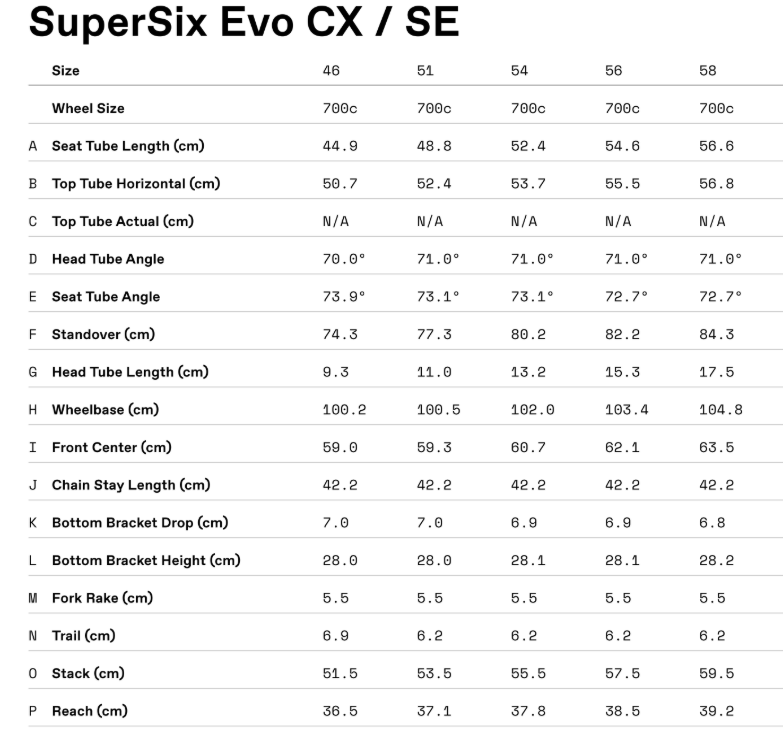

| Size | Stack | Reach | HTA | STA | ETT | Chainstay | Wheelbase | Front center | BB drop | Trail | Fork offset | Audit context |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 515 mm published | 365 mm published | 70.0 ° derived | 73.9 ° derived | 507 mm derived | 422 mm derived | 1002 mm published | 590 mm published | 70 mm derived | 69.0 mm published | 55 mm published | red |
| All 5 consistency checks passed | ||||||||||||
| 51 | 535 mm published | 371 mm published | 71.0 ° derived | 73.1 ° derived | 524 mm derived | 422 mm derived | 1005 mm published | 593 mm published | 70 mm derived | 62.0 mm published | 55 mm published | red |
| All 5 consistency checks passed | ||||||||||||
| 54 | 555 mm published | 378 mm published | 71.0 ° derived | 73.1 ° derived | 537 mm derived | 422 mm derived | 1020 mm published | 607 mm published | 69 mm derived | 62.0 mm published | 55 mm published | red |
| All 5 consistency checks passed | ||||||||||||
| 56 | 575 mm published | 385 mm published | 71.0 ° derived | 72.7 ° derived | 555 mm derived | 422 mm derived | 1034 mm published | 621 mm published | 69 mm derived | 62.0 mm published | 55 mm published | red |
| All 5 consistency checks passed | ||||||||||||
| 58 | 595 mm published | 392 mm published | 71.0 ° derived | 72.7 ° derived | 568 mm derived | 422 mm derived | 1048 mm published | 635 mm published | 68 mm derived | 62.0 mm published | 55 mm published | red |
| All 5 consistency checks passed | ||||||||||||
Overall consistency: red. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.
The RideDNA engine detected a geometric inconsistency between the manufacturer's published Effective Top Tube (ETT) values and the dimensional relationships implied by their published Reach, Wheelbase, and Front Center specifications across all five sizes. Because ETT is the sole dimension anchoring BB horizontal position in the forward model, an incorrect ETT produces simultaneous lockstep discrepancies in all three ETT-derived audit checks—Reach, Wheelbase, and Front Center—rather than three independent failures. Stack and Trail remained unaffected, consistent with the ETT-anchor hypothesis. Corrected ETT values were applied; the Published Geometry table retains the original published values and the Calculated Geometry table shows the corrected values in blue. The corrected ETT values range from 6.6mm to 9.6mm higher than the manufacturer's published specification, representing a significant data inaccuracy in the published ETT dimension.
