Canyon Aeroad CFR 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

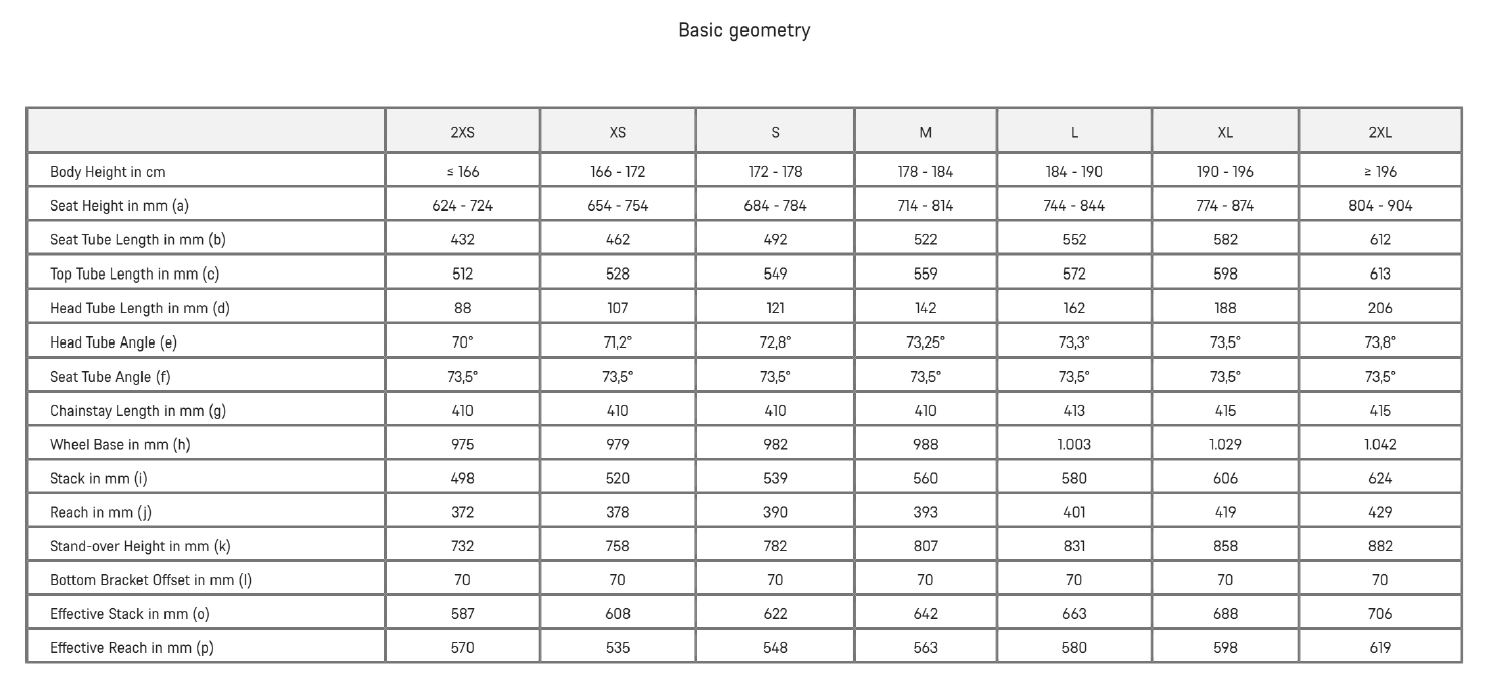

Canyon Aeroad CFR 2026 geometry chart

Source: Manufacturer geometry source

This profile is available for riders, but it is not currently indexed because its published geometry is not fully independently verified. Values marked derived are calculated by RideDNA; values marked published are transcribed from the manufacturer chart.

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
2XL 624 mm published429 mm published73.8 ° derived73.5 ° derived613 mm derived415 mm derived1042 mm published636 mm derived70 mm derived55.9 mm derived41 mm derived green
All 3 consistency checks passed
2XS 498 mm published372 mm published70.0 ° derived73.5 ° derived512 mm derived410 mm derived975 mm published568 mm derived70 mm derived79.9 mm derived41 mm derived red
2 of 3 checks flagged — Reach Reconciliation shows 7.6mm discrepancy
L 580 mm published401 mm published73.3 ° derived73.5 ° derived572 mm derived413 mm derived1003 mm published600 mm derived70 mm derived59.0 mm derived41 mm derived green
All 3 consistency checks passed
M 560 mm published393 mm published73.3 ° derived73.5 ° derived559 mm derived410 mm derived988 mm published588 mm derived70 mm derived59.3 mm derived41 mm derived green
All 3 consistency checks passed
S 539 mm published390 mm published72.8 ° derived73.5 ° derived549 mm derived410 mm derived982 mm published582 mm derived70 mm derived62.1 mm derived41 mm derived green
All 3 consistency checks passed
XL 606 mm published419 mm published73.5 ° derived73.5 ° derived598 mm derived415 mm derived1029 mm published624 mm derived70 mm derived57.8 mm derived41 mm derived green
All 3 consistency checks passed
XS 520 mm published378 mm published71.2 ° derived73.5 ° derived528 mm derived410 mm derived979 mm published575 mm derived70 mm derived72.2 mm derived41 mm derived yellow
2 of 3 checks flagged — Reach Reconciliation shows 4.1mm discrepancy

Audit context

Overall consistency: red. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Canyon Aeroad CFR geometry reconciles well across the majority of the size run, with sizes S through 2XL showing consistency within ±1mm engineering tolerance for stack, reach, and wheelbase. Size 2XS exhibits a 7.6mm data inaccuracy in the published reach value and a 7.2mm data inaccuracy in the published wheelbase value. Size XS shows a 4.1mm data inaccuracy in the published reach value and a 4.6mm data inaccuracy in the published wheelbase value. The systematic pattern on the two smallest sizes indicates internal inconsistency in the published geometry for those frames.
