Canyon Grizl CF 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

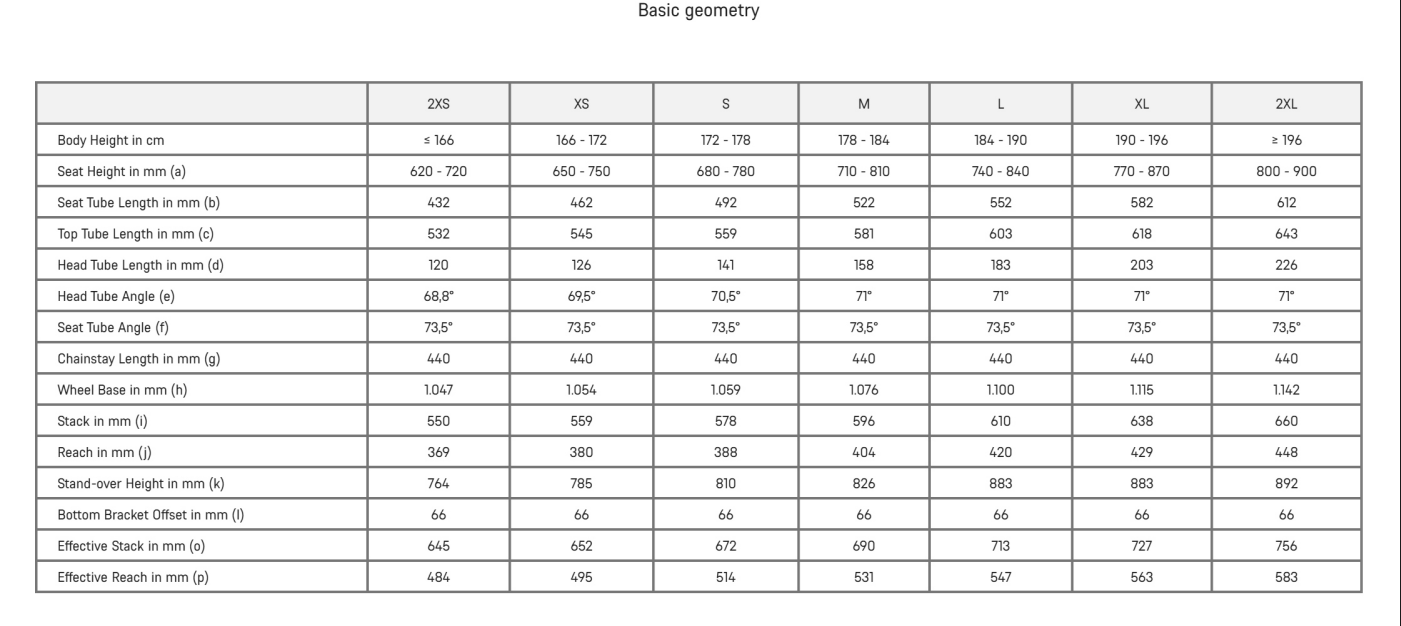

Canyon Grizl CF 2026 geometry chart

Source: Manufacturer geometry source

This profile is available for riders, but it is not currently indexed because its published geometry is not fully independently verified. Values marked derived are calculated by RideDNA; values marked published are transcribed from the manufacturer chart.

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
2XL 660 mm published448 mm published71.0 ° derived73.5 ° derived643 mm derived440 mm derived1142 mm published714 mm derived66 mm derived63.4 mm derived56 mm published yellow
1 of 3 checks flagged — Wheelbase Reconciliation shows 3.9mm discrepancy
2XS 550 mm published369 mm published68.8 ° derived73.5 ° derived532 mm derived440 mm derived1047 mm published620 mm derived66 mm derived78.0 mm derived56 mm published yellow
1 of 3 checks flagged — Wheelbase Reconciliation shows 4.2mm discrepancy
L 610 mm published420 mm published71.0 ° derived73.5 ° derived603 mm derived440 mm derived1100 mm published672 mm derived66 mm derived63.4 mm derived56 mm published red
2 of 3 checks flagged — Stack Reconciliation shows 9.1mm discrepancy
M 596 mm published404 mm published71.0 ° derived73.5 ° derived581 mm derived440 mm derived1076 mm published649 mm derived66 mm derived63.4 mm derived56 mm published yellow
1 of 3 checks flagged — Wheelbase Reconciliation shows 4.8mm discrepancy
S 578 mm published388 mm published70.5 ° derived73.5 ° derived559 mm derived440 mm derived1059 mm published631 mm derived66 mm derived66.7 mm derived56 mm published yellow
1 of 3 checks flagged — Wheelbase Reconciliation shows 4mm discrepancy
XL 638 mm published429 mm published71.0 ° derived73.5 ° derived618 mm derived440 mm derived1115 mm published688 mm derived66 mm derived63.4 mm derived56 mm published yellow
1 of 3 checks flagged — Wheelbase Reconciliation shows 4.8mm discrepancy
XS 559 mm published380 mm published69.5 ° derived73.5 ° derived545 mm derived440 mm derived1054 mm published626 mm derived66 mm derived73.3 mm derived56 mm published yellow
1 of 3 checks flagged — Wheelbase Reconciliation shows 3.9mm discrepancy

Audit context

Overall consistency: red. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

Geometry reconciliation applies a 9mm integrated headset top cap correction to both stack and reach before comparison against the engine's forward-model calculations. Stack and reach reconcile within ±1mm engineering tolerance across all sizes except size L, where the published stack value shows a 9.1mm significant data inaccuracy. Wheelbase shows systematic 3.9–4.8mm data inaccuracies across all seven sizes, indicating the published wheelbase values are not internally consistent with the published effective top tube and front center geometry.
