Canyon Ultimate 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

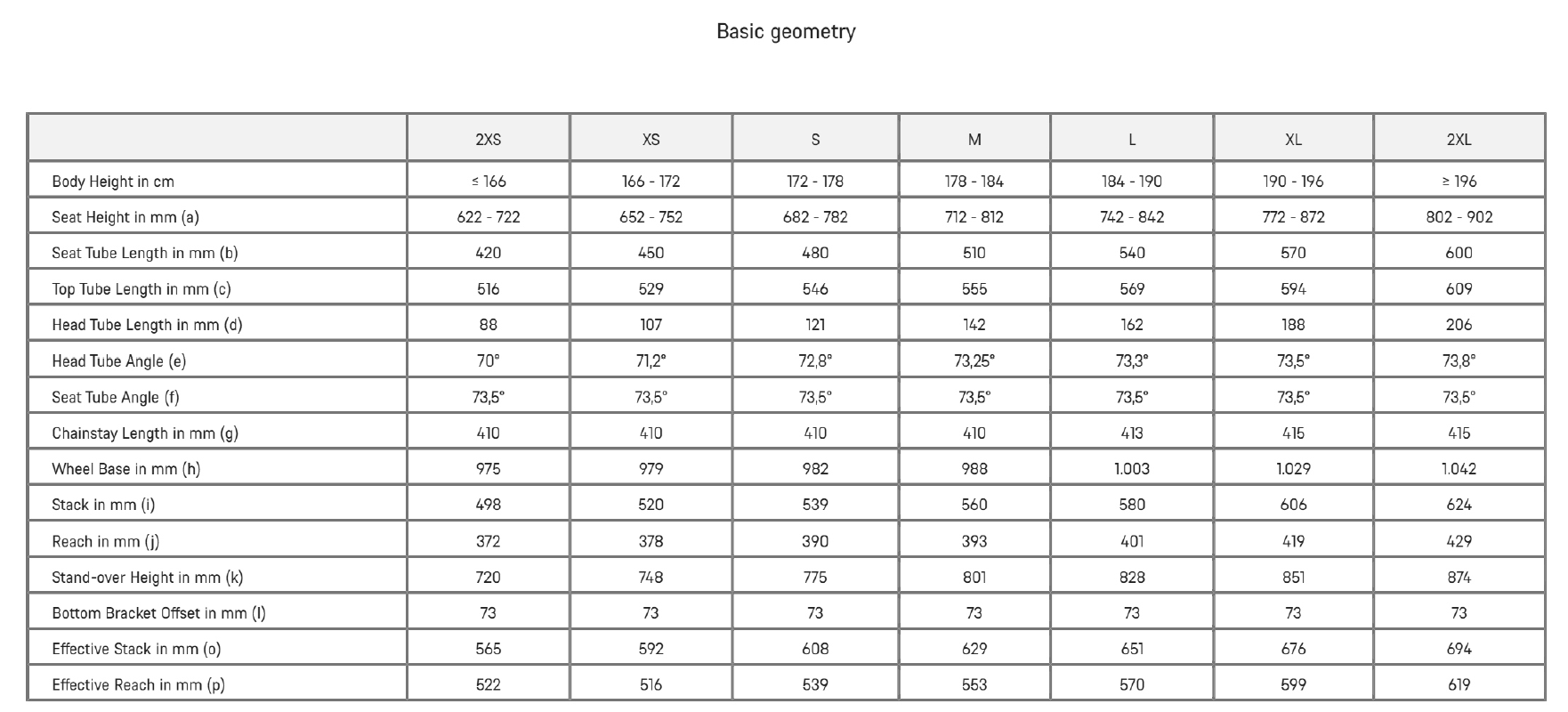

Canyon Ultimate 2026 geometry chart

Source: Manufacturer geometry source

This profile is available for riders, but it is not currently indexed because its published geometry is not fully independently verified. Values marked derived are calculated by RideDNA; values marked published are transcribed from the manufacturer chart.

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
2XL 624 mm published429 mm published73.8 ° derived73.5 ° derived609 mm derived415 mm derived1042 mm published633 mm derived73 mm derived54.4 mm derived42 mm derived red
2 of 3 checks flagged — Wheelbase Reconciliation shows 5.2mm discrepancy
2XS 498 mm published372 mm published70.0 ° derived73.5 ° derived516 mm derived410 mm derived975 mm published573 mm derived73 mm derived78.4 mm derived42 mm derived yellow
2 of 3 checks flagged — Reach Reconciliation shows 3.6mm discrepancy
L 580 mm published401 mm published73.3 ° derived73.5 ° derived569 mm derived413 mm derived1003 mm published598 mm derived73 mm derived57.5 mm derived42 mm derived yellow
2 of 3 checks flagged — Reach Reconciliation shows 3.8mm discrepancy
M 560 mm published393 mm published73.3 ° derived73.5 ° derived555 mm derived410 mm derived988 mm published584 mm derived73 mm derived57.9 mm derived42 mm derived yellow
2 of 3 checks flagged — Reach Reconciliation shows 4.1mm discrepancy
S 539 mm published390 mm published72.8 ° derived73.5 ° derived546 mm derived410 mm derived982 mm published580 mm derived73 mm derived60.7 mm derived42 mm derived yellow
2 of 3 checks flagged — Reach Reconciliation shows 3.7mm discrepancy
XL 606 mm published419 mm published73.5 ° derived73.5 ° derived594 mm derived415 mm derived1029 mm published621 mm derived73 mm derived56.3 mm derived42 mm derived yellow
2 of 3 checks flagged — Reach Reconciliation shows 4.4mm discrepancy
XS 520 mm published378 mm published71.2 ° derived73.5 ° derived529 mm derived410 mm derived979 mm published577 mm derived73 mm derived70.7 mm derived42 mm derived yellow
2 of 3 checks flagged — Reach Reconciliation shows 3.1mm discrepancy

Audit context

Overall consistency: red. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Canyon Ultimate geometry shows systematic discrepancies across all seven sizes. Stack reconciles within ±1mm engineering tolerance across the entire size run. Reach shows systematic 3.1–4.8mm data inaccuracies in the published values across all sizes. Wheelbase shows systematic 3.0–4.7mm data inaccuracies on sizes 2XS through XL, escalating to a 5.2mm significant data inaccuracy on size 2XL. The engine used Effective Top Tube as the geometry anchor to establish BB horizontal position — both reach and wheelbase are independently computed from this ETT-anchored position, so their simultaneous systematic discrepancies indicate the published reach and wheelbase values are not consistent with the published ETT specification.
