Canyon Endurace CFR 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

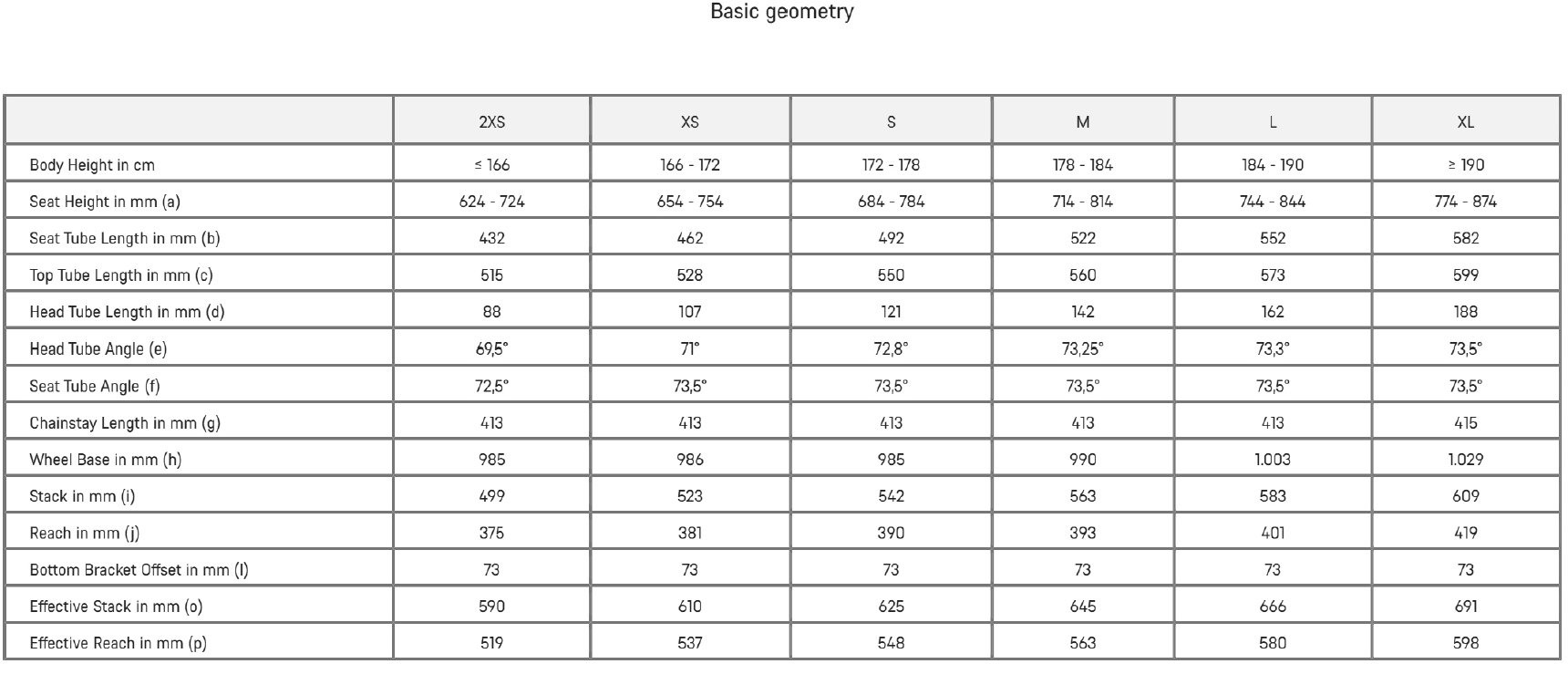

Canyon Endurace CFR 2026 geometry chart

Source: Manufacturer geometry source

This profile is available for riders, but it is not currently indexed because its published geometry is not fully independently verified. Values marked derived are calculated by RideDNA; values marked published are transcribed from the manufacturer chart.

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
2XS 499 mm published375 mm published69.5 ° derived72.5 ° derived515 mm derived413 mm derived985 mm published566 mm derived73 mm derived85.4 mm derived41 mm derived red
2 of 3 checks flagged — Reach Reconciliation shows 17.5mm discrepancy
L 583 mm published401 mm published73.3 ° derived73.5 ° derived573 mm derived413 mm derived1003 mm published601 mm derived73 mm derived60.8 mm derived41 mm derived green
All 3 consistency checks passed
M 563 mm published393 mm published73.3 ° derived73.5 ° derived560 mm derived413 mm derived990 mm published588 mm derived73 mm derived61.1 mm derived41 mm derived green
All 3 consistency checks passed
S 542 mm published390 mm published72.8 ° derived73.5 ° derived550 mm derived413 mm derived985 mm published582 mm derived73 mm derived64.0 mm derived41 mm derived green
All 3 consistency checks passed
XL 609 mm published419 mm published73.5 ° derived73.5 ° derived599 mm derived415 mm derived1029 mm published625 mm derived73 mm derived59.5 mm derived41 mm derived green
All 3 consistency checks passed
XS 523 mm published381 mm published71.0 ° derived73.5 ° derived528 mm derived413 mm derived986 mm published576 mm derived73 mm derived75.6 mm derived41 mm derived red
2 of 3 checks flagged — Reach Reconciliation shows 7.8mm discrepancy

Audit context

Overall consistency: red. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Canyon Endurace CFR geometry specification shows systematic discrepancies on the two smallest sizes (2XS and XS) for reach and wheelbase, while the four larger sizes (S, M, L, XL) reconcile within ±1mm engineering tolerance across all checks. Size 2XS exhibits a 17.5mm data inaccuracy in both the published reach and wheelbase values; size XS shows a 7.8mm data inaccuracy in reach and a 7.9mm data inaccuracy in wheelbase. The forward model used Effective Top Tube (ETT) as the geometry anchor to establish BB horizontal position — reach and wheelbase are both independently computed from this ETT-anchored position, so their simultaneous discrepancies on 2XS and XS indicate the published reach and wheelbase values on these sizes are not consistent with the published ETT specification.
