Colnago C68 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

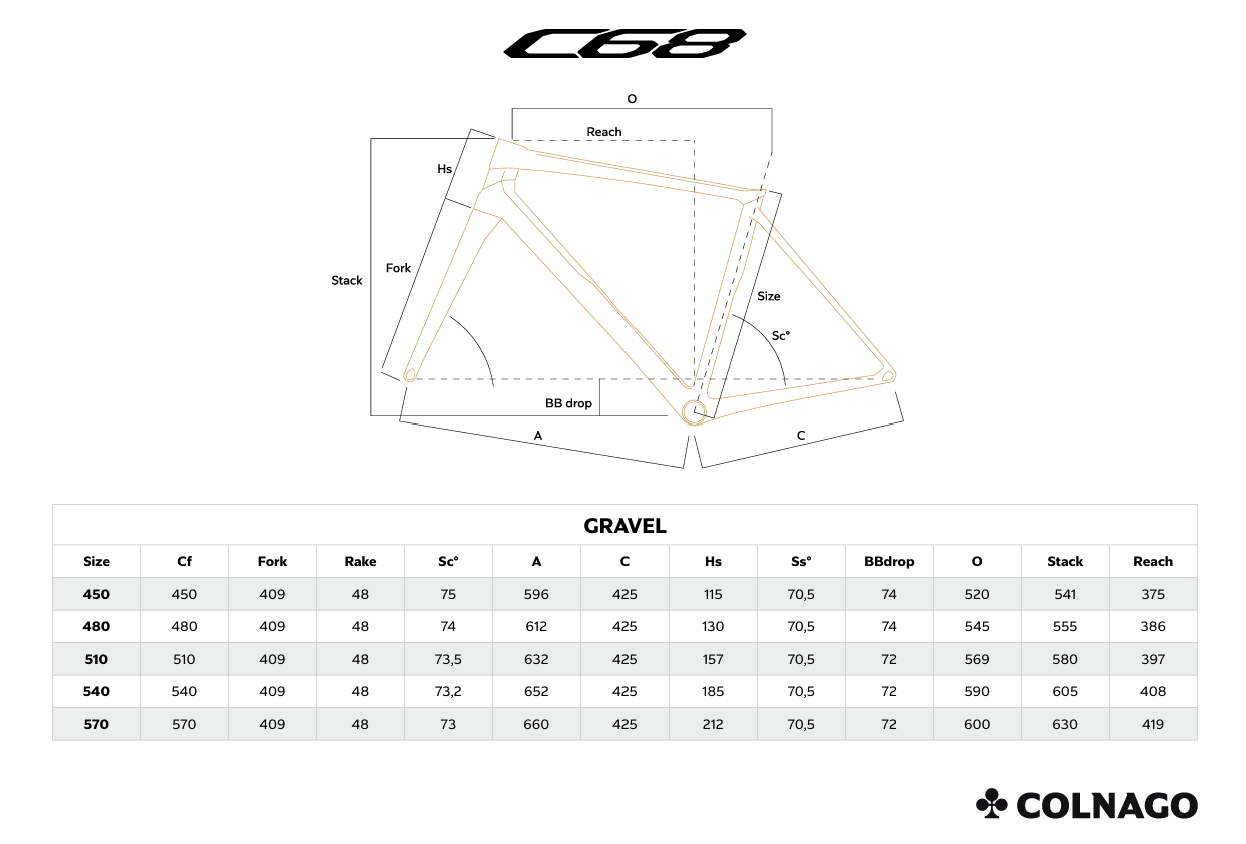

Colnago C68 2026 geometry chart

Source: Manufacturer geometry source

This profile is available for riders, but it is not currently indexed because its published geometry is not fully independently verified. Values marked derived are calculated by RideDNA; values marked published are transcribed from the manufacturer chart.

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
450 541 mm published375 mm published70.5 ° derived75.0 ° derived520 mm derived425 mm derived1011 mm derived596 mm published74 mm derived73.4 mm derived48 mm published red
2 of 3 checks flagged — Stack Reconciliation shows 10.9mm discrepancy
480 555 mm published386 mm published70.5 ° derived74.0 ° derived545 mm derived425 mm derived1026 mm derived612 mm published74 mm derived73.4 mm derived48 mm published red
2 of 3 checks flagged — Stack Reconciliation shows 11.1mm discrepancy
510 580 mm published397 mm published70.5 ° derived73.5 ° derived569 mm derived425 mm derived1047 mm derived632 mm published72 mm derived73.4 mm derived48 mm published red
2 of 3 checks flagged — Stack Reconciliation shows 9.5mm discrepancy
540 605 mm published408 mm published70.5 ° derived73.2 ° derived590 mm derived425 mm derived1066 mm derived652 mm published72 mm derived73.4 mm derived48 mm published red
2 of 3 checks flagged — Stack Reconciliation shows 10.9mm discrepancy
570 630 mm published419 mm published70.5 ° derived73.0 ° derived600 mm derived425 mm derived1075 mm derived660 mm published72 mm derived73.4 mm derived48 mm published red
2 of 3 checks flagged — Stack Reconciliation shows 11.4mm discrepancy

Audit context

Overall consistency: red. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Colnago C68 gravel geometry exhibits systematic discrepancies across all five sizes. Stack values are deflated by 9.5–11.4mm relative to the engine's forward-model calculations, representing significant data inaccuracies in the published specification. Reach shows data inaccuracies ranging from 2.6mm to 15.1mm across sizes 450–570mm, with the largest discrepancy on size 570. Front center reconciles within ±1mm engineering tolerance across all sizes. The manufacturer's published fork axle-to-crown length of 409mm is used directly by the engine — the stack discrepancies cannot be attributed to fork A2C and indicate a data inaccuracy in either the published stack values or the published head tube length values.
