A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

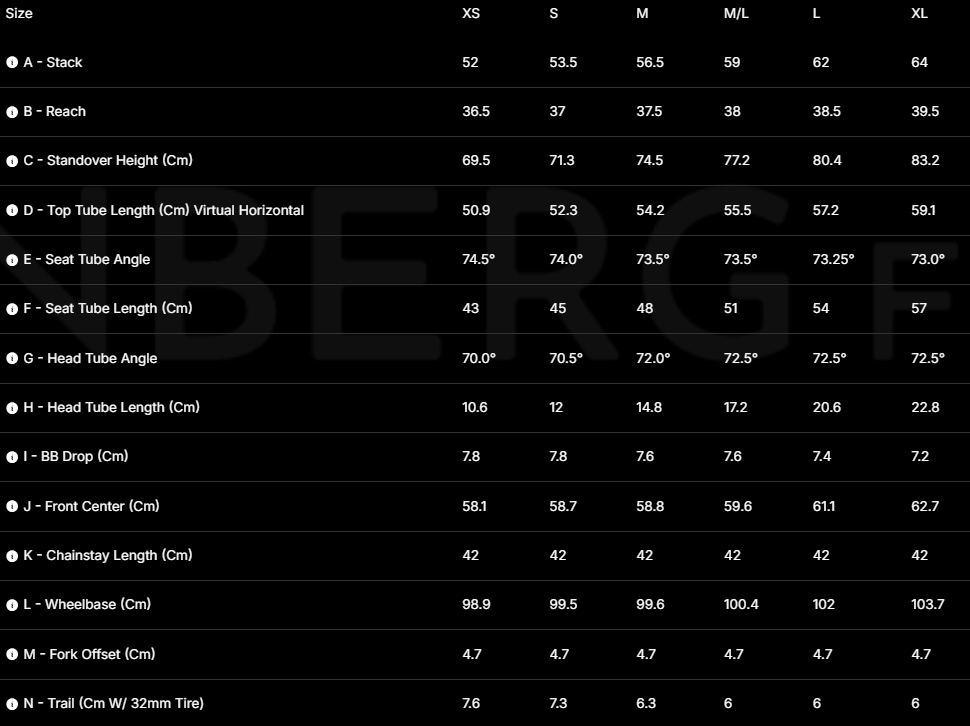

Source: Manufacturer geometry source
Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.
| Size | Stack | Reach | HTA | STA | ETT | Chainstay | Wheelbase | Front center | BB drop | Trail | Fork offset | Audit context |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 620 mm published | 385 mm published | 72.5 ° derived | 73.3 ° derived | 572 mm derived | 420 mm derived | 1020 mm published | 611 mm published | 74 mm derived | 60.0 mm published | 47 mm published | green |
| All 5 consistency checks passed | ||||||||||||
| M | 565 mm published | 375 mm published | 72.0 ° derived | 73.5 ° derived | 542 mm derived | 420 mm derived | 996 mm published | 588 mm published | 76 mm derived | 63.0 mm published | 47 mm published | green |
| All 5 consistency checks passed | ||||||||||||
| M/L | 590 mm published | 380 mm published | 72.5 ° derived | 73.5 ° derived | 555 mm derived | 420 mm derived | 1004 mm published | 596 mm published | 76 mm derived | 60.0 mm published | 47 mm published | green |
| All 5 consistency checks passed | ||||||||||||
| S | 535 mm published | 370 mm published | 70.5 ° derived | 74.0 ° derived | 523 mm derived | 420 mm derived | 995 mm published | 587 mm published | 78 mm derived | 73.0 mm published | 47 mm published | green |
| All 5 consistency checks passed | ||||||||||||
| XL | 640 mm published | 395 mm published | 72.5 ° derived | 73.0 ° derived | 591 mm derived | 420 mm derived | 1037 mm published | 627 mm published | 72 mm derived | 60.0 mm published | 47 mm published | green |
| All 5 consistency checks passed | ||||||||||||
| XS | 520 mm published | 365 mm published | 70.0 ° derived | 74.5 ° derived | 509 mm derived | 420 mm derived | 989 mm published | 581 mm published | 78 mm derived | 76.0 mm published | 47 mm published | green |
| All 5 consistency checks passed | ||||||||||||
Overall consistency: green. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.
The Litespeed Arenberg / FI geometry specification demonstrates strong internal consistency across all six sizes. Stack, reach, wheelbase, front center, and trail all reconcile within ±1mm engineering tolerance. The manufacturer's published geometry forms a coherent and self-consistent specification.
