A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.
Source: Manufacturer geometry source
Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

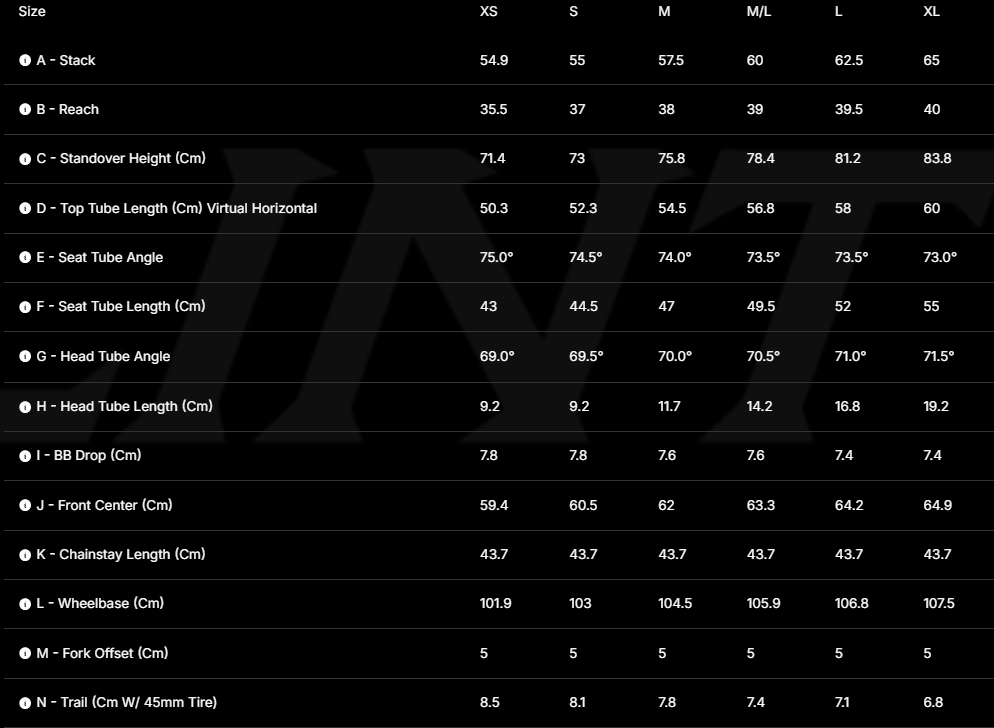

| Size | Stack | Reach | HTA | STA | ETT | Chainstay | Wheelbase | Front center | BB drop | Trail | Fork offset | Audit context |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 625 mm published | 395 mm published | 71.0 ° derived | 73.5 ° derived | 580 mm derived | 437 mm derived | 1068 mm published | 642 mm published | 74 mm derived | 71.0 mm published | 50 mm published | green |
| All 5 consistency checks passed | ||||||||||||
| M | 575 mm published | 380 mm published | 70.0 ° derived | 74.0 ° derived | 545 mm derived | 437 mm derived | 1045 mm published | 620 mm published | 76 mm derived | 78.0 mm published | 50 mm published | green |
| All 5 consistency checks passed | ||||||||||||
| M/L | 600 mm published | 390 mm published | 70.5 ° derived | 73.5 ° derived | 568 mm derived | 437 mm derived | 1059 mm published | 633 mm published | 76 mm derived | 74.0 mm published | 50 mm published | green |
| All 5 consistency checks passed | ||||||||||||
| S | 550 mm published | 370 mm published | 69.5 ° derived | 74.5 ° derived | 523 mm derived | 437 mm derived | 1030 mm published | 605 mm published | 78 mm derived | 81.0 mm published | 50 mm published | green |
| All 5 consistency checks passed | ||||||||||||
| XL | 650 mm published | 400 mm published | 71.5 ° derived | 73.0 ° derived | 600 mm derived | 437 mm derived | 1075 mm published | 649 mm published | 74 mm derived | 68.0 mm published | 50 mm published | yellow |
| 1 of 5 checks flagged — Wheelbase Reconciliation shows 2.4mm discrepancy | ||||||||||||
| XS | 549 mm published | 355 mm published | 69.0 ° derived | 75.0 ° derived | 503 mm derived | 437 mm derived | 1019 mm published | 594 mm published | 78 mm derived | 85.0 mm published | 50 mm published | green |
| All 5 consistency checks passed | ||||||||||||
Overall consistency: yellow. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.
The Litespeed Flint / FI geometry specification demonstrates excellent internal consistency across the size run. All stack, reach, and front center checks reconcile within ±1mm engineering tolerance across all six sizes. Wheelbase shows a 2.4mm data inaccuracy in the published value on size XL only; all other sizes reconcile within tolerance. Trail values reconcile within ±1mm engineering tolerance across all sizes.
