Litespeed Ultimate G2 / FI 2026 complete geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

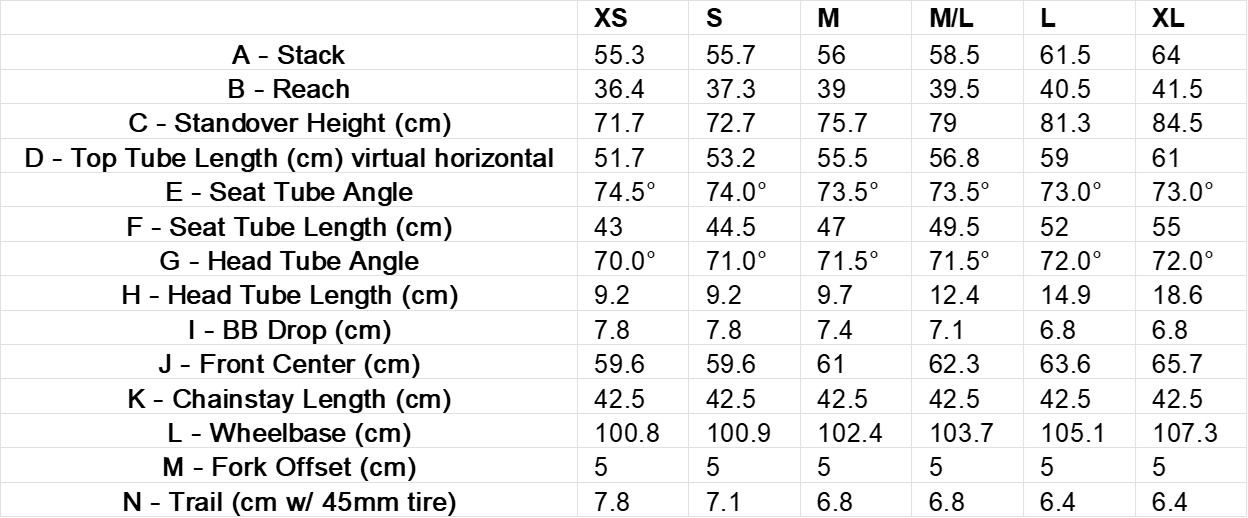

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

Size	Stack	Reach	HTA	STA	ETT	Chainstay	Wheelbase	Front center	BB drop	Trail	Fork offset	Audit context
L	615 mm published	405 mm published	72.0 ° derived	73.0 ° derived	590 mm derived	425 mm derived	1051 mm published	636 mm published	68 mm derived	64.0 mm published	50 mm published	red
2 of 5 checks flagged — Stack Reconciliation shows 9.9mm discrepancy
M	560 mm published	390 mm published	71.5 ° derived	73.5 ° derived	555 mm derived	425 mm derived	1024 mm published	610 mm published	74 mm derived	68.0 mm published	50 mm published	yellow
1 of 5 checks flagged — Trail Reconciliation shows 3.3mm discrepancy
M/L	585 mm published	395 mm published	71.5 ° derived	73.5 ° derived	568 mm derived	425 mm derived	1037 mm published	623 mm published	71 mm derived	68.0 mm published	50 mm published	yellow
2 of 5 checks flagged — Stack Reconciliation shows 2.6mm discrepancy
S	557 mm published	373 mm published	71.0 ° derived	74.0 ° derived	532 mm derived	425 mm derived	1009 mm published	596 mm published	78 mm derived	71.0 mm published	50 mm published	yellow
1 of 5 checks flagged — Trail Reconciliation shows 3mm discrepancy
XL	640 mm published	415 mm published	72.0 ° derived	73.0 ° derived	610 mm derived	425 mm derived	1073 mm published	657 mm published	68 mm derived	64.0 mm published	50 mm published	yellow
1 of 5 checks flagged — Trail Reconciliation shows 2.5mm discrepancy
XS	553 mm published	364 mm published	70.0 ° derived	74.5 ° derived	517 mm derived	425 mm derived	1008 mm published	596 mm published	78 mm derived	78.0 mm published	50 mm published	yellow
1 of 5 checks flagged — Trail Reconciliation shows 3.5mm discrepancy

Audit context

Overall consistency: red. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Litespeed Ultimate G2 / FI geometry specification shows strong internal consistency across reach, wheelbase, and front center, with all six sizes reconciling within ±1mm engineering tolerance. Size L exhibits a 9.9mm significant data inaccuracy in the published stack value — the published stack of 615mm is inflated relative to what the other published geometry parameters imply. Trail shows systematic discrepancies ranging from 2.5mm to 3.5mm across all sizes, classified as data inaccuracies in the published trail values.
