Litespeed Coll Dels Reis 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

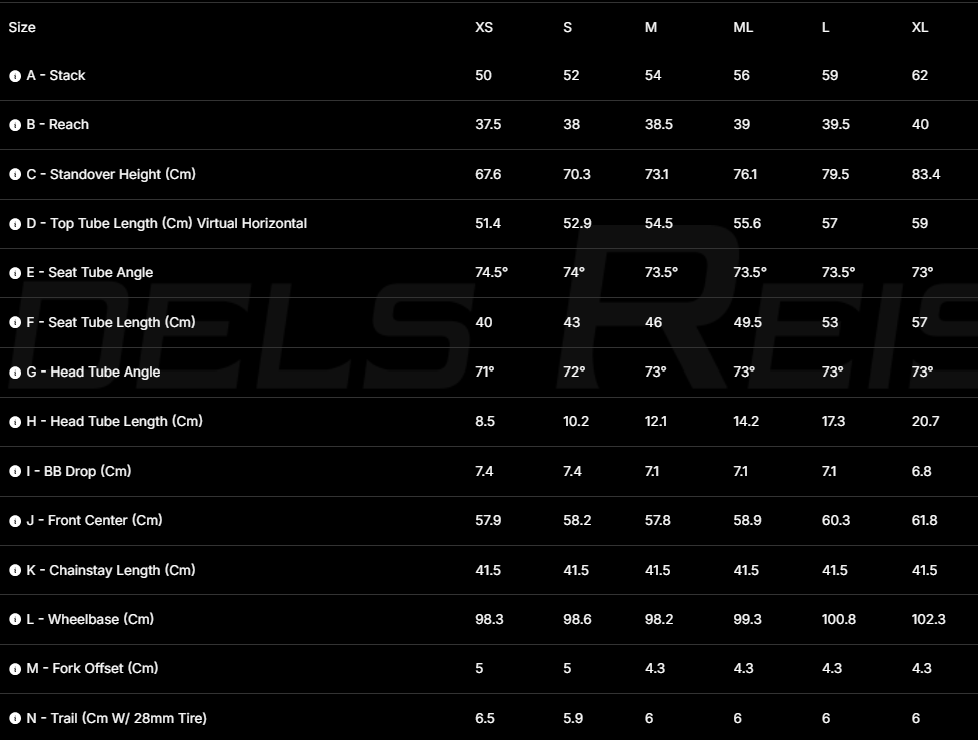

Litespeed Coll Dels Reis 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
L 590 mm published395 mm published73.0 ° derived73.5 ° derived570 mm derived415 mm derived1008 mm published603 mm published71 mm derived60.0 mm published43 mm published green
All 5 consistency checks passed
M 540 mm published385 mm published73.0 ° derived73.5 ° derived545 mm derived415 mm derived982 mm published578 mm published71 mm derived60.0 mm published43 mm published green
All 5 consistency checks passed
ML 560 mm published390 mm published73.0 ° derived73.5 ° derived556 mm derived415 mm derived993 mm published589 mm published71 mm derived60.0 mm published43 mm published green
All 5 consistency checks passed
S 520 mm published380 mm published72.0 ° derived74.0 ° derived529 mm derived415 mm derived986 mm published582 mm published74 mm derived59.0 mm published50 mm published green
All 5 consistency checks passed
XL 620 mm published400 mm published73.0 ° derived73.0 ° derived590 mm derived415 mm derived1023 mm published618 mm published68 mm derived60.0 mm published43 mm published green
All 5 consistency checks passed
XS 500 mm published375 mm published71.0 ° derived74.5 ° derived514 mm derived415 mm derived983 mm published579 mm published74 mm derived65.0 mm published50 mm published green
All 5 consistency checks passed

Audit context

Overall consistency: green. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Litespeed Coll Dels Reis published geometry reconciles within ±1mm engineering tolerance across all six sizes for stack, reach, wheelbase, front center, and trail. The engine refined fork axle-to-crown length to 382.9mm via two-pass consensus to optimize stack reconciliation. The manufacturer's intentional use of per-size fork offsets (50mm on XS/S, 43mm on M/ML/L/XL) maintains consistent handling characteristics across the head tube angle range and produces the expected front center non-progression between sizes S and M.
