Litespeed Spezia / FI 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

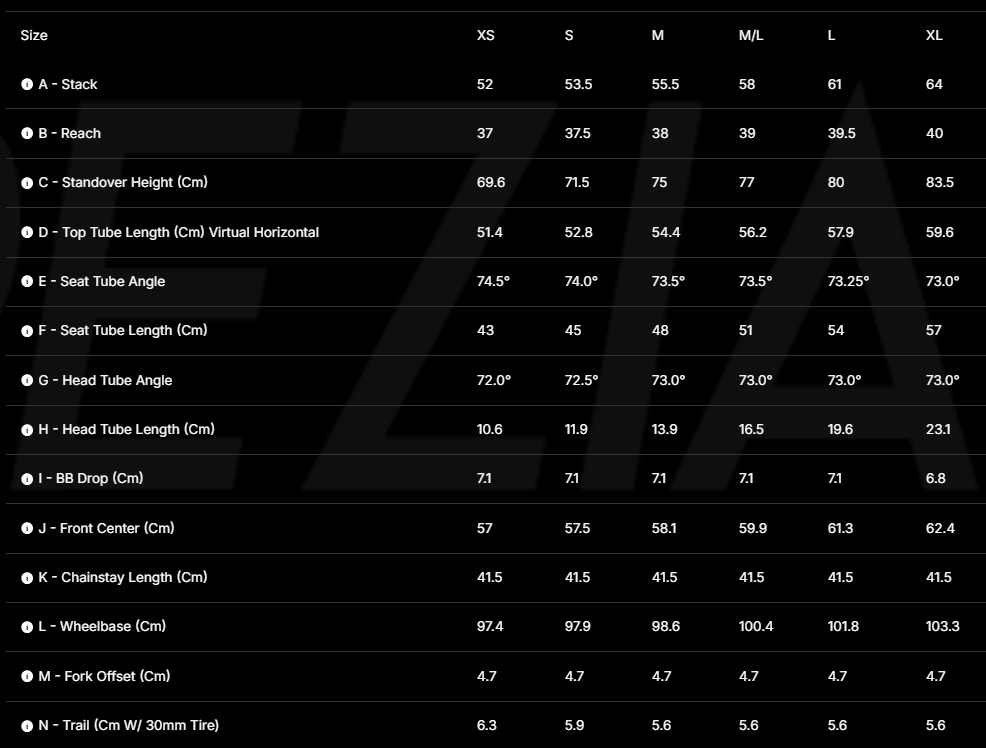

Litespeed Spezia / FI 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
L 610 mm published395 mm published73.0 ° derived73.3 ° derived579 mm derived415 mm derived1018 mm published613 mm published71 mm derived56.0 mm published47 mm published green
All 5 consistency checks passed
M 555 mm published380 mm published73.0 ° derived73.5 ° derived544 mm derived415 mm derived986 mm published581 mm published71 mm derived56.0 mm published47 mm published green
All 5 consistency checks passed
M/L 580 mm published390 mm published73.0 ° derived73.5 ° derived562 mm derived415 mm derived1004 mm published599 mm published71 mm derived56.0 mm published47 mm published green
All 5 consistency checks passed
S 535 mm published375 mm published72.5 ° derived74.0 ° derived528 mm derived415 mm derived979 mm published575 mm published71 mm derived59.0 mm published47 mm published green
All 5 consistency checks passed
XL 640 mm published400 mm published73.0 ° derived73.0 ° derived596 mm derived415 mm derived1033 mm published624 mm published68 mm derived56.0 mm published47 mm published yellow
1 of 5 checks flagged — Front Center Reconciliation shows 4mm discrepancy
XS 520 mm published370 mm published72.0 ° derived74.5 ° derived514 mm derived415 mm derived974 mm published570 mm published71 mm derived63.0 mm published47 mm published green
All 5 consistency checks passed

Audit context

Overall consistency: yellow. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Litespeed Spezia / FI geometry specification reconciles within ±1mm engineering tolerance across all checks for sizes XS through L. Size XL shows a 4.0mm data inaccuracy in the published front center value, while all other metrics on XL reconcile within tolerance. The RideDNA Geometry Engine reconciliation checks confirm internal geometric consistency across sizes XS–L; size XL shows a 3.9mm fork offset residual and a 3.3mm chainstay length residual, both reflecting the same front center discrepancy flagged in the main audit.
