Salsa Warroad 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

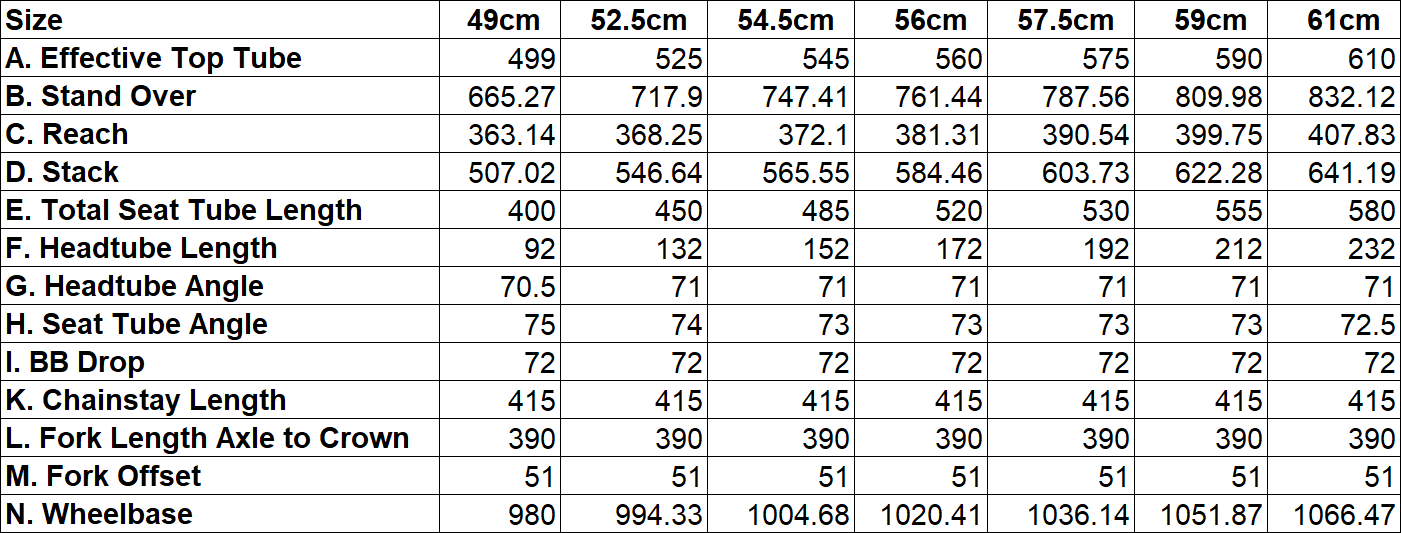

Salsa Warroad 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
49cm 507 mm published363 mm published70.5 ° derived75.0 ° derived499 mm derived415 mm derived980 mm published576 mm derived72 mm derived67.4 mm derived51 mm published yellow
1 of 3 checks flagged — Stack Reconciliation shows 2.3mm discrepancy
52.5cm 547 mm published368 mm published71.0 ° derived74.0 ° derived525 mm derived415 mm derived994 mm published590 mm derived72 mm derived64.2 mm derived51 mm published yellow
1 of 3 checks flagged — Stack Reconciliation shows 2.4mm discrepancy
54.5cm 566 mm published372 mm published71.0 ° derived73.0 ° derived545 mm derived415 mm derived1005 mm published600 mm derived72 mm derived64.2 mm derived51 mm published yellow
1 of 3 checks flagged — Stack Reconciliation shows 2.4mm discrepancy
56cm 584 mm published381 mm published71.0 ° derived73.0 ° derived560 mm derived415 mm derived1020 mm published616 mm derived72 mm derived64.2 mm derived51 mm published yellow
1 of 3 checks flagged — Stack Reconciliation shows 2.3mm discrepancy
57.5cm 604 mm published391 mm published71.0 ° derived73.0 ° derived575 mm derived415 mm derived1036 mm published632 mm derived72 mm derived64.2 mm derived51 mm published green
All 3 consistency checks passed
59cm 622 mm published400 mm published71.0 ° derived73.0 ° derived590 mm derived415 mm derived1052 mm published647 mm derived72 mm derived64.2 mm derived51 mm published yellow
1 of 3 checks flagged — Stack Reconciliation shows 2.3mm discrepancy
61cm 641 mm published408 mm published71.0 ° derived72.5 ° derived610 mm derived415 mm derived1066 mm published662 mm derived72 mm derived64.2 mm derived51 mm published yellow
1 of 3 checks flagged — Stack Reconciliation shows 2.3mm discrepancy

Audit context

Overall consistency: yellow. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Salsa Warroad geometry shows systematic stack discrepancies of 2.3–2.4mm across six of seven sizes (49cm, 52.5cm, 54.5cm, 56cm, 59cm, 61cm), with size 57.5cm reconciling within ±1mm engineering tolerance. Reach and wheelbase reconcile within ±1mm engineering tolerance across all seven sizes. The RideDNA Geometry Engine reconciliation analysis identifies a stack mispublishing pattern: the published stack values appear deflated by approximately 2.4mm relative to what the other published geometry parameters imply, with the same residual appearing in both the head tube length and fork A2C back-calculations. An unusually large seat tube angle step of 1.0° between adjacent sizes (49cm→52.5cm and 52.5cm→54.5cm) warrants verification, though the root cause cannot be determined from the published geometry data alone.
