Salsa Warbird 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

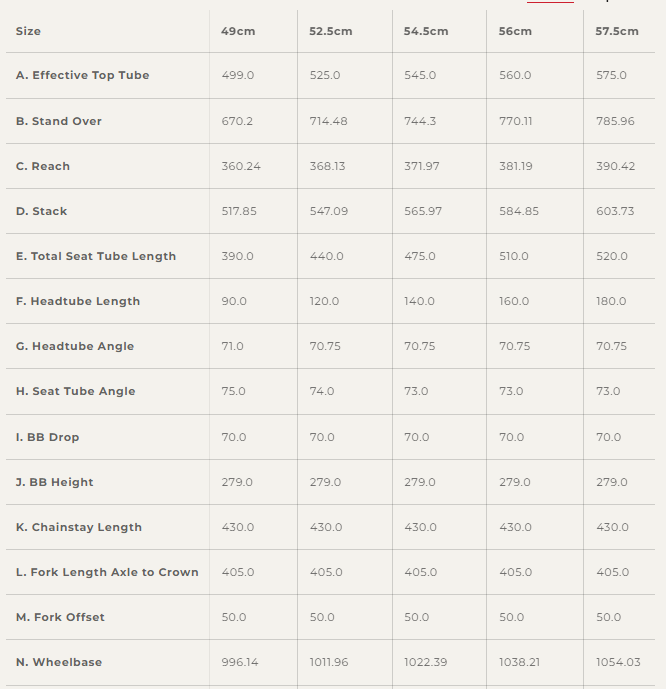

Salsa Warbird 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
49cm 518 mm published360 mm published71.0 ° derived75.0 ° derived499 mm derived430 mm derived996 mm published572 mm derived70 mm derived65.2 mm derived50 mm published yellow
2 of 3 checks flagged — Stack Reconciliation shows 3.9mm discrepancy
52.5cm 547 mm published368 mm published70.8 ° derived74.0 ° derived525 mm derived430 mm derived1012 mm published592 mm derived70 mm derived66.8 mm derived50 mm published yellow
1 of 3 checks flagged — Stack Reconciliation shows 2.1mm discrepancy
54.5cm 566 mm published372 mm published70.8 ° derived73.0 ° derived545 mm derived430 mm derived1022 mm published602 mm derived70 mm derived66.8 mm derived50 mm published yellow
1 of 3 checks flagged — Stack Reconciliation shows 2mm discrepancy
56cm 585 mm published381 mm published70.8 ° derived73.0 ° derived560 mm derived430 mm derived1038 mm published618 mm derived70 mm derived66.8 mm derived50 mm published yellow
1 of 3 checks flagged — Stack Reconciliation shows 2mm discrepancy
57.5cm 604 mm published390 mm published70.8 ° derived73.0 ° derived575 mm derived430 mm derived1054 mm published634 mm derived70 mm derived66.8 mm derived50 mm published yellow
1 of 3 checks flagged — Stack Reconciliation shows 2.1mm discrepancy

Audit context

Overall consistency: yellow. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Salsa Warbird geometry shows systematic stack discrepancies across all five sizes, with published values consistently 2.0–3.9mm below the engine's forward-model calculations. Reach reconciles within ±1mm engineering tolerance across all sizes. Wheelbase reconciles within tolerance on four sizes (52.5cm–57.5cm); the 49cm size shows a 4.2mm data inaccuracy in the published value. The seat tube angle progression shows unusually large single-step changes of 1.0° between adjacent sizes (49cm→52.5cm and 52.5cm→54.5cm), which may indicate transcription anomalies — verification of the affected sizes is recommended.
