Salsa Journeyer 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

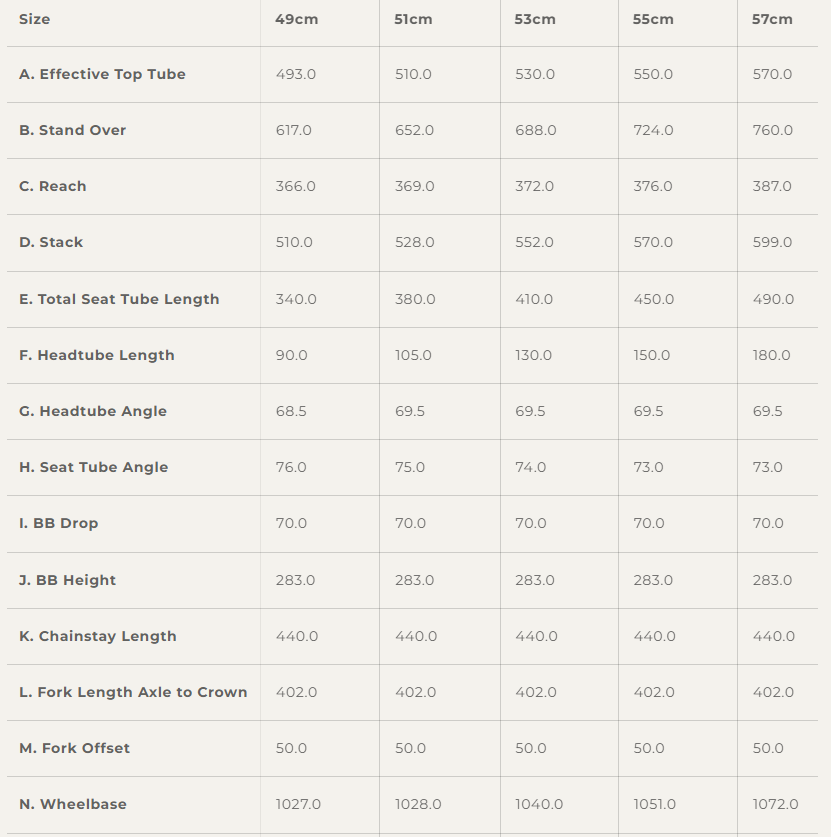

Salsa Journeyer 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
49cm 510 mm published366 mm published68.5 ° derived76.0 ° derived493 mm derived440 mm derived1027 mm published597 mm derived70 mm derived85.3 mm derived50 mm published green
All 3 consistency checks passed
51cm 528 mm published369 mm published69.5 ° derived75.0 ° derived510 mm derived440 mm derived1028 mm published597 mm derived70 mm derived78.6 mm derived50 mm published green
All 3 consistency checks passed
53cm 552 mm published372 mm published69.5 ° derived74.0 ° derived530 mm derived440 mm derived1040 mm published609 mm derived70 mm derived78.6 mm derived50 mm published green
All 3 consistency checks passed
55cm 570 mm published376 mm published69.5 ° derived73.0 ° derived550 mm derived440 mm derived1051 mm published620 mm derived70 mm derived78.6 mm derived50 mm published green
All 3 consistency checks passed
57cm 599 mm published387 mm published69.5 ° derived73.0 ° derived570 mm derived440 mm derived1072 mm published642 mm derived70 mm derived78.6 mm derived50 mm published green
All 3 consistency checks passed

Audit context

Overall consistency: green. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Salsa Journeyer gravel geometry reconciles within ±1mm engineering tolerance across all five sizes for stack, reach, and wheelbase. The manufacturer's published specification is internally consistent with the RideDNA engine's forward-model calculations. Seat tube angle shows unusually large single-step changes of 1.0° between adjacent sizes (49cm→51cm, 51cm→53cm, 53cm→55cm) — while STA normally decreases as frame size increases, jumps of this magnitude warrant verification, though the root cause cannot be determined from the published geometry data alone.
